What are Spring Channel Nuts?

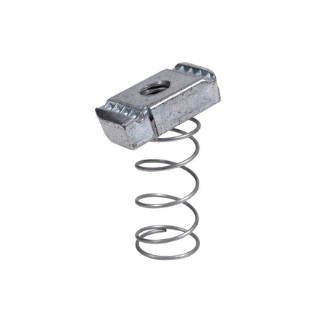

Spring channel nuts (often called spring nuts or strut nuts) are toothed, rectangular nuts with an attached coil spring that hold the nut in position inside a slotted strut channel while you thread in a bolt or threaded rod. The teeth bite into the channel lips to create a secure, adjustable connection for Unistrut-style framing.
Which spring channel nut size do I need?
Choose your nut by three factors:
- Thread size — match the bolt or threaded rod (e.g., common inch threads such as 1/4-20, 3/8-16, 1/2-13).
- Channel series — standard nuts are made to fit common Unistrut-style slotted channels.
- Spring length — pick the spring that properly “preloads” the nut in the channel depth so it stays in place for one-handed assembly.
Tip: If a nut spins or won’t seat under the lips, recheck that the thread size and spring style match the channel and hardware.
How do you install a spring channel nut?
- Compress the coil spring and insert the nut diagonally into the channel slot.
- Rotate the nut 90° so the teeth align under the channel lips and release the spring to hold it in place.
- Start the bolt or threaded rod and tighten to the specified torque.
When should I choose stainless steel 316 channel nuts?
Use 316 stainless in harsh or chloride-rich environments (coastal air, de-icing salts, wash-down, and many chemical or marine settings). 316 offers enhanced pitting and crevice-corrosion resistance for long service life.
Short-spring vs. long-spring channel nuts, what’s the difference?
- Short-spring: Suited for shallow channels or where you need more insertion clearance.
- Long-spring: Holds the nut higher in deeper channels, making one-handed placement faster overhead or on vertical runs.
Are spring channel nuts compatible with Unistrut-style framing?
Yes. These nuts are designed for standard slotted strut channels used in Unistrut-style systems. Verify the channel series and thread size in your bill of materials before ordering.
Can spring channel nuts be used outdoors or in wash-down areas?
Stainless steel spring nuts are ideal for outdoor, sanitary, and wet environments. For aggressive exposure, choose 316 for added corrosion resistance.
Spring Channel Nuts FAQ
Quick answers to the most asked questions about spring channel nuts.

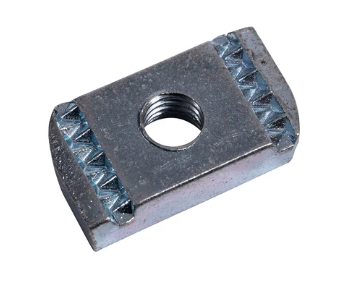

Do I need the spring, or can I use a plain channel nut?
The spring isn’t part of the structural capacity—it simply holds the nut in place for faster assembly. Use a plain channel nut where the spring isn’t needed or space is tight.
What torque should I use when tightening?
Follow the project spec or hardware manufacturer’s torque chart for the bolt size and grade. Over-tightening can deform the channel lips.
Will one nut work in all channel depths?
No. Select the spring length that matches the channel depth so the nut seats firmly under both lips and doesn’t rattle during assembly.
Are these suitable for electrical, mechanical, and solar frames?
Yes, spring channel nuts are widely used across electrical supports, mechanical piping, HVAC, racking, and solar mounting where adjustable, repeatable connections are required.
