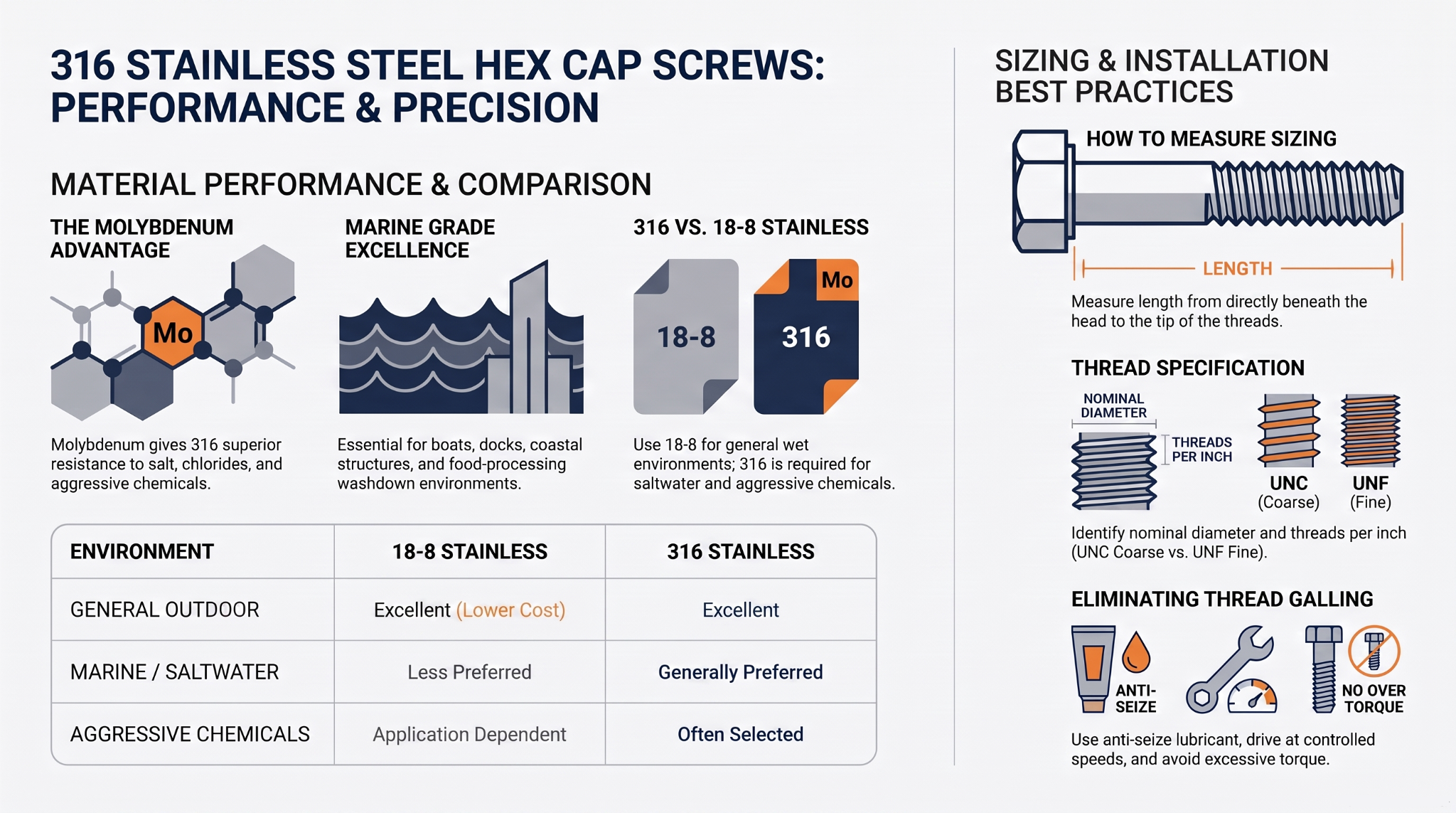

Why Choose 316 Stainless Steel Hex Cap Screws?
316 stainless steel hex cap screws are corrosion-resistant threaded fasteners designed for applications where moisture, salt, chlorides, or other aggressive environmental conditions are a concern. Their six-sided heads are installed with a wrench or socket, and they can be used with a compatible nut or in a properly threaded tapped hole.
316 stainless steel contains molybdenum in addition to chromium and nickel, giving it increased resistance to chloride-related corrosion compared with common 18-8 stainless steels. This makes 316 stainless steel hex cap screws particularly useful for marine, coastal, saltwater, washdown, chemical, and other corrosion-sensitive applications.
What Is 316 Stainless Steel?
316 stainless steel is an austenitic stainless steel alloy known for its strong corrosion resistance, particularly in environments containing chlorides and salt. The addition of molybdenum helps improve resistance to localized corrosion compared with many common 18-8 stainless grades.
Because of these properties, 316 stainless steel is frequently selected for fasteners used around boats, docks, coastal structures, food-processing equipment, washdown environments, chemical equipment, and other applications where corrosion resistance is a major concern.
Why Use 316 Stainless Steel in Marine and Coastal Environments?
Saltwater and coastal environments expose fasteners to chlorides that can accelerate corrosion. While many stainless steels provide good general corrosion resistance, 316 stainless steel offers increased resistance to chloride-related attack and is commonly selected for more demanding marine and coastal applications.
316 stainless steel hex cap screws are often used for:
- Boats and marine equipment
- Docks, piers, and waterfront structures
- Coastal construction and outdoor fixtures
- Saltwater-exposed equipment
- Food-processing and washdown equipment
- Chemical and pharmaceutical equipment
- Industrial machinery in corrosive environments
Actual suitability depends on the complete environment, mating materials, temperature, chemical exposure, mechanical requirements, and project specifications.
316 vs. 18-8 Stainless Steel Hex Cap Screws
Both 18-8 and 316 stainless steel provide corrosion resistance, but 316 is generally selected when the environment includes greater exposure to salt, chlorides, or aggressive chemicals.
| Feature | 18-8 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| General corrosion resistance | Excellent for many indoor and outdoor applications | Excellent |
| Freshwater environments | Commonly used | Commonly used |
| Saltwater and marine exposure | Less preferred for significant chloride exposure | Generally preferred |
| Coastal environments | May be suitable depending on exposure | Often preferred |
| Chemical and washdown environments | Application dependent | Often selected for more demanding exposure |
| Relative cost | Generally lower | Generally higher |
For general-purpose corrosion-resistant fastening where significant salt or chloride exposure is not expected, compare our 18-8 Stainless Steel Hex Cap Screws.
Common Applications for 316 Stainless Steel Hex Cap Screws
316 stainless steel hex cap screws are commonly selected for assemblies where both mechanical fastening and increased corrosion resistance are required.
- Marine and boat construction
- Docks, piers, and waterfront hardware
- Coastal infrastructure
- Outdoor machinery and equipment
- Chemical-processing equipment
- Food-processing and washdown equipment
- Pharmaceutical and laboratory equipment
- Industrial equipment exposed to moisture or corrosive conditions
- Railings, brackets, frames, and other corrosion-resistant assemblies
For structural, engineered, or safety-critical applications, verify the required mechanical properties, dimensional standard, material requirements, and project specifications before selecting a fastener.
ASME B18.2.1 Hex Cap Screw Dimensions
The 316 stainless steel hex cap screws in this category are specified to ASME B18.2.1. This standard establishes dimensional requirements for inch-series square and hex bolts and screws, including dimensional characteristics applicable to hex cap screws.
When replacing an existing fastener or working from an engineering drawing, verify the required diameter, thread series, length, head dimensions, thread length, and other dimensional requirements in addition to the stainless steel material.
ASME B18.2.1 is a dimensional standard. It should not be interpreted by itself as specifying the complete material, mechanical-property, or application requirements of the fastener.
How Are 316 Stainless Steel Hex Cap Screws Sized?
316 stainless steel hex cap screws are typically specified by diameter, threads per inch, and length. For example, a 1/2"-13 x 3" hex cap screw has a nominal diameter of 1/2", 13 threads per inch, and a length of 3".
Fastener length is generally measured from beneath the hex head to the end of the screw.
Albany County Fasteners carries 316 stainless steel hex cap screws in a broad range of diameters and thread pitches, including coarse and fine thread options.
Coarse vs. Fine Thread 316 Stainless Steel Hex Cap Screws
316 stainless steel hex cap screws are available in different thread series depending on the diameter and product size.
- UNC coarse thread: Commonly used for general-purpose fastening and has fewer threads per inch.
- UNF fine thread: Has more threads per inch and may be specified for applications requiring a particular thread engagement, adjustment, or mating thread.
The hex cap screw and mating nut or tapped hole must always use the same nominal diameter and thread series.
Fully Threaded vs. Partially Threaded 316 Hex Cap Screws
316 stainless steel hex cap screws may be fully or partially threaded depending on the fastener diameter, length, and applicable dimensional requirements.
A partially threaded hex cap screw has an unthreaded shank beneath the head. The unthreaded portion can pass through the joined materials while the threaded end engages a nut or tapped hole.
When threading is required along most or all of the available shank length, a fully threaded hex fastener such as a tap bolt may be more appropriate.
Browse additional options in our Stainless Steel Hex Bolts category.
316 Stainless Steel Hex Cap Screws vs. Hex Bolts
The terms hex cap screw and hex bolt are often used interchangeably in commercial purchasing, but applicable dimensional standards can distinguish between specific fastener designs.
The products on this page are hex cap screws manufactured to the dimensional requirements identified in their specifications. When matching an existing fastener, use the required dimensional standard, diameter, thread, length, material, and mechanical requirements rather than relying solely on the general term "hex bolt."
316 Stainless Steel vs. Carbon Steel Bolts
316 stainless steel is primarily selected for its corrosion resistance. Carbon and alloy steel bolts may be available in defined strength grades that provide different mechanical properties.
Do not substitute a 316 stainless steel hex cap screw for a specified Grade 5, Grade 8, structural bolt, or other strength-rated fastener based only on diameter or appearance. Verify the required tensile strength, yield strength, material specification, and engineering requirements for the connection.
Preventing Galling on 316 Stainless Steel Hex Cap Screws
Like other stainless steel threaded fasteners, 316 stainless steel hex cap screws can experience galling. Galling occurs when friction and pressure between mating stainless threads cause the surfaces to bind or seize.
To help reduce galling:
- Keep mating threads clean and undamaged
- Avoid unnecessarily high installation speeds
- Use controlled installation torque
- Consider a compatible anti-seize compound or lubricant when appropriate
- Avoid forcing a fastener that begins to bind
Lubrication changes the relationship between torque and clamp load. For engineered or torque-critical connections, follow the specified installation procedure.
How to Choose the Right 316 Stainless Steel Hex Cap Screw
When selecting a 316 stainless steel hex cap screw, consider:
- Diameter: Match the required hole, nut, or tapped thread.
- Thread series: Verify whether UNC coarse or UNF fine thread is required.
- Length: Select sufficient length for the material thickness and required thread engagement.
- Thread length: Confirm whether a fully or partially threaded fastener is needed.
- Environment: Evaluate salt, moisture, chloride, chemical, and temperature exposure.
- Mechanical requirements: Verify required strength and applicable project specifications.
- Mating hardware: Select compatible nuts and washers with the proper diameter, thread, and material.
Matching Stainless Steel Nuts and Washers
Use nuts and washers that match the required fastener diameter, thread, material compatibility, mechanical requirements, and environmental conditions.
Shop Hex Nuts and Flat Washers to complete your stainless fastening assembly.
To compare additional stainless hex fasteners, browse our Stainless Steel Hex Bolts category.
For hex bolts and cap screws in additional materials and grades, browse our Hex Bolts category.
Frequently Asked Questions About 316 Stainless Steel Hex Cap Screws
What are 316 stainless steel hex cap screws?
316 stainless steel hex cap screws are corrosion-resistant threaded fasteners with six-sided heads manufactured from 316 stainless steel. They are commonly selected for marine, coastal, chemical, washdown, and other applications requiring increased resistance to corrosive environments.
What makes 316 stainless steel different from 18-8 stainless?
316 stainless steel contains molybdenum, which increases resistance to chloride-related corrosion compared with common 18-8 stainless steels. This is one reason 316 is widely selected for marine and coastal applications.
Are 316 stainless steel hex cap screws marine grade?
316 stainless steel is commonly referred to as marine-grade stainless because of its increased resistance to salt and chloride exposure. Suitability still depends on the specific marine environment, mechanical requirements, mating materials, and project specifications.
Can 316 stainless steel hex cap screws be used in saltwater?
316 stainless steel is commonly selected for saltwater and coastal applications because it offers increased resistance to chloride-related corrosion. No stainless steel is completely immune to corrosion, so the specific exposure conditions should still be evaluated.
Is 316 stainless steel stronger than 18-8 stainless?
The primary advantage of 316 stainless steel over common 18-8 stainless grades is increased corrosion resistance in chloride-rich environments, not simply greater strength. Mechanical properties depend on the exact fastener material and specification.
Are 316 stainless steel bolts stronger than Grade 8 bolts?
316 stainless steel and Grade 8 alloy steel are different fastener material systems with different mechanical-property requirements. They should not be treated as interchangeable. Use the specified tensile, yield, material, and engineering requirements when selecting a strength-critical fastener.
What does ASME B18.2.1 mean?
ASME B18.2.1 is a dimensional standard covering inch-series square and hex bolts and screws. For these hex cap screws, it establishes applicable dimensional requirements such as fastener geometry and dimensions. It does not by itself specify every material or mechanical property requirement.
How are 316 stainless steel hex cap screws measured?
Hex cap screw length is generally measured from beneath the head to the end of the fastener. Diameter is measured across the threaded body, and the thread designation identifies the number of threads per inch for inch-series fasteners.
Can 316 stainless steel hex cap screws be used outdoors?
Yes. 316 stainless steel is commonly used for outdoor applications, particularly where moisture, salt, or chloride exposure is significant. Material selection should still reflect the specific environmental and mechanical requirements.
Why do 316 stainless steel fasteners gall?
Galling is caused by friction and adhesive wear between mating stainless steel threads. Controlled installation speed, clean threads, appropriate torque, and compatible anti-seize or lubricant when suitable can help reduce the risk.
Can 316 stainless steel hex cap screws be used with stainless steel nuts?
Yes. Compatible stainless steel nuts are commonly used with 316 stainless steel hex cap screws. The nut must match the diameter and thread pitch, and the material selection should meet the corrosion and mechanical requirements of the assembly.
When should I choose 316 instead of 18-8 stainless steel?
Choose 316 stainless steel when the application involves significant marine, saltwater, coastal, chloride, chemical, or other aggressive corrosion exposure. For less demanding general-purpose environments, 18-8 stainless steel may provide the required corrosion resistance at a lower cost.
