Why Choose Shallow Embedment Drop-In Anchors?
Shallow embedment drop-in anchors are useful when a concrete fastening application needs an internally threaded anchor point but the available embedment depth is limited. The shallow design helps create a threaded connection in solid concrete without using the deeper embedment required by many standard drop-in anchors.
This category includes shallow embedment drop-in anchors with lip in carbon steel, shallow embedment drop-in setting tools, and related zinc plated steel options. These anchors are commonly selected for concrete fastening where the installer needs a removable threaded connection and a reduced-depth anchor style.
Common Uses for Shallow Embedment Drop-In Anchors
Shallow embedment drop-in anchors are commonly used for fastening threaded rod, bolts, pipe hangers, conduit supports, ceiling attachments, light fixtures, brackets, panels, supports, and other hardware into solid concrete where shallow embedment is required.
They are often selected when the installed anchor needs to remain flush with the concrete surface or when the threaded fastener may need to be removed later. Confirm the anchor size, thread size, embedment depth, concrete condition, and load requirements before installation.
How Shallow Embedment Drop-In Anchors Work
Shallow embedment drop-in anchors are installed into a drilled hole in solid concrete. After the anchor is placed in the hole, a compatible setting tool is used to expand the internal plug, causing the anchor body to grip the concrete.
Proper installation matters. The hole should be drilled to the correct diameter and depth, cleaned before installation, and the anchor should be expanded with the correct setting tool. Always follow the manufacturer’s installation instructions for embedment, spacing, edge distance, and load requirements.
Shallow Embedment Drop-In Anchors vs Standard Drop-In Anchors
Shallow embedment drop-in anchors are designed for applications where reduced embedment depth is needed. Standard drop-in anchors are also internally threaded concrete anchors, but they may require a deeper drilled hole and longer embedment depending on the anchor size and style.
Choose shallow embedment drop-in anchors when the project calls for a lower-depth concrete anchor. Choose standard drop-in anchors when the application allows standard embedment and the anchor specifications match the load and installation requirements.

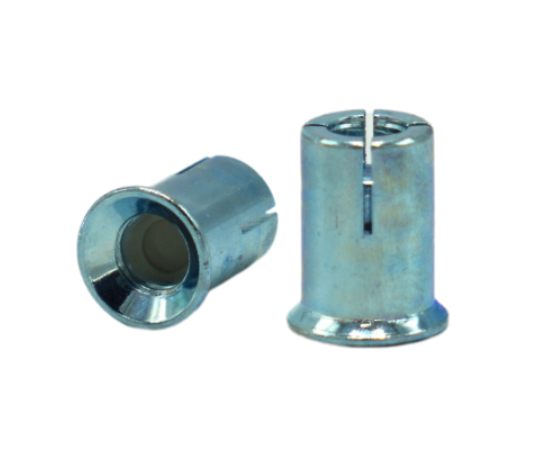

Shallow Embedment Drop-In Anchors with Lip
Shallow embedment drop-in anchors with lip are designed with a lip at the top of the anchor body. This lip can help position the anchor at the concrete surface during installation and can make the anchor easier to seat consistently in the drilled hole.
Confirm that the lip style works with the fixture, hole depth, and finished surface requirements before installation. The anchor should be seated properly so the threaded fastener can engage correctly after the anchor is set.
Shallow Embedment Drop-In Anchors vs Wedge Anchors
Shallow embedment drop-in anchors are internally threaded anchors installed flush inside concrete. They are commonly used when the application needs a removable bolt or threaded rod connection without a permanent stud protruding from the concrete surface.
Wedge anchors have a threaded stud that protrudes above the concrete surface after installation. They are often used when the fixture is placed over the anchor and secured with a nut and washer. Choose between shallow embedment drop-in anchors and wedge anchors based on whether the application needs an internal thread or a protruding threaded stud.
Shallow Embedment Drop-In Anchors vs Sleeve Anchors
Shallow embedment drop-in anchors are used in solid concrete to create an internally threaded anchor point. They are commonly used with bolts or threaded rod after the anchor has been set in the drilled hole.
Sleeve anchors can be used in concrete, brick, and block in many applications, depending on the anchor style and manufacturer instructions. Choose the anchor type based on the base material, fixture style, thread requirement, installation method, and whether the application calls for a flush internal thread or a sleeve-style expansion anchor.
Carbon Steel and Zinc Plated Shallow Embedment Drop-In Options
Shallow embedment drop-in anchors with lip are available in carbon steel, and related zinc plated steel options may be used when a plated finish is suitable for the application. These anchors are commonly selected for dry indoor or less corrosive concrete fastening.
For damp, outdoor, coastal, chemical, or corrosion-sensitive applications, compare stainless steel or other corrosion-resistant anchor options when available. Choose the anchor material and finish based on the environment, exposure level, mating fastener, and project requirements.
Shallow Embedment Drop-In Anchor Setting Tools
Shallow embedment drop-in anchors require a compatible setting tool to expand the anchor correctly inside the drilled hole. The setting tool helps drive the internal plug to the proper position so the anchor can grip the concrete.
Use the setting tool that matches the shallow embedment drop-in anchor size and style. Without the correct setting tool, the anchor may not expand properly, which can affect holding performance and installation reliability.
How to Choose the Right Shallow Embedment Drop-In Anchor
Choose the shallow embedment drop-in anchor based on the base material, anchor diameter, internal thread size, bolt or rod size, embedment depth, material, finish, exposure environment, and load requirements. Shallow embedment drop-in anchors are intended for solid concrete, so confirm the base material before installation.
After confirming the anchor size and thread requirement, choose a shallow embedment drop-in anchor when the application needs a reduced embedment depth and a flush internal thread. For standard embedment concrete applications, compare standard drop-in anchors. For direct fixture fastening into masonry, compare sleeve anchors.
Related Anchor Categories
Browse related anchor categories to compare shallow embedment drop-in anchors, standard drop-in anchors, machine screw anchors, single expansion anchors, double expansion shield anchors, wedge anchors, sleeve anchors, concrete screws, and other concrete fastening options.
- Anchors
- Shallow Embedment Drop-In Anchors
- Zinc Plated Steel Shallow Embedment Drop-In Anchors
- Drop-In Anchors
- Machine Screw Anchors
- Single Expansion Anchors
- Double Expansion Shield Anchors
- Wedge Anchors
- Sleeve Anchors
- Concrete Screws
Shallow Embedment Drop-In Anchor FAQs
What are shallow embedment drop-in anchors?
Shallow embedment drop-in anchors are internally threaded concrete anchors designed to create a flush threaded anchor point in solid concrete where reduced embedment depth is needed.
When should I use shallow embedment drop-in anchors?
Use shallow embedment drop-in anchors when the application needs an internal thread in solid concrete, a flush anchor point, a removable threaded fastener connection, and a shorter embedment depth than a standard drop-in anchor may require.
What is the difference between shallow embedment drop-in anchors and standard drop-in anchors?
Shallow embedment drop-in anchors are designed for reduced embedment depth. Standard drop-in anchors are also internally threaded concrete anchors but may require deeper embedment depending on the anchor size and style.
Can shallow embedment drop-in anchors be used in brick or block?
Shallow embedment drop-in anchors are intended for solid concrete. For brick, block, or hollow masonry applications, compare sleeve anchors, masonry screws, or other anchors designed for the specific base material.
Do shallow embedment drop-in anchors need a setting tool?
Yes, shallow embedment drop-in anchors require a compatible setting tool to expand the anchor correctly inside the drilled hole. Use the setting tool that matches the anchor size and style.
What is the difference between shallow embedment drop-in anchors and wedge anchors?
Shallow embedment drop-in anchors are internally threaded and sit flush in the concrete. Wedge anchors have a threaded stud that protrudes above the concrete surface and are secured with a nut and washer.
Are shallow embedment drop-in anchors removable?
The bolt or threaded rod can usually be removed and reinstalled, while the anchor remains set in the concrete. The installed anchor itself is not typically removed for repeated reuse.
How do I choose the right shallow embedment drop-in anchor?
Choose the anchor based on the base material, internal thread size, anchor diameter, bolt or rod size, embedment depth, material, finish, exposure environment, and load requirements.
