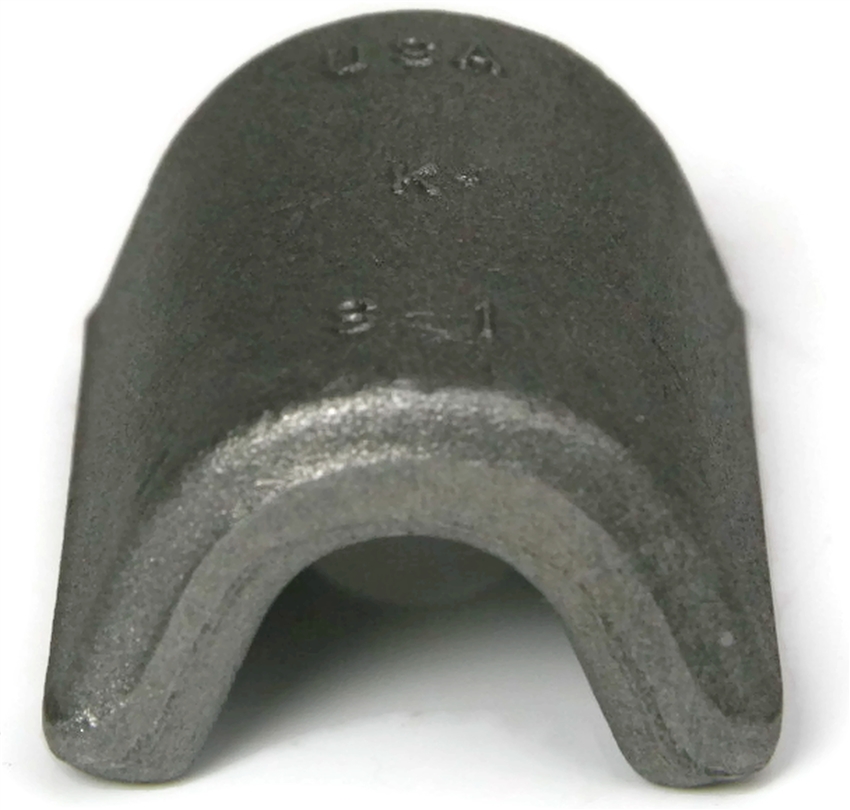

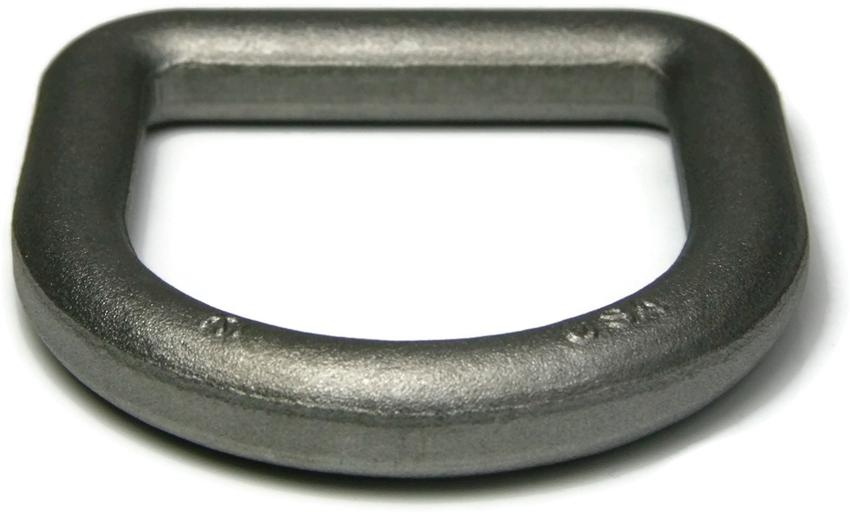

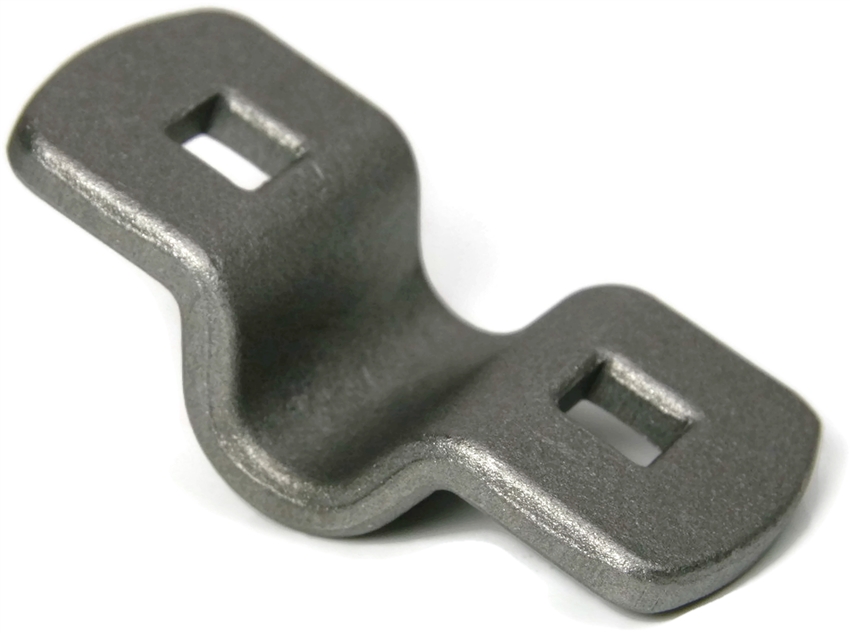

What are D-Rings and Clips?
D-rings and clips create rated tie points for slings, chains, and straps on trailers, skids, and fabricated fixtures. Our options are USA made by Ken Forging and drop forged for durability.
Weld-on vs bolt-on
- Weld-on: Permanent anchor for steel structures. Ideal for rigging points on fixtures and frames.
- Bolt-on: Fast install where welding is not possible. Use graded fasteners and torque to spec.
How to size your D-Ring or Clip
- Working Load Limit: Pick a WLL that meets or exceeds your maximum expected load.
- Opening size: Ensure clearance for your shackle pin, hook, or strap hardware.
- Orientation: Plan for straight pulls that do not twist or bind the ring.
Installation tips
- For weld-on parts, clean to bright metal and follow qualified weld procedures sized for the listed WLL.
- For bolt-on clips, use proper grade bolts, washers, and nuts. Re-torque after first load.
FAQs about D-Rings and Clips
-
Are your D-rings rated for lifting?
Select products marked with a Working Load Limit for lifting. Always follow the rating on the part and use compatible shackles or hooks.
-
How do I weld a D-ring correctly?
Prepare clean base metal, position for in-line loading, and use a qualified procedure sized to the required strength. Inspect the weld and ring before use.
-
When should I choose bolt-on instead of weld-on?
Choose bolt-on where welding is restricted or when you need a removable anchor point.
