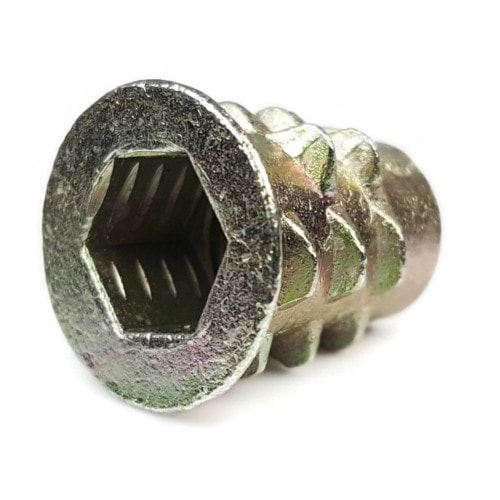

Flange Hex Drive Inserts

When does the flange earn its place?

Whenever consistency matters more than a clean surface. Driving flush inserts to a uniform depth by eye is harder than it sounds: a couple of extra turns in soft grain sinks one below the surface, a knot stops another proud, and on a run of twenty the variation shows. A flange removes the judgment entirely, because the insert stops when the collar lands. That makes it the practical choice for production runs, for anyone installing inserts for the first time, and for joints where the mating part sits directly on the insert and needs a flat, consistent seat. The tradeoff is that the collar remains visible and stands slightly proud, so on a finished visible surface a flush insert looks better.

Why choose flange hex drive inserts

• Collar sets a consistent installation depth across every insert in a run
• Flat bearing surface for the mating part to seat against
• Harder to overdrive, since the flange stops the insert positively
• Hex socket drives cleanly without camming out under load
• Available in inch and metric threads for mixed hardware

Sizes stocked

• Inch including #8-32, #10-24, #10-32, 1/4-20, 5/16-18, and 3/8-16
• Metric including M6-1.0, M8-1.25, and M10-1.5
• Lengths from 0.394 inch through 0.984 inch depending on thread size
• Choose a longer insert for softer wood and higher pull-out load

Common applications

• Knockdown furniture and repeated assembly joints
• Bed rails, table legs, and bench hardware
• Speaker cabinets and equipment enclosures
• Jigs and fixtures where a flat mounting face matters
• Production furniture runs needing consistent insert height
• Plywood and MDF panels where wood screws would strip

Where the insert must not protrude, use flush hex drive inserts instead. For corrosion resistance in damp conditions, our brass wood inserts are the better material.
