Why Choose 410 Stainless Steel Self Drilling Screws?
410 stainless steel self drilling screws are useful when an application needs a screw that can drill and fasten in one step. The 410 stainless steel construction can be hardened, making it a practical choice for self drilling screws that need a functional drill point.
These screws are commonly selected for sheet metal and light-gauge fastening where a separate pilot hole may not be needed. They offer corrosion resistance for many applications, but they are often chosen more for hardness and drilling performance than maximum corrosion resistance.
Common Uses for 410 Stainless Steel Self Drilling Screws
410 stainless steel self drilling screws are commonly used for sheet metal panels, brackets, covers, fixtures, enclosures, HVAC work, appliance repair, light-gauge metal, and general maintenance applications.
For highly corrosive marine, coastal, chemical, or wet environments, review the application requirements before choosing the final stainless steel grade. In some environments, another stainless grade or coated fastener may be more suitable.
Choosing the Right Head Style
Pan head self drilling screws have a rounded head with a flat bearing surface underneath. They are a good choice when the screw head can remain visible above the surface and a clean general-purpose head style is preferred.

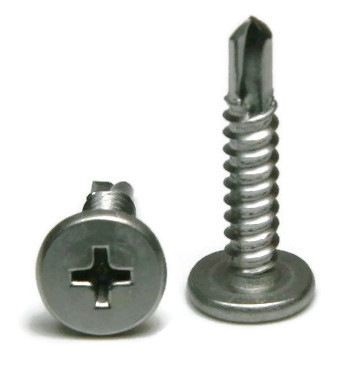

Flat head self drilling screws are designed for countersunk applications where the screw head needs to sit flush or nearly flush with the surface. Modified truss head self drilling screws provide a wider, low-profile bearing surface for panels, covers, brackets, and thin materials.

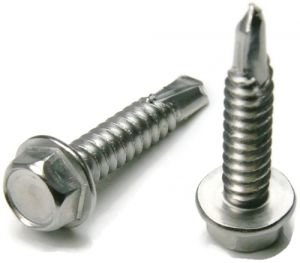

Hex washer head self drilling screws offer strong external tool engagement and a washer-style bearing surface. They are often selected when a nut driver, socket, or wrench is preferred during installation.
410 Stainless Steel Benefits
410 stainless steel can be hardened more than many general stainless steel grades, which makes it useful for self drilling and self tapping screw styles. This added hardness helps support the drill point used to create the hole before the threads engage.
While 410 stainless steel provides corrosion resistance for many applications, it is not usually the first choice for harsh marine, coastal, chemical, or high-moisture exposure. Compare the environment, material being fastened, and installation requirements before choosing the final fastener.
Self Drilling Screws vs Sheet Metal Screws
Self drilling screws include a drill point that drills the hole before the threads engage. Standard sheet metal screws are self-tapping, but they usually need a prepared hole or compatible material for the threads to form properly.
Choose self drilling screws when you want the screw to drill and fasten in one step. Choose sheet metal screws when a pilot hole is already drilled, when the material requires a specific prepared hole, or when a drill point is not needed.
How to Choose the Right Size and Drill Point
Choose the screw diameter and length based on the material thickness, holding strength needed, and available clearance behind the workpiece. The screw should be long enough to drill through the top material and create secure thread engagement without protruding too far through the back side of the assembly.
Match the drill point style to the material thickness and application. The screw, drill point, and material thickness should be compatible so the fastener can drill cleanly, form threads properly, and seat without damaging the assembly.
Related Self Drilling Screw Categories
Browse related self drilling and sheet metal screw categories to compare materials, head styles, and fastening options for your application.
- Self Tapping & Self Drilling Sheet Metal Screws
- Self Drilling Screws
- 410 Stainless Steel Self Drilling Screws
- Ultra Stainless Steel Self Drilling Screws
- Zinc Plated Self Drilling Screws
- Sheet Metal Screws
410 Stainless Steel Self Drilling Screw FAQs
What is a 410 stainless steel self drilling screw?
A 410 stainless steel self drilling screw is a hardenable stainless steel fastener with a drill point that helps drill and fasten in one step.
What are 410 stainless steel self drilling screws used for?
They are used for sheet metal panels, brackets, covers, fixtures, enclosures, HVAC work, appliance repair, light-gauge metal, and general maintenance applications.
Why is 410 stainless steel used for self drilling screws?
410 stainless steel can be hardened more than many general stainless steel grades, which helps support the drill point needed for self drilling screw applications.
Are 410 stainless steel self drilling screws corrosion resistant?
410 stainless steel provides corrosion resistance for many applications, but it is generally chosen more for hardness and drilling performance than maximum corrosion resistance.
Do 410 stainless steel self drilling screws need a pilot hole?
Self drilling screws are designed to drill their own hole in compatible materials. A pilot hole is usually not needed when the screw, drill point, and material thickness are properly matched.
What head styles are available for 410 stainless steel self drilling screws?
410 stainless steel self drilling screws are available in head styles such as pan head, flat head, modified truss head, and hex washer head.
What is the difference between 410 stainless steel and 18-8 stainless steel screws?
410 stainless steel can be hardened and is often used for self drilling or self tapping screw styles. 18-8 stainless steel is commonly used when general corrosion resistance is the main priority.
