Drywall Screws

Types of Drywall Screws

Coarse Thread Drywall Screws

Coarse thread drywall screws are commonly used for attaching drywall to wood studs and wood framing. Their wider thread spacing provides aggressive engagement in wood and helps the fastener pull the gypsum board securely against the framing.

Fine Thread Drywall Screws

Fine thread drywall screws are commonly used for attaching drywall to light-gauge metal studs. The finer thread pattern is designed to engage thin steel more effectively than a coarse wood-thread design.

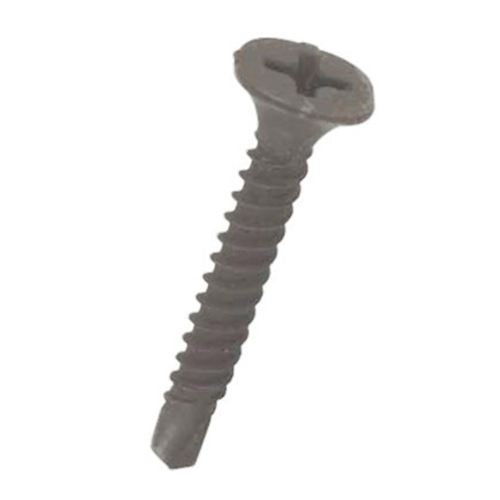

Self-Drilling Drywall Screws

Self-drilling drywall screws use a drill-style point for fastening drywall to heavier-gauge metal framing where a standard sharp-point drywall screw may not penetrate efficiently.

Always select the point and thread design according to the actual framing material and thickness.

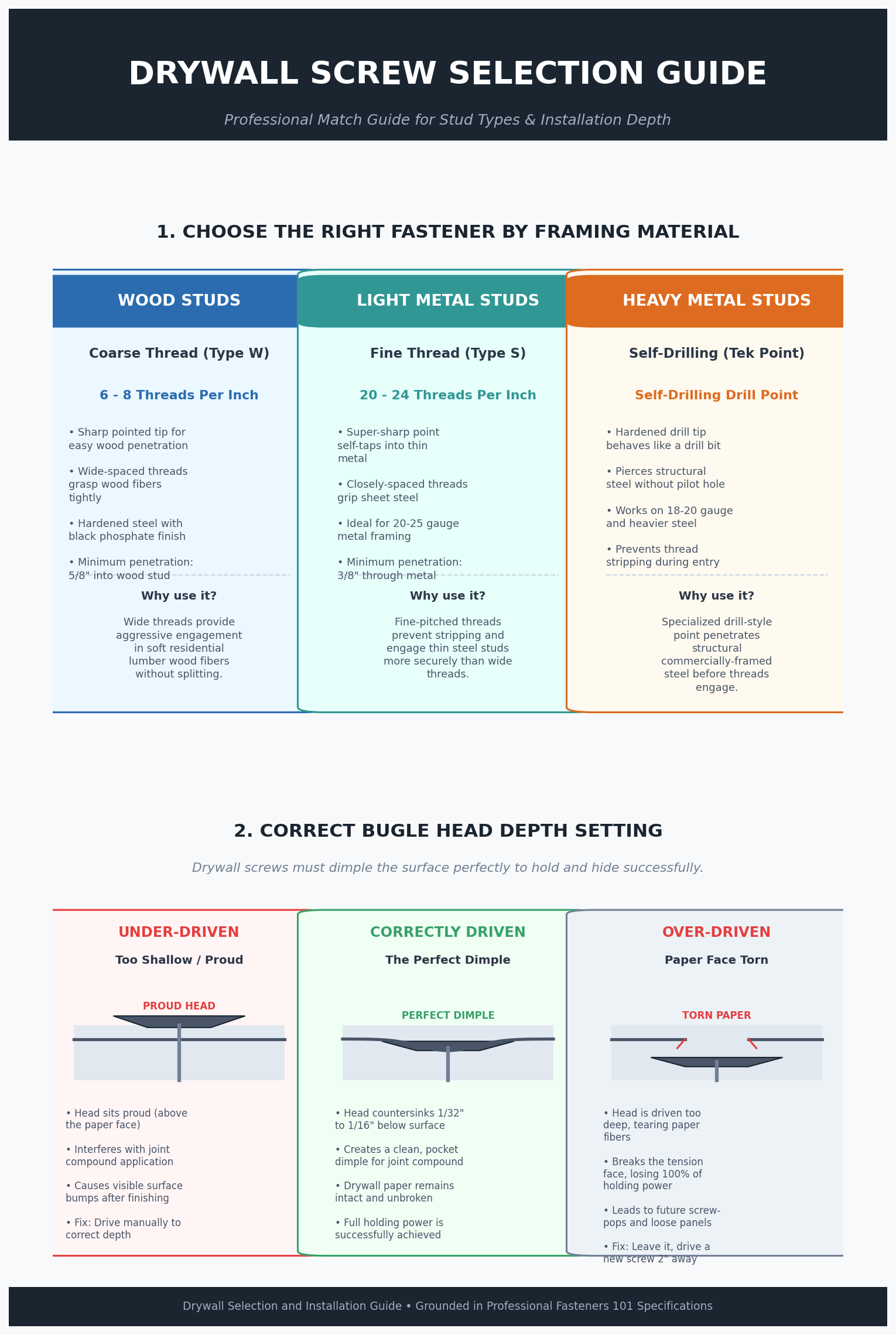

Drywall Screws for Wood Studs vs. Metal Studs

Drywall Screw Head Style

The most common drywall screw head is a bugle head. The curved underside of the head helps distribute pressure across the drywall paper while allowing the screw to seat slightly below the surface.

The screw should be driven deep enough to create a slight recess for joint compound without breaking the drywall face paper.

Drywall Screw Drive Styles

Phillips drive is the most common drive style for drywall screws because it works well with drywall screw guns, depth setters, and standard driver bits.

Other drive styles may be available for specialized applications, but the correct bit must always match the screw drive to reduce cam-out and installation damage.

Black Phosphate vs. Gray Phosphate Drywall Screws

Drywall screws are commonly available with black phosphate or gray phosphate finishes. These coatings are commonly used for interior drywall fastening and provide a suitable surface for joint compound and paint systems.

Phosphate-coated drywall screws are generally intended for dry interior environments. They should not automatically be treated as exterior or high-corrosion fasteners.

What Size Drywall Screws Do I Need?

Drywall screw size depends on the thickness of the gypsum board, the framing material, and the required penetration into the stud or framing member.

Drywall screws are typically specified by diameter, thread count, and length, such as #6-18 x 1-5/8".

The screw length is measured from beneath the bugle head to the tip.

Always follow the drywall manufacturer, framing manufacturer, applicable building code, and project specifications when selecting screw length and spacing.

Common Drywall Screw Lengths

Common drywall screw lengths include 1", 1-1/4", 1-5/8", 2", 2-1/2", and longer sizes depending on the drywall thickness, framing configuration, and application.

The correct length should provide sufficient penetration into the framing without using unnecessarily long fasteners.

Drywall Screws for 1/2" and 5/8" Drywall

The correct screw length for 1/2" or 5/8" drywall depends on whether the board is being installed over wood or metal framing and on the applicable construction requirements.

Rather than relying on one universal screw size, select the fastener according to the drywall thickness, framing system, required penetration, and project specifications.

Drywall Screws vs. Wood Screws

Drywall screws and wood screws are designed for different applications.

Drywall screws are optimized for fastening gypsum board to framing and typically use hardened steel, bugle heads, and thread patterns suited to wood or metal studs.

Wood screws are designed for structural or general wood-to-wood fastening and may use different head styles, shank designs, materials, and mechanical properties.

Drywall screws should not automatically be substituted for wood screws in applications that require structural strength or resistance to bending.

For general wood fastening, browse our Wood Screws.

Are Drywall Screws Strong?

Drywall screws are hardened for efficient driving and secure gypsum-board attachment, but hardness does not necessarily mean they are suitable for structural fastening.

Because hardened drywall screws can be more brittle than fasteners designed for structural wood connections, use a fastener specifically rated for the required load and application when structural performance is needed.

How to Install Drywall Screws

1. Select the correct screw: Match coarse, fine, or self-drilling thread style to the framing material.
2. Position the drywall: Hold the gypsum board firmly against the framing.
3. Drive perpendicular to the surface: Keep the screw square to avoid damaging the drywall paper.
4. Set the correct depth: Drive the bugle head slightly below the surface without breaking the paper.
5. Avoid overdriving: A screw driven too deeply can lose holding value because the drywall paper has been torn.
6. Follow required spacing: Use the screw spacing specified by the drywall system, building code, or project requirements.

Why Use a Drywall Screw Gun or Depth Setter?

A drywall screw gun or depth-setting attachment helps control how far the screw is driven into the gypsum board. Proper depth control allows the bugle head to recess slightly below the surface while preserving the face paper.

This improves installation consistency and reduces the risk of overdriving screws.

Common Drywall Screw Installation Problems

• Overdriven screws: Can tear the drywall paper and reduce holding performance.
• Underdriven screws: Leave the head above the drywall surface and interfere with finishing.
• Wrong thread type: Coarse threads may not perform properly in metal studs, while fine threads are not optimized for wood framing.
• Incorrect screw length: May provide insufficient penetration or create unnecessary protrusion.
• Stripped metal framing: Can occur if the screw is overdriven after the threads engage thin steel.
• Broken screws: Can result from excessive torque, misalignment, or using a screw not suited to the framing material.

Drywall Screws for Ceilings

Drywall screws are commonly used to attach gypsum board to ceiling framing. Ceiling applications can place different demands on the fastening system, so screw size, spacing, framing type, and drywall thickness should follow the applicable drywall-system specifications and building requirements.

Drywall Screws for Metal Studs

Fine thread drywall screws are commonly used for light-gauge metal studs because the tighter thread spacing engages thin steel more effectively.

For heavier steel framing, a self-drilling drywall screw may be required so the drill-style point can penetrate the metal before the threads engage.

Drywall Screws for Wood Studs

Coarse thread drywall screws are commonly selected for wood studs and framing. Their aggressive thread pattern provides strong engagement in wood and helps pull the drywall tightly against the framing.

Frequently Asked Questions About Drywall Screws

What are drywall screws?

Drywall screws are specialized fasteners designed to attach gypsum board to wood or metal framing. They commonly feature a bugle head, sharp point, and coarse, fine, or self-drilling thread designs.

Are drywall screws the same as sheetrock screws?

Yes. "Sheetrock screws" is a common term used for drywall screws. Sheetrock is a well-known brand name for gypsum wallboard, but the fasteners are generally referred to as drywall screws.

What drywall screws should I use for wood studs?

Coarse thread drywall screws are commonly used for wood studs because their aggressive threads provide strong engagement in wood framing.

What drywall screws should I use for metal studs?

Fine thread sharp-point drywall screws are commonly used for light-gauge metal studs. Heavier steel framing may require self-drilling drywall screws.

What is the difference between coarse and fine thread drywall screws?

Coarse thread drywall screws have wider thread spacing and are generally intended for wood studs. Fine thread drywall screws have tighter thread spacing and are generally used with light-gauge metal framing.

What are self-drilling drywall screws used for?

Self-drilling drywall screws are used where a drill-style point is needed to penetrate heavier-gauge metal framing before the screw threads engage.

Why do drywall screws have bugle heads?

The bugle-shaped head helps the screw seat slightly below the drywall surface while distributing pressure across the face paper. This creates a recess that can be covered with joint compound.

How deep should drywall screws be driven?

The screw head should sit slightly below the drywall surface without tearing through the face paper. A drywall screw gun or depth setter can help maintain consistent installation depth.

Can drywall screws be used for wood projects?

Drywall screws can physically fasten some wood components, but they are not designed as general structural wood screws. Use fasteners specifically designed and rated for the required wood application when strength or structural performance matters.

Can drywall screws be used outside?

Standard black or gray phosphate drywall screws are generally intended for dry interior applications. Exterior or moisture-exposed installations require a fastener specifically designed and rated for that environment.

Why do drywall screws snap?

Drywall screws are typically hardened for driving performance, which can make them less tolerant of bending than some other screw types. Excessive torque, misalignment, or using the screw in an unsuitable application can cause breakage.

How do I choose the right drywall screw length?

Choose screw length according to the drywall thickness, framing material, required penetration, and drywall-system requirements. Follow the applicable manufacturer and project specifications rather than relying on one universal screw length.
