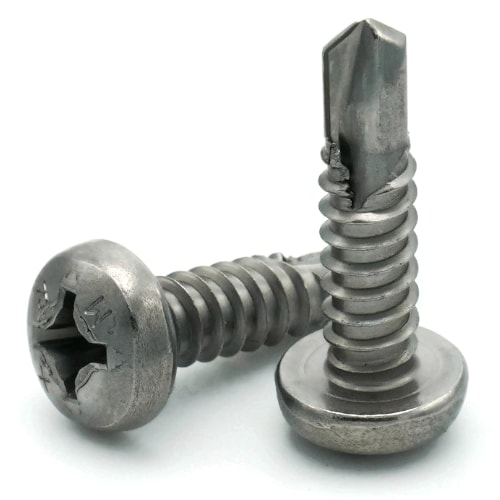

Why Choose Ultra Stainless Steel Phillips Pan Head Self Drilling Screws?
Ultra stainless steel Phillips pan head self drilling screws are useful when an application needs a screw that can drill and fasten in one step with improved corrosion resistance. The drill point helps create the hole before the threads engage, reducing the need for separate drilling in compatible sheet metal and light-gauge materials.
The Phillips drive works with common screwdrivers and driver bits, while the pan head provides a rounded finished appearance with a flat bearing surface underneath. These screws are commonly selected for sheet metal and light-gauge fastening where a separate pilot hole may not be needed.
Common Uses for Ultra Stainless Steel Phillips Pan Head Self Drilling Screws
Ultra stainless steel Phillips pan head self drilling screws are commonly used for sheet metal panels, brackets, covers, fixtures, enclosures, HVAC work, appliance repair, light-gauge metal, outdoor assemblies, and general maintenance applications.
Ultra stainless steel self drilling screws are a good option when the application needs more corrosion resistance than standard zinc plated steel while still using a self drilling point. For highly corrosive, marine, coastal, chemical, or wet environments, review the project requirements carefully before choosing the final fastener.
Pan Head and Phillips Drive Benefits
Pan head self drilling screws have a rounded top and a flat bearing surface under the head. This gives the fastener a clean finished appearance while allowing the head to seat securely against the material.
The Phillips drive is widely used and easy to match with common tools. For harder materials or production work, make sure the driver bit is seated properly to reduce slipping during installation.
Ultra Stainless Steel Benefits
Ultra stainless steel self drilling screws are selected when corrosion resistance is important but the application also needs a drill point for one-step fastening. This makes them useful for many outdoor, exposed, or moisture-prone applications where plain or zinc plated steel may not be the best fit.
Because self drilling screws rely on the drill point to cut into the material, the screw style and material thickness should still be matched carefully before installation.
Self Drilling Screws vs Sheet Metal Screws
Self drilling screws include a drill point that drills the hole before the threads engage. Standard sheet metal screws are self-tapping, but they usually need a prepared hole or compatible material for the threads to form properly.
Choose self drilling screws when you want the screw to drill and fasten in one step. Choose sheet metal screws when a pilot hole is already drilled, when the material requires a specific prepared hole, or when a drill point is not needed.
How to Choose the Right Size and TEK Point
Choose the screw diameter and length based on the material thickness, holding strength needed, and available clearance behind the workpiece. The screw should be long enough to drill through the top material and create secure thread engagement without protruding too far through the back side of the assembly.
Match the TEK point style to the material thickness and application. A TEK 2 point is commonly used for lighter-gauge material, while a TEK 3 point is used for thicker compatible material. The screw, drill point, and material thickness should be compatible so the fastener can drill cleanly, form threads properly, and seat without damaging the assembly.
Related Self Drilling Screw Categories
Browse related self drilling and sheet metal screw categories to compare other materials, head styles, and drilling options for your application.
- Self Tapping & Self Drilling Sheet Metal Screws
- Self Drilling Screws
- Phillips Pan Head Self Drilling Screws
- 410 Stainless Steel Phillips Pan Head Self Drilling Screws
- Zinc Plated Steel Phillips Pan Head Self Drilling Screws
- Sheet Metal Screws
Ultra Stainless Steel Phillips Pan Head Self Drilling Screw FAQs
What is an Ultra stainless steel Phillips pan head self drilling screw?
An Ultra stainless steel Phillips pan head self drilling screw is a corrosion-resistant fastener with a Phillips drive, rounded pan head, and drill point that helps drill and fasten in one step.
What are Ultra stainless steel Phillips pan head self drilling screws used for?
They are used for sheet metal panels, brackets, covers, fixtures, enclosures, HVAC work, appliance repair, light-gauge metal, outdoor assemblies, and general maintenance applications.
Do Ultra stainless steel self drilling screws need a pilot hole?
Self drilling screws are designed to drill their own hole in compatible materials. A pilot hole is usually not needed when the screw, drill point, and material thickness are properly matched.
What is the difference between self drilling screws and sheet metal screws?
Self drilling screws have a drill point that drills the hole before the threads engage. Sheet metal screws are self-tapping, but they typically need a prepared hole or compatible material for proper thread formation.
What is the difference between TEK 2 and TEK 3 screws?
TEK 2 screws are commonly used for lighter-gauge material, while TEK 3 screws are used for thicker compatible material. The correct choice depends on the material thickness and application.
Do Phillips pan head self drilling screws sit flush?
No. Pan head self drilling screws have a raised rounded head. For a flush installation, use a flat head self drilling screw with the correct countersunk application.
When should I choose Ultra stainless steel self drilling screws?
Ultra stainless steel self drilling screws are a good option when the application needs a self drilling point and more corrosion resistance than standard zinc plated steel.
