What are socket cap screws?
Socket cap screws are high strength precision fasteners featuring a cylindrical head with an internal hex (Allen®) drive, allowing them to be tightened with a hex key or hex bit. Designed for applications requiring high clamping force and reliable performance, socket cap screws are commonly used where limited clearance makes traditional wrench tightened fasteners impractical. Their compact head design and deep internal drive enable higher torque while maintaining a clean, professional appearance. Socket cap screws are widely used in machinery, automation equipment, robotics, aerospace, automotive assemblies, tooling, electronics, industrial equipment, and precision manufacturing. Available in a variety of head styles, thread sizes, materials, grades, and finishes, they provide dependable fastening for applications where strength, accuracy, and repeatable assembly are critical. Whether you're assembling machinery, securing mechanical components, mounting equipment, or building precision assemblies, socket cap screws offer exceptional strength, excellent clamping performance, and easy installation in confined spaces.
Socket Cap Screws
Standard Socket Head Cap Screws
Socket cap screws with a tall cylindrical head and internal hex drive for high-strength fastening in counterbored holes.
Flat Head Socket Cap Screws
Countersunk socket cap screws with an internal hex drive that sit flush with the surface for a clean, high-strength finish.
Button Head Socket Cap Screws
Socket cap screws with a low domed head and internal hex drive for a finished look where clearance is limited.
Flange Button Head Socket Cap Screws
Button-head socket cap screws with a built-in flange that spreads clamping load like a washer.
Low Profile Socket Head Cap Screws
Socket cap screws with a shorter head for tight-clearance applications where a standard head won't fit.
Shop Related Categories
-min.jpg?ts=1757453408)

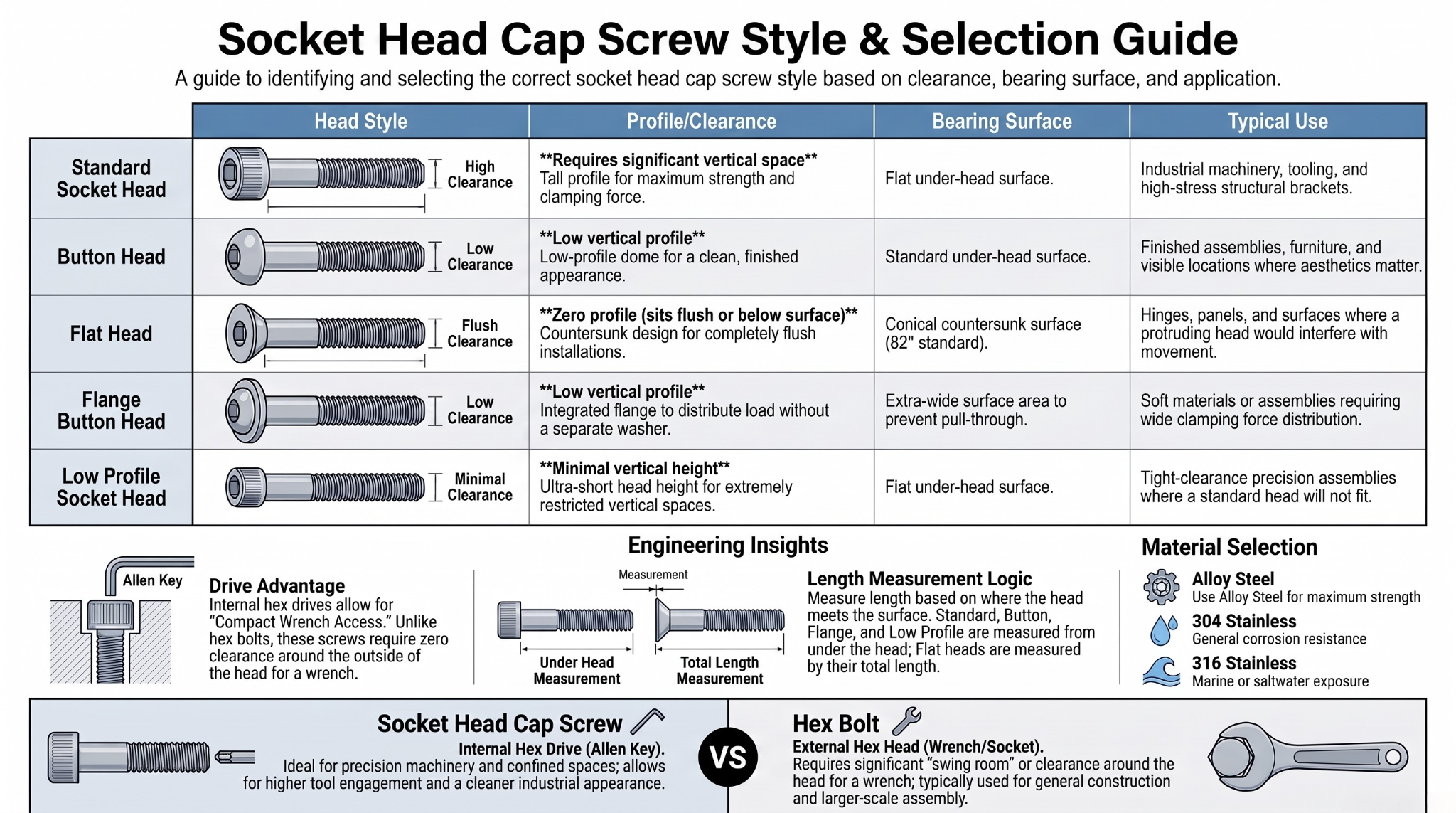

Types of Socket Cap Screws
- Standard socket head cap screws — cylindrical head with deep hex socket for maximum torque.
- Button head socket cap screws — rounded, low-profile head for a sleek look and reduced snagging.
- Flat head socket cap screws — countersunk head that sits flush for smooth surfaces.
- Flange button socket cap screws — integrated flange increases bearing surface; often eliminates a washer.
- Low-profile / thin head variants — for clearance-restricted designs (verify torque needs).
What head and drive options do socket cap screws have?
- Drives — hex/Allen is standard; Torx/6-lobe and hex-socket security drives are available on select sizes.
- Heads — standard, button, flat (countersunk), flanged button, and low-profile designs for space or finish needs.
Materials and finishes for socket cap screws
- Alloy steel black oxide — very high strength for dry interior use.
- Stainless steel (18-8 / 304) — reliable corrosion resistance for most environments.
- Stainless steel (316) — added resistance for marine/coastal or chloride exposure.
- Zinc-plated or coated steel — economical corrosion protection for general use.
How do I size and specify socket cap screws?
Specify diameter × thread × length (e.g., 1/4″-20 × 1-1/2″, 10-32 × 3/4″, M6-1.0 × 25 mm). Length is measured from under the head for standard/button heads; flat heads are measured overall. Match UNC/UNF or metric ISO threads to the tapped component and confirm head style/drive clearance.
Why choose socket cap screws
- High strength — supports high clamp loads in compact footprints.
- Compact assembly — internal drive works where external hex heads won’t fit.
- Clean appearance — ideal for finished equipment and visible hardware.
- Precision — consistent head geometry for reliable torque and preload.
Common applications for socket cap screws
- Industrial machinery, robotics, automation, and motion systems
- Electronics, instrument panels, fixtures, and tooling
- Automotive, aerospace, and equipment assembly
- Structural brackets, guards, and tight-clearance joints
Installation tips for socket cap screws
- Use the correct hex key fully seated to avoid recess rounding.
- Apply proper torque per size/material; consider threadlocker where vibration exists.
- For flat head socket cap screws, countersink to the correct angle for full head support.
- Verify head clearance and washer/flange needs to protect surfaces and distribute load.
