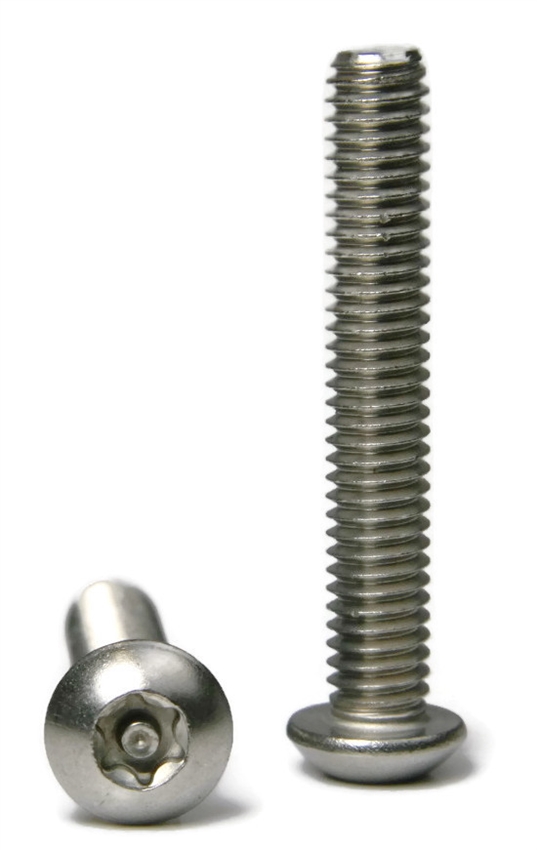

Why Choose 18-8 Stainless Steel Star Pin-In Button Head Machine Screws?
18-8 stainless steel Star pin-in button head machine screws are a good choice when you need a machine-threaded security fastener with corrosion resistance and a finished appearance. The stainless steel construction helps protect the screw in many indoor and outdoor environments, while the pin-in star drive makes removal more difficult without the matching security bit.
The rounded button head provides a clean, low-profile look when the screw head remains visible after installation. This makes these screws useful for security fastening where appearance, serviceability, and tamper resistance all matter.
Common Uses for 18-8 Stainless Steel Security Machine Screws
These screws are commonly used for access panels, signs, public fixtures, equipment covers, enclosures, display hardware, bathroom partitions, license plates, and other assemblies that may be exposed to frequent contact or attempted removal.
18-8 stainless steel is commonly used for general corrosion resistance in indoor and outdoor applications. For marine, coastal, chemical, or highly corrosive environments, 316 stainless steel may be a better option when available.
How the Star Pin-In Security Drive Works
The Star pin-in drive, also commonly called Torx pin-in, has a star-shaped recess with a center security pin. A standard Torx bit will not seat properly over the pin, so installation and removal require a matching tamper resistant Torx security bit with a hole in the center.
This drive style provides strong driver engagement while helping reduce removal with common tools. It is a popular option for security machine screws that may still need to be serviced by authorized installers or maintenance teams.
Button Head Benefits
Button head machine screws have a rounded head that provides a smooth finished appearance. They are often chosen when the fastener head will remain exposed and a clean, finished look is preferred.
For applications that need the screw head to sit flush with the surface, a flat head security machine screw may be a better fit. For applications where a visible rounded head is acceptable or preferred, button head security screws are a practical choice.
How to Choose the Right Size
Match the screw diameter and thread pitch to the tapped hole, threaded insert, or nut being used. Machine screws require compatible mating threads, so the screw size must match the internal thread before installation.
Choose a length that provides enough thread engagement without bottoming out in a blind hole or extending too far beyond the nut or back side of the assembly. Also make sure the correct Star pin-in security driver size is available for installation and future maintenance.
18-8 Stainless Steel Star Pin-In Button Head Machine Screw FAQs
What is an 18-8 stainless steel Star pin-in button head machine screw?
An 18-8 stainless steel Star pin-in button head machine screw is a machine-threaded security fastener with a rounded button head and a star-shaped drive that includes a center security pin.
Is Star pin-in the same as Torx pin-in?
Star pin-in is commonly used to describe a Torx-style security drive with a center pin. It requires a matching tamper resistant Torx security bit for proper installation or removal.
Can a regular Torx bit remove Star pin-in screws?
No. A regular Torx bit will not fit over the center pin. Star pin-in screws require a matching security Torx bit with a hole in the center.
What is 18-8 stainless steel used for?
18-8 stainless steel is commonly used for fasteners that need good corrosion resistance, clean appearance, and reliable performance in many general indoor and outdoor applications.
Are 18-8 stainless steel tamper proof screws good for outdoor use?
18-8 stainless steel is commonly used outdoors, but 316 stainless steel is usually preferred for marine, coastal, chemical, or highly corrosive environments.
Do these machine screws need a nut?
These machine screws can be used with a matching nut, threaded insert, or tapped hole. The screw diameter and thread pitch must match the mating threads.
