External Retaining Rings

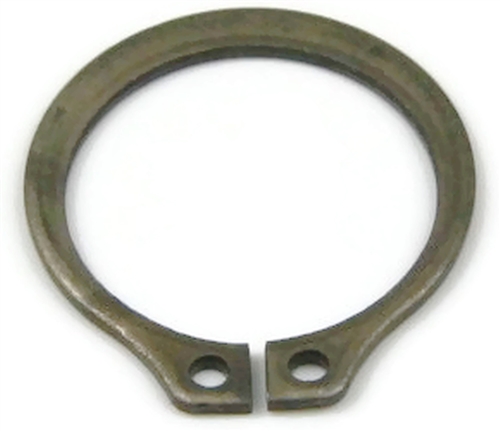

What are external retaining rings? External retaining rings are spring steel rings that snap into a groove machined around the outside of a shaft, forming a raised shoulder that keeps bearings, gears, pulleys, and sprockets from sliding along it. They are open at one end with a lug hole on each side, so retaining ring pliers can spread the ring just enough to pass over the shaft before it springs back into the groove. Because the ring wraps nearly the full circumference, it carries substantially more thrust than a radial clip. AlbanyCountyFasteners.com stocks external retaining rings in stainless steel and carbon steel, in inch sizes from 1/4 inch through 5 inches and metric sizes from 7mm through 100mm.

External Retaining Rings

How do external retaining rings work?

The ring does not grip the shaft, it seats in a groove and stands proud of the shaft surface. Whatever you are retaining bears against that exposed shoulder, and the axial load passes through the ring into the groove wall rather than being carried by the ring's spring tension. This is why groove geometry governs performance more than ring strength does. Spring temper matters for a different reason: it keeps constant radial pressure against the groove bottom so the ring stays seated under vibration. When an external ring fails, the usual cause is a groove cut too shallow, letting the ring cam up and out under thrust, or a ring that was over-expanded during installation and no longer springs fully closed.

Why choose external retaining rings

Higher thrust capacity than E-clips, because the shoulder wraps nearly the whole shaft
Lug holes accept standard external retaining ring pliers for controlled, repeatable installation
Replace machined shoulders, threaded collars, and nut and washer stacks with one lightweight part
Remove cleanly for service, so bearings and gears can be pulled without cutting anything
Stocked in inch and metric sizes across a wide diameter range

Materials and finishes we stock

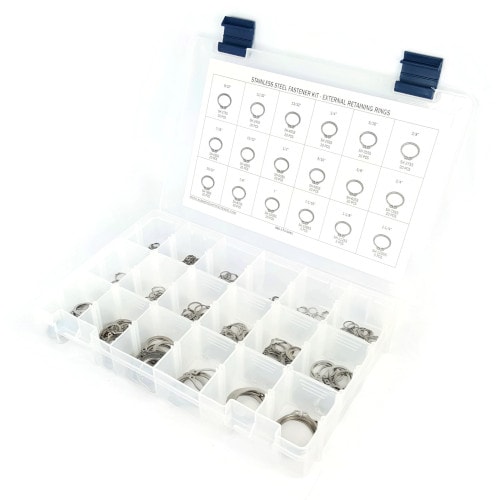

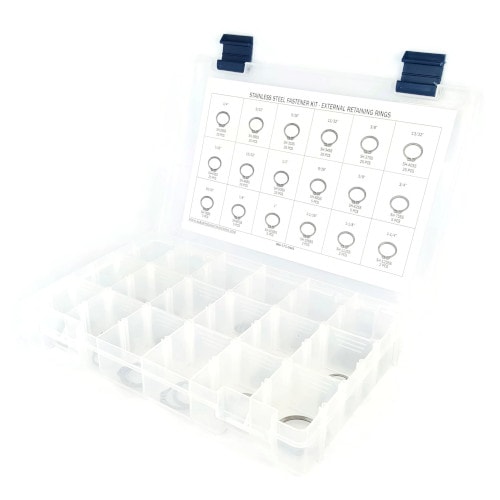

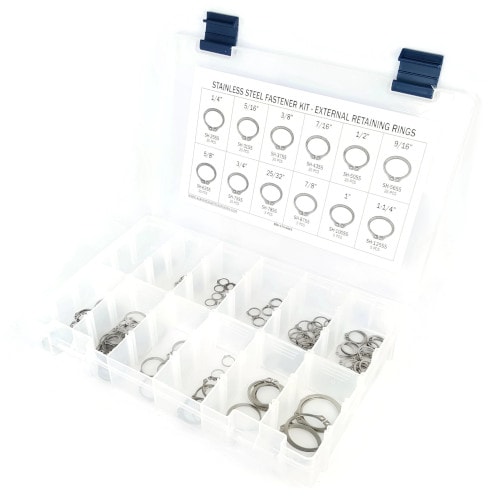

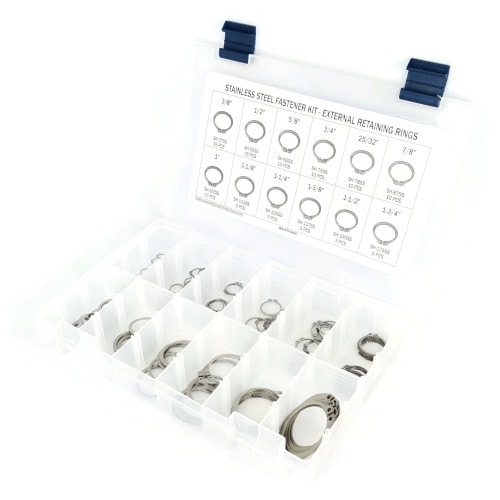

Stainless steel, for outdoor, marine, washdown, and humid service where corrosion would pit the ring at the groove

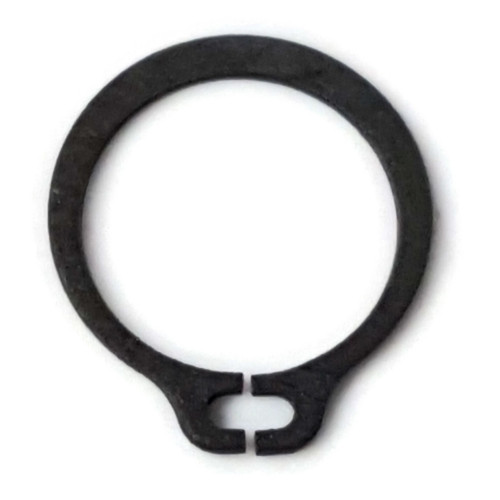

Carbon steel, phosphate finished for economical general purpose service in dry indoor machinery
Metric stainless steel, sized to millimeter shafts for imported and metric built equipment

Common applications

Locating ball bearings and bushings on shafts in gearboxes and drives
Retaining gears, sprockets, pulleys, and sheaves against axial travel
Automotive transmissions, axles, and driveline components
Conveyor rollers, idlers, and material handling equipment
Pumps, motors, and rotating machinery assemblies
Agricultural and construction equipment shafts and pivot points

If the shaft end is blocked and the ring cannot slide on axially, use an E-style retaining ring that installs from the side instead. For rings that seat inside a bore rather than on a shaft, see our internal retaining rings.

Related Categories

External Retaining Ring FAQs

How do you install an external retaining ring?

Put the plier tips into the two lug holes and squeeze the handles, which forces the tips apart and expands the ring. Open it only enough to clear the shaft, slide it down to the groove, then release slowly and let the spring tension seat it. Over-expanding is the most common installation mistake, because a ring stretched past its elastic limit will not close fully into the groove.

What size external retaining ring do I need?

Order by the shaft diameter at the groove. A 3/4 inch shaft takes a 3/4 inch ring. Also check the groove diameter at its base and the groove width, since a ring can match the shaft size and still be wrong for a groove cut to a non-standard depth.

Which pliers do I need for external rings?

External retaining ring pliers, which spread the tips apart when you squeeze the handles. Internal pliers do the opposite and will not work. Match the tip diameter to the ring's lug hole, since tips that are too small cam out and tips that are too large will not seat.

How do I know the ring is fully seated?

Check engagement all the way around the groove, then confirm the ring sits flush and can rotate freely in the groove without lifting at any point. A ring that stands proud at one section has not dropped fully into the groove and will release under load.

What is the difference between an external retaining ring and an E-clip?

Installation direction and load capacity. An external ring slides on axially over the shaft end and wraps nearly the full circumference for maximum thrust. An E-clip pushes on radially from the side, so it works where the shaft end is blocked, but it contacts at three prongs and carries less load.

Which way does an external retaining ring face?

The stamping operation leaves one sharp edge and one slightly rounded edge. Install with the sharp edge facing away from the retained part, so that sharp corner bears squarely against the groove wall and resists camming out under thrust.
