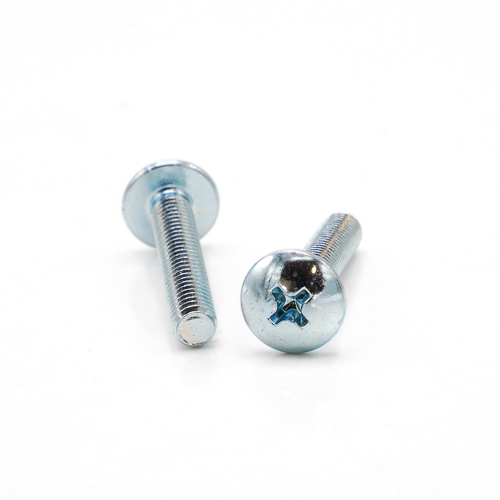

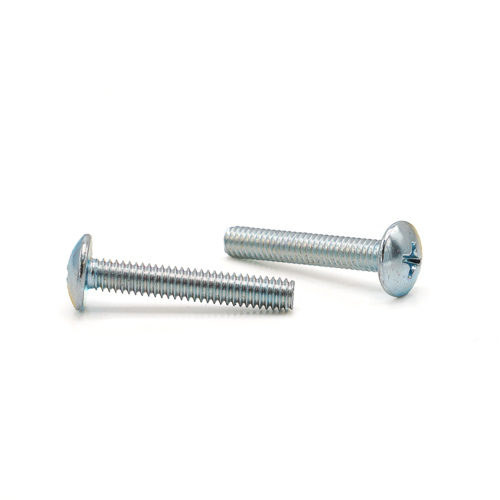

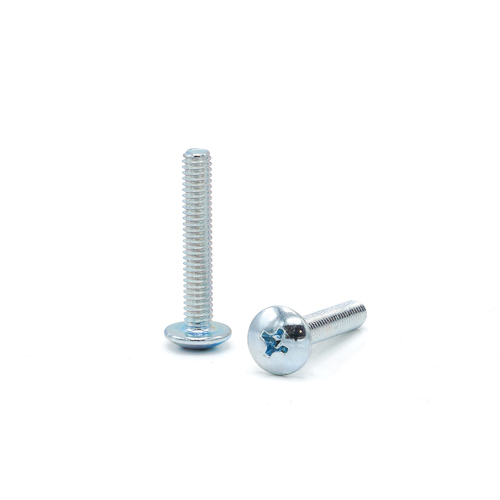

Machine Screws, Phillips Truss Head, Zinc Plated Steel, #8-32 x 1"
Diameter - Thread Pitch: #8-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.05*
|
| To 999 |
$0.04*
|
| From 1000 |
$0.03*
|
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #8
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Truss Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Fit: 2A
- Head Style: Truss
- Length: 1"
- Material: Steel
- Part Number: 8306-002
- Phillips Drive: #3
- Product Type: Machine Screws
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #8-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Yield PSI: 55,000 - 75,000 PSI
- Screws that can be driven by Phillips style drive
- A machine screw is commonly identified by its small size
- Commonly used with nuts or driven into tapped holes
- Zinc plated steel Phillips truss head machine screws add a layer of corrosion resistance to plain alloy steel
- Zinc has a shiny light color and sometimes a blue hue
- Zinc plated steel is not suitable for extreme environment use
#8-32 Phillips truss head machine screws with a zinc plated coating over plain alloy steel.
REACH and RoHS Compliant
Product number:
8306-002-002
