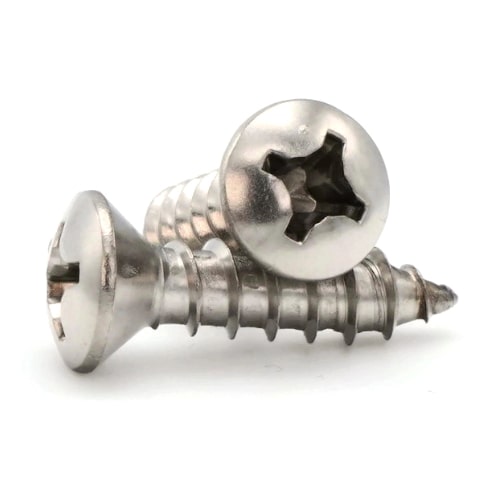

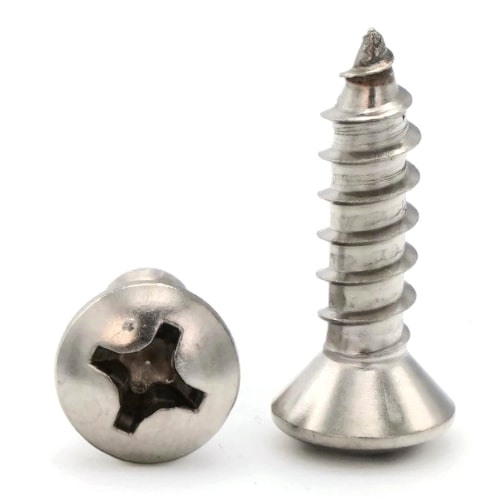

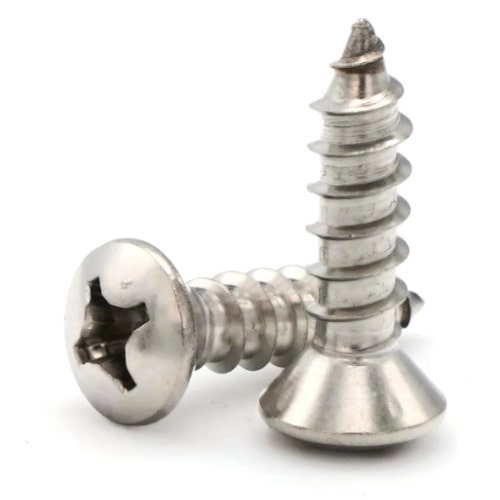

Sheet Metal Screws, Phillips Oval Head, Stainless Steel 316, #4 x 1"

Diameter - Thread Pitch: #4-24
  • #4-24
  • Raised decorative head
  • Notched at the tip to aid in chip removal
  • Threads cut into material for a stronger hold
  • 316 Stainless steel Phillips oval head sheet metal screws are extremely rust resistant
  • 316 Stainless Steel is the ideal choice for marine environments
  • Sizes listed below as: Diameter - Thread Pitch
Type A Sheet Metal Screw Thread Specifications
Product number: 6010-002-002
Print this page
Click on a size/sku in the table to view product-specific details and specifications.

Specifications

  • ANSI: ANSI B18.6.3
  • Color: Silver
  • Corrosion Resistant: Yes
  • Diameter: #4
  • Drive Style: Phillips
  • Elongation: 30%
  • Head Type: Oval Head
  • Thread Direction: Right Hand
  • Thread Type: Coarse
  • Grade: 316
  • Hardness: 100 Rockwell B
  • Head Height Max: 0.104
  • Head Diameter: Max 0.225 - Min 0.195
  • Head Style: Oval
  • Length: 1"
  • Marine Grade: Yes
  • Material: Stainless Steel
  • Overall Head Height: Max 0.104 - Min 0.084
  • Phillips Drive: #1
  • Point Type: A
  • Product Type: Sheet Metal Screws
  • Reduction: 0.4
  • Standards Met: ANSI B18.6.3
  • System of Measurement: Inch
  • Thread Diameter Major: (#4) 0.114 - 0.110
  • Thread Diameter Minor: (#4) 0.083 - 0.078
  • Thread Direction: Right Hand
  • Thread Pitch: 24 Per Inch
  • Thread Size: #4-24
  • Thread Standard: UNC
  • Thread Type: Coarse
  • Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
  • Yield PSI: 55,000 - 75,000 PSI
Select Size/SKU & Quantity
1 Available Sizes
SIZE/SKU Review Volume Pricing* Enter Any Qty
#4-24 x 1"
6010-002-002
1
$0.14 ($0.14/ea)
100
$8.00 ($0.08/ea)
1000
$70.00 ($0.07/ea)
$0.00
