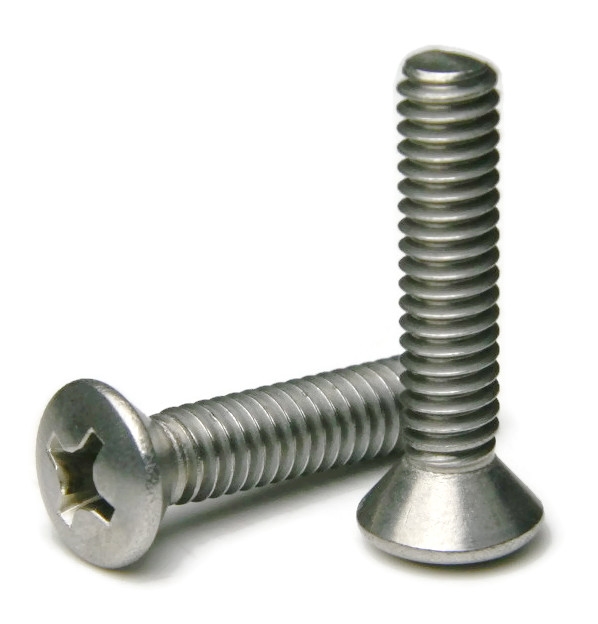

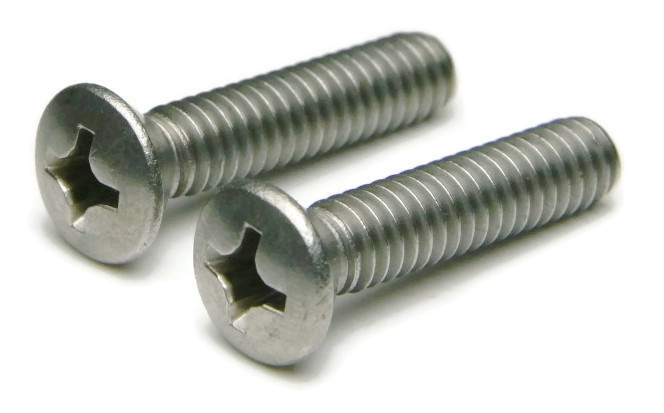

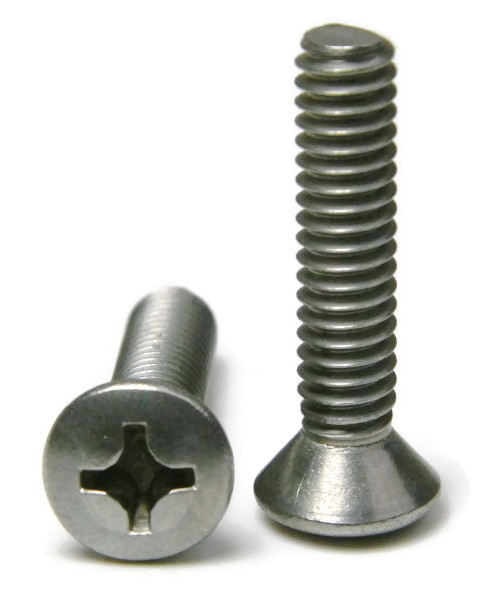

#4-40 Phillips Oval Head Machine Screw 18-8 Stainless Steel

#4-40 Stainless Steel Phillips Oval Head Machine Screws

Diameter - Thread Pitch: #4-40


#4-40 Stainless Steel Phillips Oval Head Machine Screws in 18-8 stainless steel.

  • Countersunk head with a raised domed top
  • Used either with a nut or in a pre-tapped hole
  • Raised decorative head
  • Used to secure materials that may be tampered with
  • Ideal for fresh water moisture environments
  • Rust and corrosion resistant

Select Products Below
Product Specifications
ANSI
ANSI B1.1
Body Diameter
#4 (Max 0.1112 - Min 0.1061)
Class
2A
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#4
Drive Style
Phillips
Fit
Class 2A
Head Diameter
Max 0.225 - Min 0.195
Head Height Max
0.104
Head Style
Oval
Material
Stainless Steel 18-8
Phillips Drive
#1
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
Thread Direction
Right Hand
Thread Pitch (Count)
40
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Undercut
82 Degree
Select Products Below
Qty
Size
Select Package Quantity
SubTotal
#4-40 x 1/4"
SKU #5800002
#4-40 x 1/4"
SKU #5800002
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 5/16"
SKU #5800012
#4-40 x 5/16"
SKU #5800012
1
$0.15 (0.15/ea)
25
$0.75 (0.03/ea)
100
$2.00 (0.02/ea)
1000
$10.00 (0.01/ea)

#4-40 x 3/8"
SKU #5800022
#4-40 x 3/8"
SKU #5800022
1
$0.15 (0.15/ea)
25
$0.75 (0.03/ea)
100
$2.00 (0.02/ea)
1000
$10.00 (0.01/ea)

#4-40 x 7/16"
SKU #5800032
#4-40 x 7/16"
SKU #5800032
1
$0.15 (0.15/ea)
25
$0.75 (0.03/ea)
100
$2.00 (0.02/ea)
1000
$10.00 (0.01/ea)

#4-40 x 1/2"
SKU #5800042
#4-40 x 1/2"
SKU #5800042
1
$0.15 (0.15/ea)
25
$0.75 (0.03/ea)
100
$2.00 (0.02/ea)
1000
$10.00 (0.01/ea)

#4-40 x 5/8"
SKU #5800052
#4-40 x 5/8"
SKU #5800052
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 3/4"
SKU #5800062
#4-40 x 3/4"
SKU #5800062
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 7/8"
SKU #5800072
#4-40 x 7/8"
SKU #5800072
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 1"
SKU #5800082
#4-40 x 1"
SKU #5800082
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 1-1/4"
SKU #5800092
#4-40 x 1-1/4"
SKU #5800092
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)

#4-40 x 1-1/2"
SKU #5800102
#4-40 x 1-1/2"
SKU #5800102
1
$0.15 (0.15/ea)
25
$1.00 (0.04/ea)
100
$3.00 (0.03/ea)
1000
$20.00 (0.02/ea)
