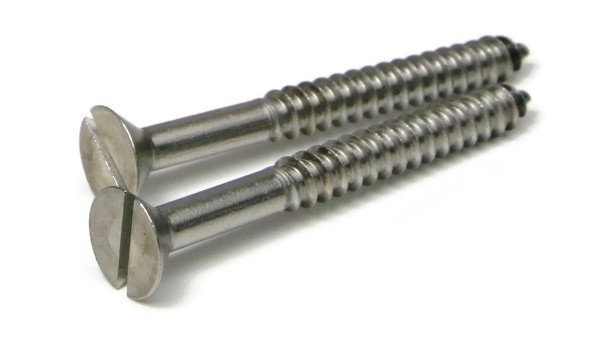

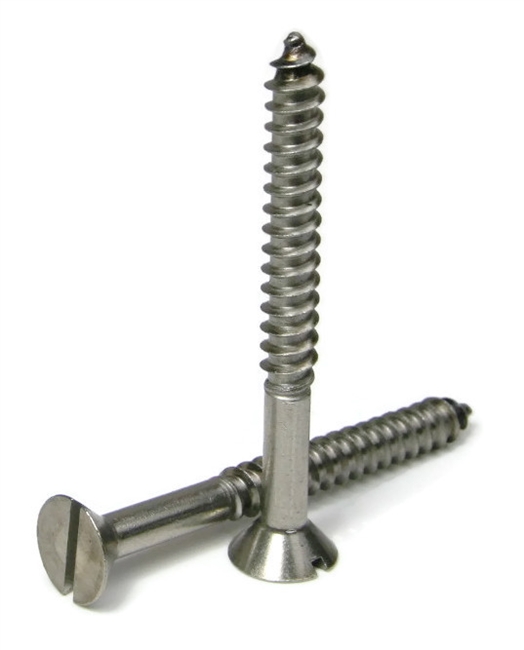

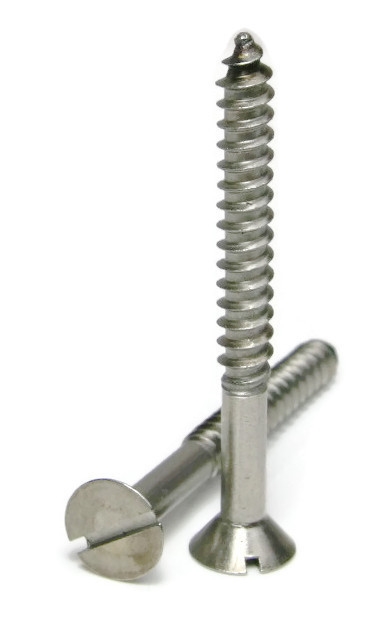

#18-9 Stainless Steel Slotted Flat Head Wood Screws
Diameter - Thread Pitch: #18-9
#18 Stainless steel slotted flat head wood screws are designed to hold two pieces of wood together tightly and efficiently.
- Partially threaded with a shoulder
- Designed to slide through top piece of wood and provide a strong hold
- Features a countersunk and undercut head
- Slotted Drive Style
- Stainless steel is corrosion and rust resistant
- 18-8 Stainless steel is ideal for environments exposed to fresh water moisture
Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.
Sizes Listed As:
Diameter x Length from Top of Head
Product Specifications
Brand
Albany County Fasteners
Color
Silver
Corrosion Resistant
Yes
Diameter
#18
Drive Style
Slotted
Grade
18-8
Head Diameter
Max 0.597
Head Style
Flat
Material
Stainless Steel
Product Type
Wood Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#18) Max 0.296 - Min 0.292
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
