#12-24 Phillips Flat Head Machine Screw Zinc Plated Steel
Phillips Flat Head Machine Screw #12-24 Zinc

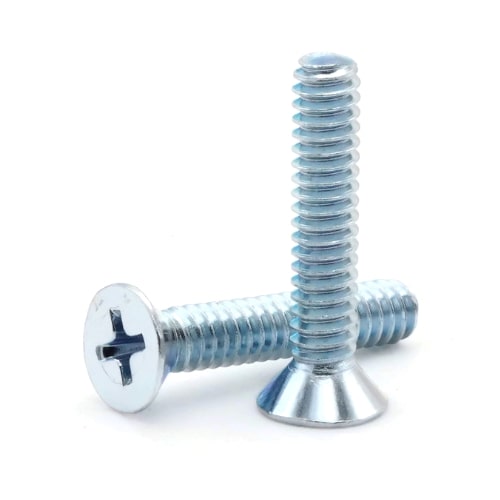

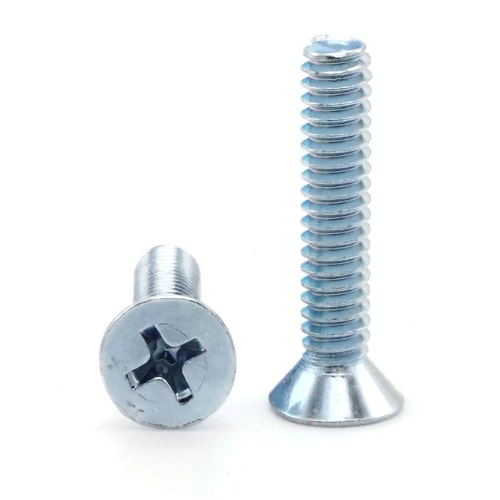

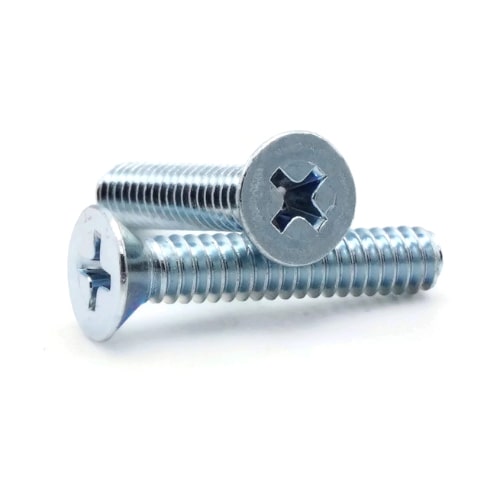

Alternative Views:


Phillips Flat Head Machine Screws - Zinc Plated Steel

Diameter - Thread Pitch: #12-24

Phillips Flat Head Machine Screws feature a flat head with an 82 degree undercut for a smooth and flush installation. A Phillips Flat Head Machine Screw is driven with a Phillips, or cross bit. Phillips Flat Head Screws are also known as machine screws, Phillips screw or machine screw bolt.

REACH and RoHS Compliant

Product Specifications:
Phillips Flat Head Machine Screws
Thread Diameter: (#12) Max 0.2150 - Min 0.2078
Thread Pitch: 24 Per Inch (Coarse)
Head Diameter: Max 0.438 - Min 0.389
Countersink: 82 Degree
Overall Head Height: Max 0.132 - Min 0.112
(From Bottom of Undercut to Top of Head)
Thread Direction: Right Hand
Material: Zinc Plated Steel
Phillips Drive: #3
Diameter x Thread Pitch x Length From Top of Head
Specifications may vary +/- within IFI Tolerances

Matching Products:
Hex Machine Screw Nuts Phillips Power Bits Screwdriver Sets
Zinc-Nuts
phillips power bit screwdriver


Item# Item Name Our Price Qty Add
8300-018-0002 Phillips Flat Head Machine Screw Zinc - #12-24 x 3" Qty-1
$0.15
8300-018-0004 Phillips Flat Head Machine Screw Zinc - #12-24 x 3" Qty-25
$2.00
8300-018-0006 Phillips Flat Head Machine Screw Zinc - #12-24 x 3" Qty-100
$7.28
8300-018-0008 Phillips Flat Head Machine Screw Zinc - #12-24 x 3" Qty-250
$17.27
8300-018-0010 Phillips Flat Head Machine Screw Zinc - #12-24 x 3" Qty-1000
$65.47
Check the items box you wish to purchase, then click
