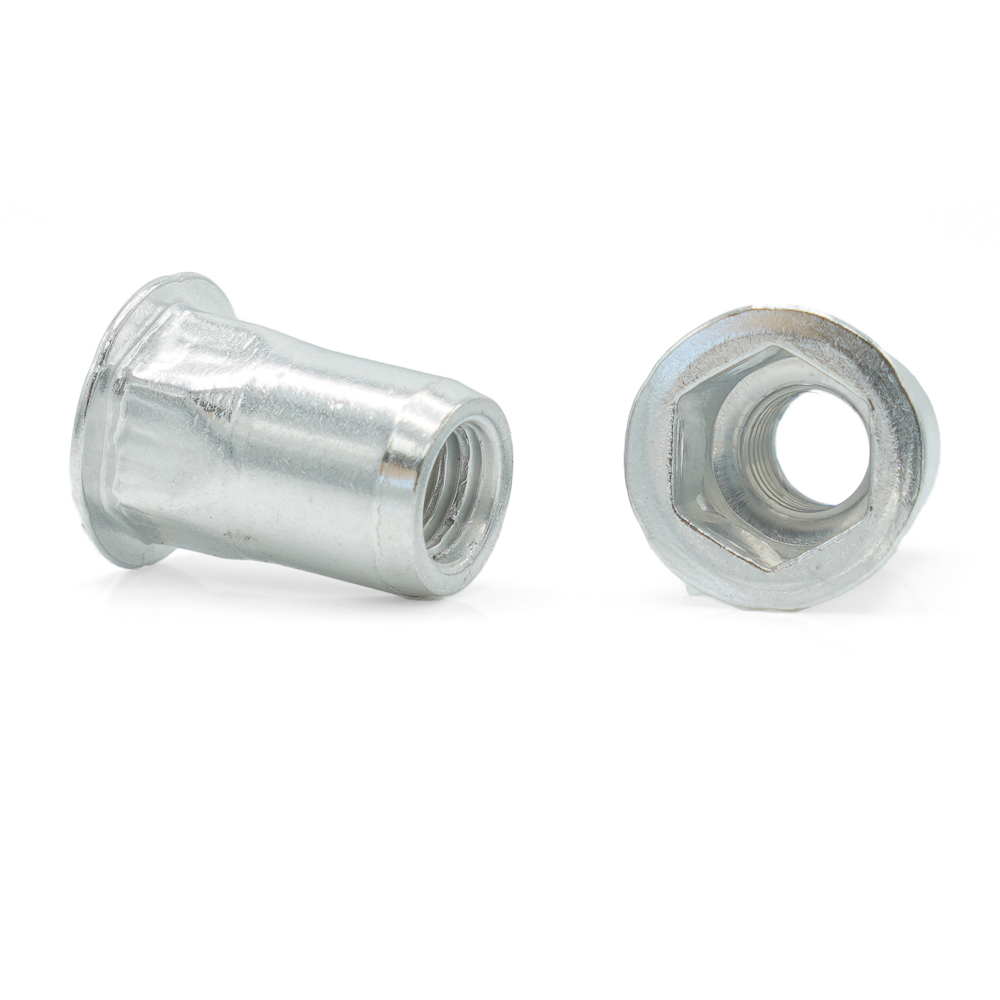

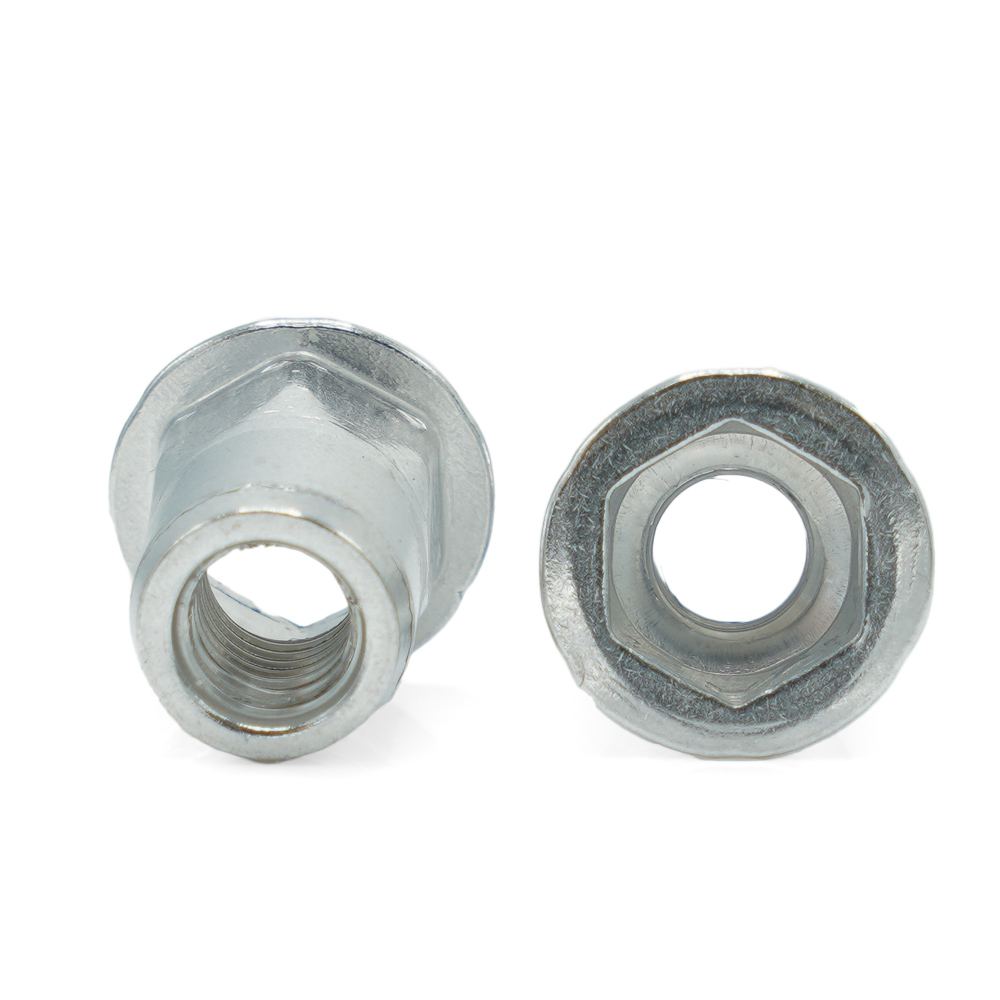

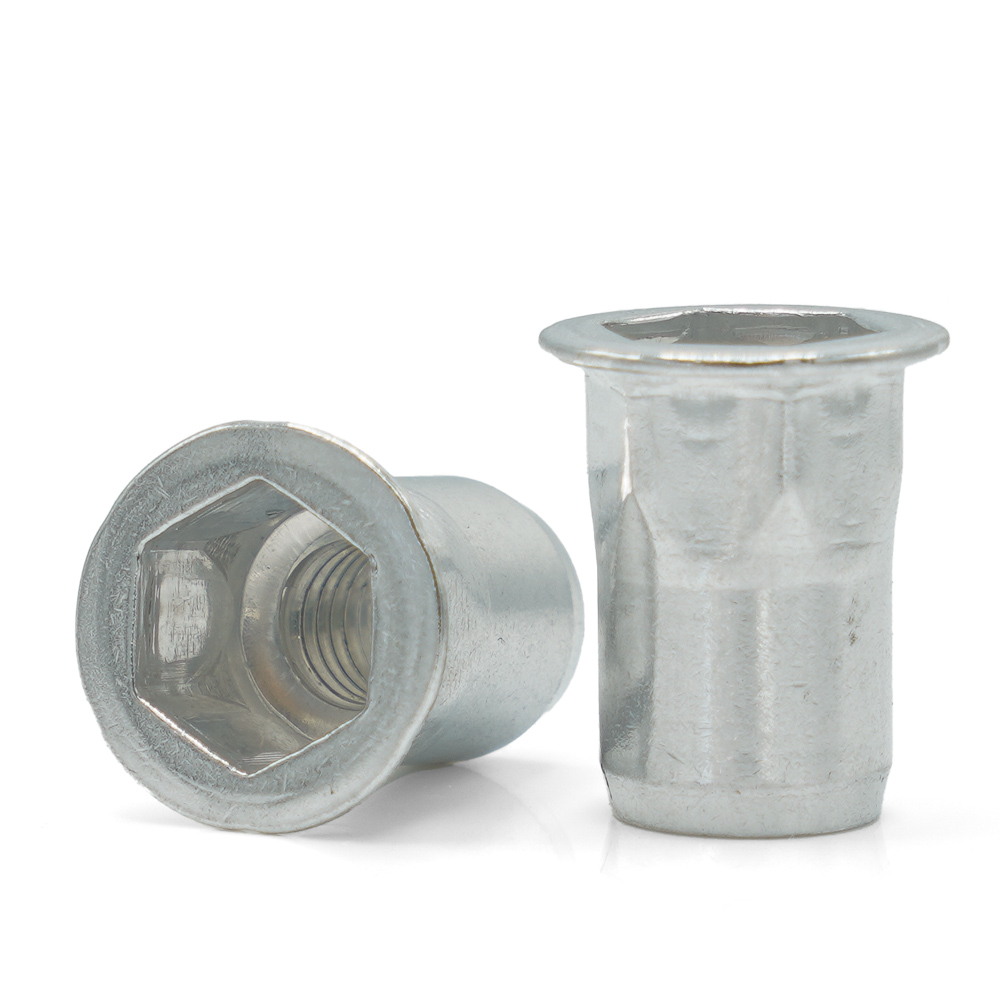

Metric Thinwall Half Hex Low Profile Head Rivet Nut - Aluminium

Metric Thinwall Half Hex Low Profile Head Rivet Nut - Aluminium

Flanged Insert With An Aluminium Internal Threaded Nut

• Half Hexagon shaped Rivet Nuts
• For use in hexagonal holes
• Low profile head installs near flush
• Resistant to Atmospheric Corrosion
• Compatible with Spin-Spin or Spin-Pull tools

Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blind”, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.

Sizes listed as Diameter - Thread Count x Length

SKU Thread Size Grip Range Length Installed Length Head Diameter Head Height (Nominal) Body Dia Max Hole Size Across Flats
1600-008-002 M6-1.0 0.7 - 4.2 14.86 10.16 12.96 0.76 9.5 9.55
This item qualifies for FREE SHIPPING on orders $99+
Select Products Below
See Product Specifications
Select Products Below
See Product Specifications
Size:
Qty
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Loading ...
Product Specifications
Color
Silver
Head Style
Low Profile
Material
Aluminium
Product Type
Rivet Nut
Standards Met
ROHS Compliant
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
