Metric Flange Bolts, DIN 6921, Class 10.9 Zinc Plated Steel, M10-1.50 x 16M
Zinc Plated Class 10.9 Steel Hex Head Flange Bolts
| Quantity | Unit price |
|---|---|
| To 99 |
$0.80*
|
| To 999 |
$0.47*
|
| From 1000 |
$0.43*
|
- Across Flats (Width): 15mm
- Color: Silver
- Diameter: M10
- Drive Style: External Hex
- Head Type: Hex Flange Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Fit: 6g
- Flange Diameter: Max 22.30mm
- Grade: Class 10.9
- Head Height Basic: Max 8.69mm - Min 8.26mm
- Head Height Max: 9.20mm
- Head Size: 15mm
- Head Style: Hex Flange
- Length: 16
- Material: Steel
- Product Type: Metric Flange Bolts
- Standards Met: DIN 6921
- System of Measurement: Metric
- Thread Diameter: M10 (10mm)
- Thread Direction: Right Hand
- Thread Pitch: 1.50 mm
- Thread Size: M10
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- M10-1.50 (DIN 6921 sizing standards)
- Hex bolt with flange designed to be driven by a wrench or socket
- Also referred to as metric flange tap bolts
- Flange head to prevent pull-through and distribute pressure across a wider surface area
- Class 10.9 Steel
- Zinc Plated finish for durability
- Built in integral washer to distribute pressure over a greater surface area and prevent pull-through

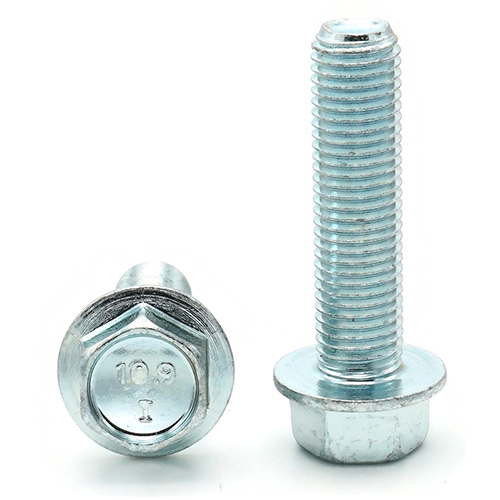

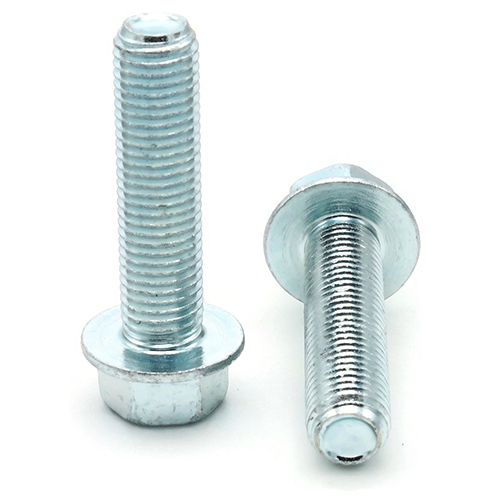

A hex flange bolt is a fully threaded hex bolt with an integral washer designed to prevent pull through of the bolt. Flange bolts in this selection are made of Class 10.9 (the Metric Grade 8 equivalent), and are zinc plated for corrosion resistance and durability.
A Hex Bolt is measured as: Diameter - Thread Pitch x Length from Under Head
Product number:
1022-226-002
