Tamper Proof Machine Screws, One Way Round Head, Stainless Steel 18-8, 1/4"-20 x 1/2"
Diameter - Thread Pitch: 1/4"-20
| Quantity | Unit price |
|---|---|
| To 99 |
$0.60*
|
| To 999 |
$0.40*
|
| From 1000 |
$0.35*
|
- ANSI: B1.1
- Class: 2A
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drive Style: One Way
- Elongation: 10% - 25%
- Head Type: Round Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 18-8
- Head Diameter: Max 0.437 - Min 0.419
- Head Style: Round
- Length: 1/2"
- Material: Stainless Steel
- Overall Head Height: Max 0.132 - Min 0.122
- Part Number: 787392591056
- Product Type: One Way Round Head Tamper Proof Machine Screws
- Size: 1/4-20 x 1/2"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Diameter: 1/4" (#14)
- Thread Diameter Major: 0.2489
- Thread Diameter Minor: 0.2408
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

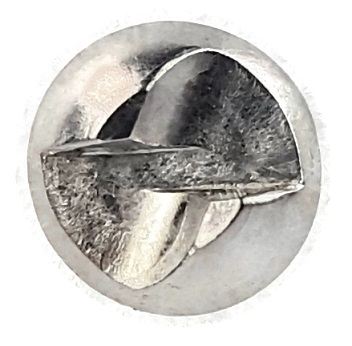

- One way screws are driven by a slotted or flat head drive
- Commonly seen in public places where theft or vandalism is considered a risk
- Very difficult to remove
- A machine screw is commonly identified by its small size
- Recommended for long lasting applications
- Corrosion resistant
- Suitable for exterior applications where freshwater moisture is present

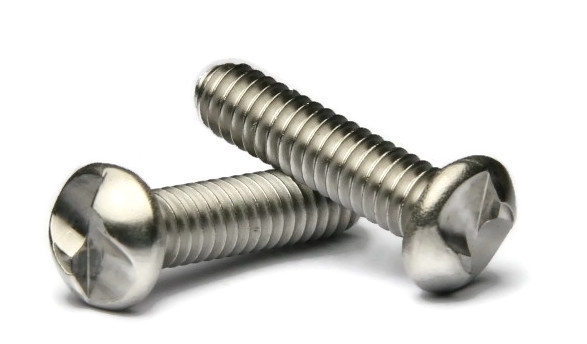

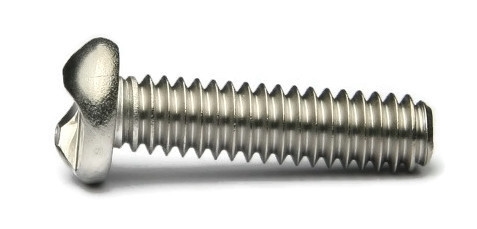

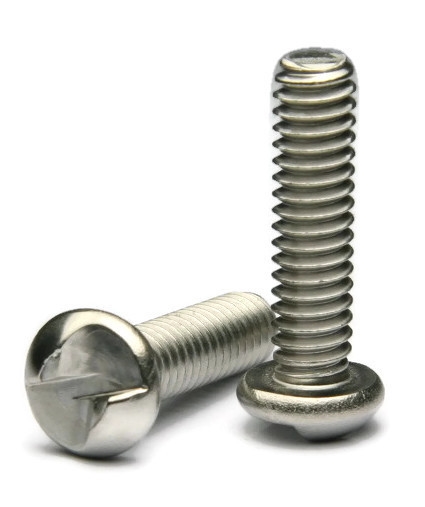

1/4"-20 One way round head security machine screws are available in grade 18-8 stainless steel.
Product number:
6208-012-0002
