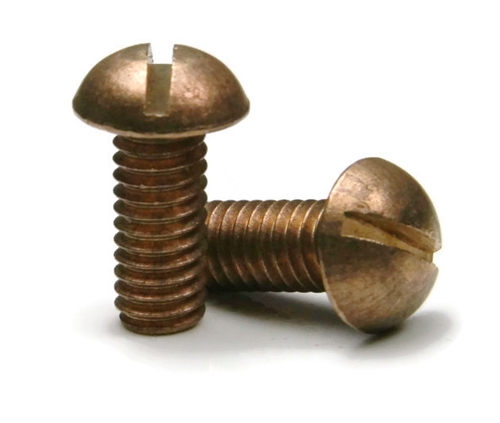

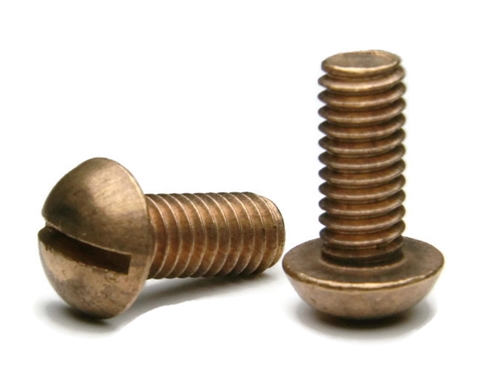

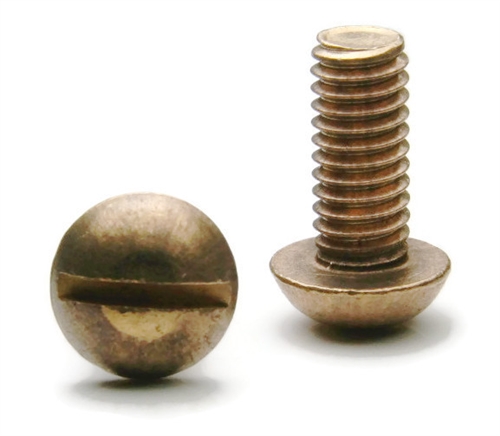

#10-24 Slotted Round Head Machine Screw Silicon Bronze

#10-24 Silicon Bronze Slotted Round Head Machine Screws

Diameter - Thread Pitch: #10-24


#10-24 Silicon bronze slotted round head machine screws:

  • Slotted drive style designed to be driven by a flat head or slotted bit or screwdriver
  • ASME standards specific
  • Feature a domed top that looks like a half sphere
  • Made of copper, silicon and various other alloys (zinc, tin, iron and manganese)
  • Can be used in marine, corrosive and high heat environments
  • Often used for:
    • Plumbing
    • Electrical
    • Tattoo Machines
    • Power Plants
NOTE: Color and sheen may vary

Select Products Below
Product Specifications
ANSI
B18.6.3
Class
2A
Corrosion Resistant
Yes
Drive Style
Slotted
Head Diameter
Max 0.359 - Min 0.334
Head Style
Round Head
Material
Silicon Bronze
Overall Head Height
Max 0.137 - Min 0.123 (From Bottom to Top of Head)
Product Type
Slotted Round Head Machine Screws
Thread Diameter
(#10) Max 0.1890 - Min 0.1818
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch (Coarse)
Thread Standard
UNC
