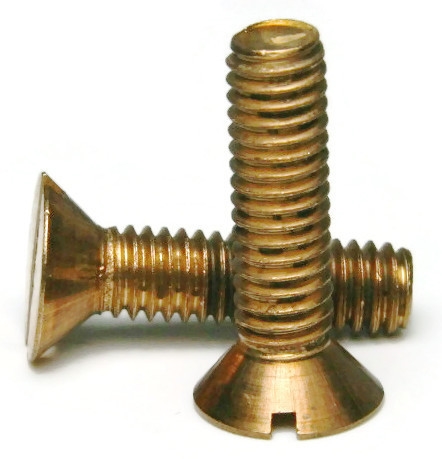

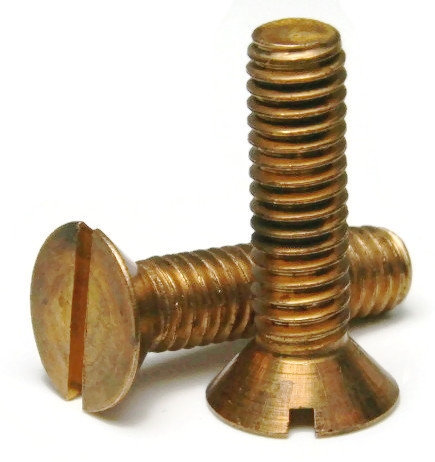

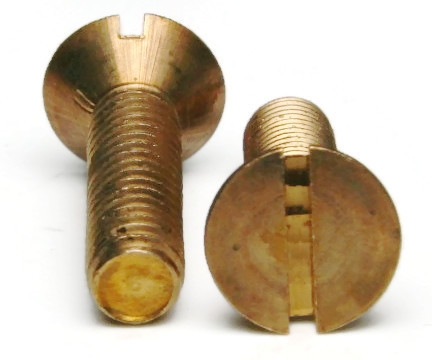

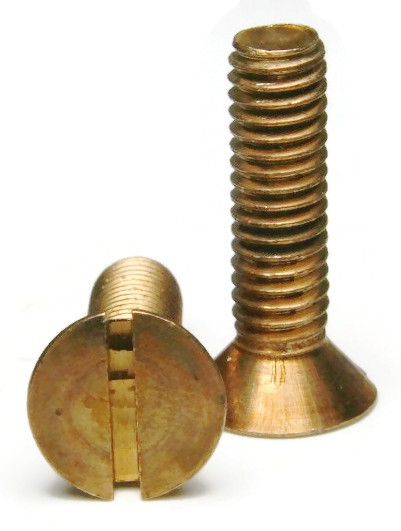

1/4"-20 Slotted Flat Head Machine Screw Silicon Bronze

1/4"-20 Silicon Bronze Slotted Flat Head Machine Screws

Diameter - Thread Pitch: 1/4"-20


1/4"-20 Silicon bronze slotted flat head machine screws

  • ASME Standards specific
  • Countersunk head that runs flush with application surface
  • Used in marine, corrosive and high heat environments
  • Often used in plumbing and electrical applications
NOTE: Color and sheen may vary

Select Products Below
Product Specifications
ANSI
B18.6.3
Brand
Albany County Fasteners
Color
Bronze
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
1/4"
Drive Style
Slotted
Head Diameter
Max 0.507 - Min 0.452
Head Style
Flat
Material
Silicon Bronze
Overall Head Height
Max 0.153 - Min 0.131�
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
Thread Diameter
(1/4") Max 0.2489 - Min 0.2408
Thread Direction
Right
Thread Pitch (Count)
20
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
