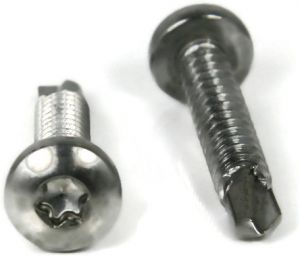

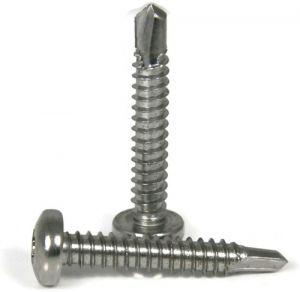

Sheet Metal Screws, Torx Star Drive (T-27) Pan Head, SD TEK 3, Stainless Steel 410, #12 x 1-1/2"
| Quantity | Unit price |
|---|---|
| To 99 |
$0.79*
|
| To 999 |
$0.57*
|
| From 1000 |
$0.52*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #12
- Drive Style: Star
- Elongation: 30%
- Grade: 410
- Hardness: 40 Rockwell C
- Head Diameter: Max 0.425 - Min 0.407
- Head Style: Pan
- Length: 1-1/2"
- Material (Duplicate): 410 Stainless Steel
- Material: 410 Stainless Steel
- Overall Head Height: Max 0.125 - Min 0.112 (From Bottom to Top of Head)
- Part Number: 661291580819
- Pattern: Torx Tamper Proof Self Drilling Screw
- Point Type: TEK
- Product Type: Home > Sheet Metal Screws > Torx Pan Head Self Drill > 410 Stainless Steel
- Size: #12 x 1-1/2"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Tensile PSI: 180,000 PSI Heat Treated
- Thread Diameter Major: (#12) 0.215
- Thread Diameter Minor: (#12) 0.164
- Thread Direction: Right Hand
- Thread Pitch: 14 Per Inch
- Thread Size: #12
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Star Drive: T27
- Weight: 1 lb
Sheet Metal Screws, Torx Star Drive (T-27) Pan Head, SD TEK 3, Stainless Steel 410, #12 x 1-1/2"
Product number:
1010-006-0032
