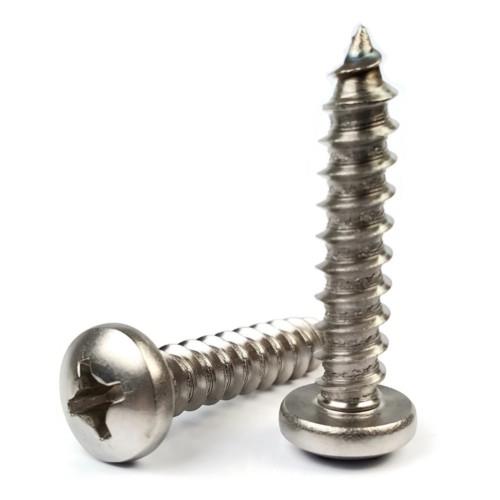

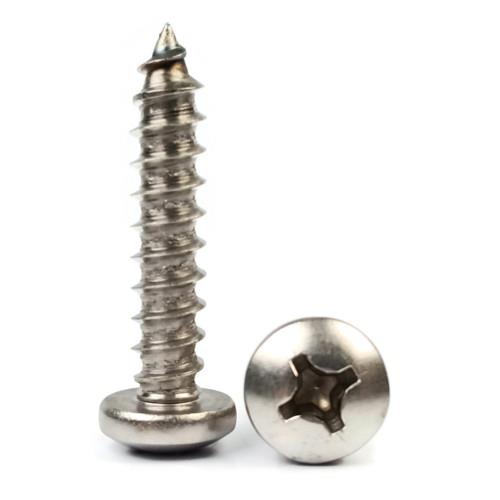

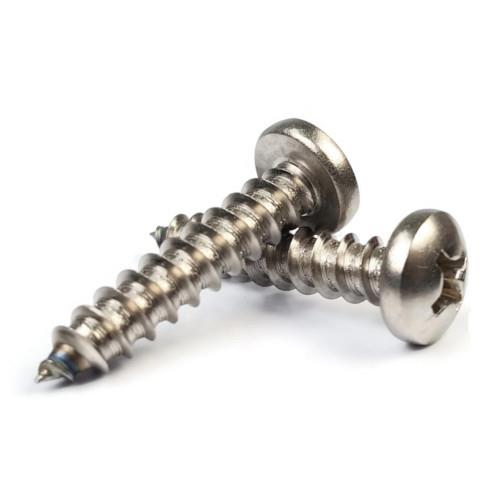

Sheet Metal Screws, Phillips Pan Head, Stainless Steel 18-8, #8 x 1/4"

Diameter - Thread Pitch: #8-15
  • #8-15
  • Cut into sheet metal, plastic or wood
  • Fully threaded
  • Great for attaching metal to wood
  • Strong retention in wood
  • Also known as Self Piercing Screws or Self Tapping Screws
  • Pan head - rounded top with an undercut (flat bottom) head
  • Sizes listed below as: Diameter - Thread Pitch
  • A 18-8 stainless steel Phillips pan head sheet metal screw is corrosion and rust resistant
  • Ideal for fresh water and exterior weather exposure
Type A Sheet Metal Screw Thread Specifications
Product number: 3240002
Print this page
Click on a size/sku in the table to view product-specific details and specifications.

Specifications

  • Color (Duplicate): Silver
  • Color: Silver
  • Condition: New
  • Corrosion Resistant: Yes
  • Diameter: #8
  • Drive Style: Phillips
  • Elongation: 30%
  • Head Type: Pan Head
  • Thread Direction: Right Hand
  • Thread Type: Coarse
  • Grade: 18-8
  • Hardness: 100 Rockwell B
  • Head Height Max: 0.096
  • Head Diameter: Max 0.322 - Min 0.306
  • Head Style: Pan
  • Length: 1/4"
  • Material (Duplicate): 18-8 Stainless Steel
  • Material: Stainless Steel
  • Overall Head Height: Max 0.096 - Min 0.085
  • Part Number: 717029116512
  • Phillips Drive: #2
  • Point Type: A
  • Product Type: Sheet Metal Screws
  • Reduction: 0.4
  • Size Type: Regular
  • Standards Met: ANSI B18.6.4
  • System of Measurement: Inch
  • Tensile PSI: 100,000 - 125,000 PSI
  • Thread Diameter Major: (#8) 0.168" - 0.162"
  • Thread Diameter Minor: (#8) 0.123" - 0.116"
  • Thread Direction: Right Hand
  • Thread Pitch: 15 Per Inch
  • Thread Size: #8
  • Thread Standard: UNC
  • Thread Type: Coarse
  • Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
  • Weight: 1 lb
  • Yield PSI: 55,000 - 75,000 PSI

Frequently Used With

Phillips Power Bits, #2, Length 2" Phillips Power Bits, #2, Length 2"
Volume Pricing*
1
$1.04
($1.04/ea)
10
$8.10
($0.81/ea)
50
$38.00
($0.76/ea)
$0.00
ACR Phillips Power Bits, #2 x 2" ACR Phillips Power Bits, #2 x 2"
Volume Pricing*
1
$1.06
($1.06/ea)
10
$10.00
($1.00/ea)
50
$48.00
($0.96/ea)
$0.00
Norseman Magnum Super Premium Jobber Length Drill Bits, #29 Norseman Magnum Super Premium Jobber Length Drill Bits, #29
Volume Pricing*
1
$2.94
($2.94/ea)
10
$24.50
($2.45/ea)
$0.00
Lock Washers, Split Ring, Stainless Steel 304, #8 (.167 ID x .293 OD x .040 Thick) Lock Washers, Split Ring, Stainless Steel 304, #8 (.167 ID x .293 OD x .040 Thick)
Volume Pricing*
1
$0.07
($0.07/ea)
100
$3.00
($0.03/ea)
1000
$20.00
($0.02/ea)
$0.00
Flat Washers, Stainless Steel 304, #8 (.174 ID x .375 OD x .031 Thick) Flat Washers, Stainless Steel 304, #8 (.174 ID x .375 OD x .031 Thick)
Volume Pricing*
1
$0.07
($0.07/ea)
100
$3.00
($0.03/ea)
1000
$20.00
($0.02/ea)
$0.00
Bolts, Screws & Nuts Gauge Bolts, Screws & Nuts Gauge
Volume Pricing*
$9.00 ea.
$0.00
Select Size/SKU & Quantity
15 Available Sizes
SIZE/SKU Review Volume Pricing* Enter Any Qty
#8-15 x 1/4"
3240002
1
$0.08 ($0.08/ea)
100
$6.00 ($0.06/ea)
1000
$50.00 ($0.05/ea)
$0.00
#8-15 x 5/16"
3240005
1
$0.08 ($0.08/ea)
100
$6.00 ($0.06/ea)
1000
$50.00 ($0.05/ea)
$0.00
#8-15 x 3/8"
3240012
1
$0.08 ($0.08/ea)
100
$6.00 ($0.06/ea)
1000
$50.00 ($0.05/ea)
$0.00
#8-15 x 1/2"
3240022
1
$0.10 ($0.10/ea)
100
$7.00 ($0.07/ea)
1000
$60.00 ($0.06/ea)
$0.00
#8-15 x 5/8"
3240032
1
$0.12 ($0.12/ea)
100
$7.00 ($0.07/ea)
1000
$60.00 ($0.06/ea)
$0.00
#8-15 x 3/4"
3240042
1
$0.14 ($0.14/ea)
100
$7.00 ($0.07/ea)
1000
$60.00 ($0.06/ea)
$0.00
#8-15 x 7/8"
3240052
1
$0.14 ($0.14/ea)
100
$8.00 ($0.08/ea)
1000
$70.00 ($0.07/ea)
$0.00
#8-15 x 1"
3240062
1
$0.15 ($0.15/ea)
100
$9.00 ($0.09/ea)
1000
$80.00 ($0.08/ea)
$0.00
#8-15 x 1-1/8"
3240072
1
$0.15 ($0.15/ea)
100
$11.00 ($0.11/ea)
1000
$90.00 ($0.09/ea)
$0.00
#8-15 x 1-1/4"
3240082
1
$0.15 ($0.15/ea)
100
$11.00 ($0.11/ea)
1000
$90.00 ($0.09/ea)
$0.00
#8-15 x 1-1/2"
3240092
1
$0.17 ($0.17/ea)
100
$13.00 ($0.13/ea)
1000
$120.00 ($0.12/ea)
$0.00
#8-15 x 1-3/4"
3240102
1
$0.20 ($0.20/ea)
100
$17.00 ($0.17/ea)
1000
$140.00 ($0.14/ea)
$0.00
#8-15 x 2"
3240112
1
$0.22 ($0.22/ea)
100
$18.00 ($0.18/ea)
1000
$150.00 ($0.15/ea)
$0.00
#8-15 x 2-1/2"
3240122
1
$0.31 ($0.31/ea)
100
$23.00 ($0.23/ea)
1000
$190.00 ($0.19/ea)
$0.00
#8-15 x 3"
3240132
1
$0.36 ($0.36/ea)
100
$25.00 ($0.25/ea)
1000
$210.00 ($0.21/ea)
$0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.
