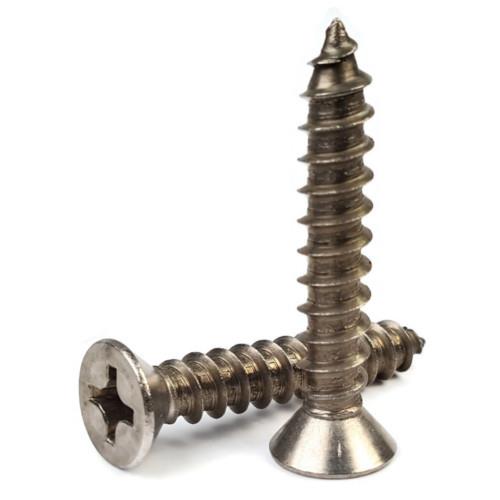

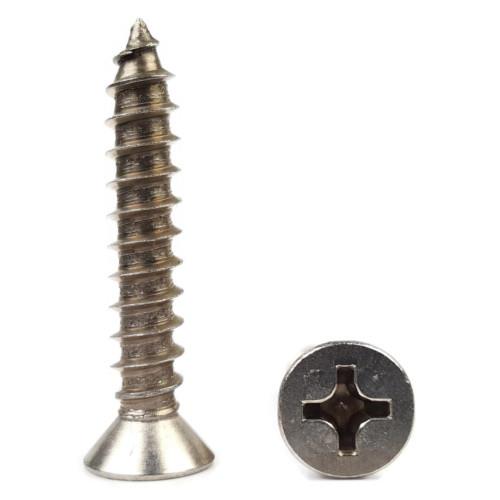

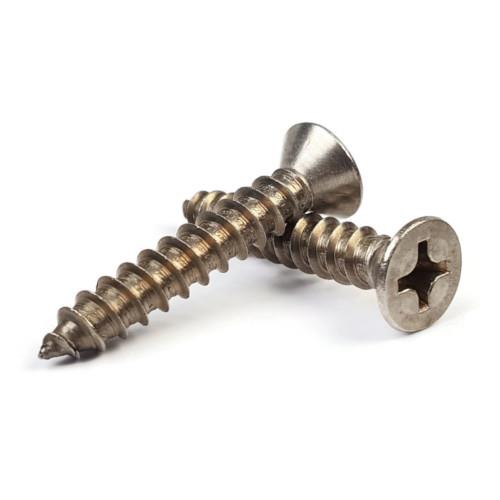

#10 Phillips Flat Head Sheet Metal Screws 18-8 Stainless Steel

#10-12 Stainless Steel Phillips Flat Head Sheet Metal Screws

Diameter - Thread Pitch: #10-12


  • #10-12
  • Fully threaded
  • Cut into wood, plastic or sheet metal with ease
  • Cutting threads for a better hold
  • Great for attaching metal hardware to wood
  • 18-8 Stainless steel Phillips flat head sheet metal screws are corrosion resistant and considered the industry standard
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove

Select Products Below
Product Specifications
ANSI
ANSI B18.6.4
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#10
Drive Style
Phillips
Elongation
30%
Hardness
100 Rockwell B
Head Diameter
Max 0.385 - Min 0.340
Head Height Max
0.116
Head Style
Flat
Material
Stainless Steel 18-8
Overall Head Height
Max 0.116 - Min 0.098
Phillips Drive
#2
Point Type
A
Product Type
Sheet Metal Screws
Reduction
40%
Standards Met
ANSI B18.6.4
Tensile PSI
100,000 - 125,000 PSI
Thread Diameter Major
(#10) 0.194 - 0.188
Thread Diameter Minor
(#10) 0.133 - 0.126
Thread Direction
Right Hand
Thread Pitch (Count)
12
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
