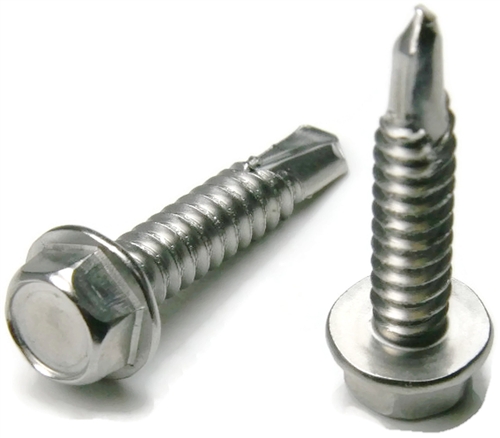

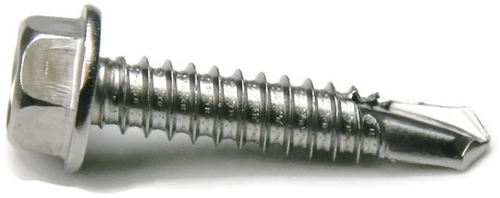

#14-14 Hex Washer Head Sheet Metal Screws Drill Point 410 Stainless Steel

#14-14 Stainless Steel Hex Washer Head Self Drilling Screws

Diameter - Thread Pitch: #14-14


  • #14-14
  • Hexagon drive for use with a wrench or socket
  • Fully Threaded from tip to head
  • Integral washer at the top of the head
  • TEK Self drilling screws
  • While not universal, these screws are commonly used in license plates
  • 410 Stainless steel hex washer head self drilling screws are hardened to make installation in most materials easier
  • 410 Stainless steel is hardened and rust resistant
  • NOTE: Sheet metal screws provide excellent retention but are very difficult to remove
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 3/4"
SKU #7040002
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 3/4"
SKU #7040002
1
NA
25
$11.00 (0.44/ea)
100
$40.00 (0.4/ea)
1000
$350.00 (0.35/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1"
SKU #7040012
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1"
SKU #7040012
1
NA
25
$12.50 (0.5/ea)
100
$45.00 (0.45/ea)
1000
$390.00 (0.39/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-1/4"
SKU #7040022
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-1/4"
SKU #7040022
1
NA
25
$13.00 (0.52/ea)
100
$47.00 (0.47/ea)
1000
$410.00 (0.41/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-1/2"
SKU #7040032
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-1/2"
SKU #7040032
1
NA
25
$15.25 (0.61/ea)
100
$55.00 (0.55/ea)
1000
$480.00 (0.48/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-3/4"
SKU #7040042
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 1-3/4"
SKU #7040042
1
NA
25
$17.00 (0.68/ea)
100
$62.00 (0.62/ea)
1000
$540.00 (0.54/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 2"
SKU #7040052
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 2"
SKU #7040052
1
NA
25
$19.25 (0.77/ea)
100
$70.00 (0.7/ea)
1000
$620.00 (0.62/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 2-1/2"
SKU #7040062
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 2-1/2"
SKU #7040062
1
$1.03 (1.03/ea)
25
$23.50 (0.94/ea)
100
$85.00 (0.85/ea)
1000
$750.00 (0.75/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 3"
SKU #7040072
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 3"
SKU #7040072
1
$1.13 (1.13/ea)
25
$25.75 (1.03/ea)
100
$94.00 (0.94/ea)
1000
$830.00 (0.83/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 4"
SKU #7040082
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 4"
SKU #7040082
1
$3.96 (3.96/ea)
25
$96.00 (3.84/ea)
100
$367.00 (3.67/ea)
1000
$3,650.00 (3.65/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 5"
SKU #7040092
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 5"
SKU #7040092
1
$5.10 (5.1/ea)
25
$122.50 (4.9/ea)
100
$470.00 (4.7/ea)
1000
$4,670.00 (4.67/ea)
Subtotal: $0.00 /
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 6"
SKU #7040102
Hex Washer Head Self Driller TEK-3 410 SS - #14 x 6"
SKU #7040102
1
$5.61 (5.61/ea)
25
$134.75 (5.39/ea)
100
$514.00 (5.14/ea)
1000
$5,120.00 (5.12/ea)
Subtotal: $0.00 /




Product Specifications
ANSI
B18.6.4
Color
Silver
Corrosion Resistant
Yes
Diameter
#14
Drive Style
External Hex
Driver Max RPM
2,300
Grade
410
Hardness
40 Rockwell C
Head Size
3/8"
Head Style
Hex Washer
Material
Stainless Steel
Point Type
TEK
Product Type
Self Drilling Screws
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK-3 (0.353)
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
(#14) 0.246"
Thread Diameter Minor
(#14) 0.192"
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Wrench Size
3/8"
