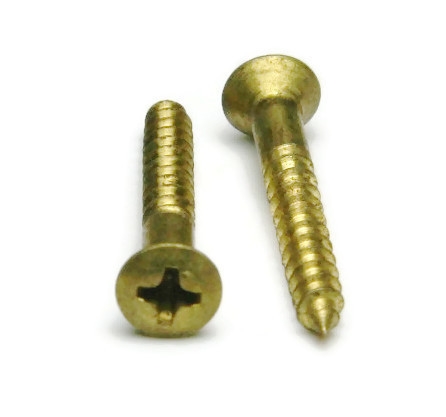

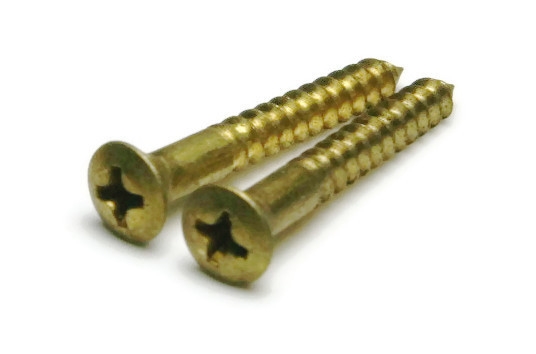

#10-13 Phillips Oval Head Wood Screws Solid Brass

#10-13 Brass Phillips Oval Head Wood Screws

Diameter - Thread Pitch: #10-13


#10 Brass Phillips oval head wood screws are designed to hold two pieces of wood together tightly and efficiently.

  • Partially threaded with a shoulder
  • Designed to slide through top piece of wood and provide a strong hold
  • Features a countersunk and undercut head
  • Phillips Drive Style
  • Very corrosion resistant but also very soft material
  • Not suitable for all applications
  • Used in marine, saltwater, high heat, and other harsh environments
NOTE: Color and sheen may vary for brass and silicon bronze fasteners.


Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.

Sizes Listed As:
Diameter x Length from Top of Head

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Oval Head Wood Screws Brass - #10 x 1"
SKU #4800-012-0042
Phillips Oval Head Wood Screws Brass - #10 x 1"
SKU #4800-012-0042
1
$0.24 (0.24/ea)
100
$20.00 (0.2/ea)
1000
$180.00 (0.18/ea)
Subtotal: $0.00 /
Phillips Oval Head Wood Screws Brass - #10 x 1-1/4"
SKU #4800-012-0052
Phillips Oval Head Wood Screws Brass - #10 x 1-1/4"
SKU #4800-012-0052
1
$0.57 (0.57/ea)
100
$45.00 (0.45/ea)
1000
$430.00 (0.43/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$0.12 (0.12/ea)
100
$8.00 (0.08/ea)
1000
$80.00 (0.08/ea)
Subtotal: $0.00 /

Product Specifications
Color
Yellow
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#10
Drive Style
Phillips
Head Diameter
Max 0.385
Head Style
Oval
Material
Brass
Product Type
Wood Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#10) Max 0.194 - Min 0.153
Thread Direction
Right Hand
Thread Pitch (Count)
13 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
