Sherex Tec Series Alloy Steel Wedge Pair Lock Washers

Alloy Steel Wedge Pair Lock Washers

Sherex Lock Washers | Outperform Most Other Locking Fasteners


Sherex Lock Washers
  • Come in pre-assembled glued pairs
  • Unrivaled locking ability - MIL-STD-1312-7 Vibration proof
  • Do not require retightening after installation
  • Heavy duty self locking design
  • For use with bolts up to Class 12.9, Grade 8
  • Secure joints with tension not friction
  • Seizing ridges on the outer surface
  • Reusable as long as not too worn or deformed
  • Cams on inner surface
  • Made of SCM 435 Alloy Steel
  • Coated in Delta ProtektĀ® KL100 and V H302 GZ
  • Protection to 600 hours of salt spray
  • Also available in Metric Sizes
  • Full TEC Series Catalog

Wedge style lock washers are used in pairs to create an unrivaled locking mechanism beneath the head of a bolt. Unlike more common style lock washers that use friction to prevent loosening, wedge style lock washers rely on tension to create a more secure hold. A mild adhesive should be installed between the two washers and then added to the fastener assembly beneath the bolt head.

Used In:

  • Agriculture and Construction
  • Power Generation
  • Gas and Oil Industries
  • Mining
  • General Machinery Manufacturing

When the assembly is exposed to vibration, the bolt or nut will attempt to spin loose. This washer combination increases the amount of torque needed to loosen the fastener which will prevent the vibration or load from loosening a fastener. These washers can be used with lubrication.

*Note: Weight and thickness of pairs may vary slightly. These washers should NOT be used in free moving/rotating surfaces or in very soft base materials such as wood.

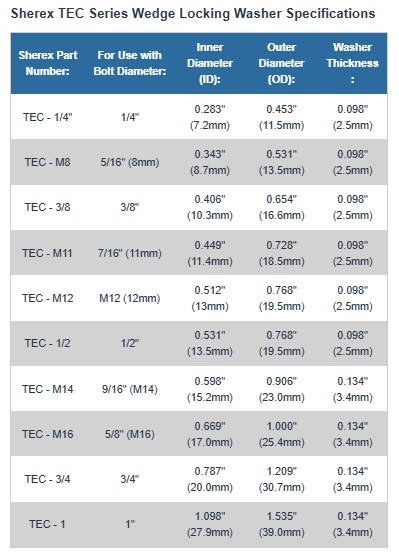

Sherex TEC Series Wedge Locking Washer Specifications
Sherex Part Number: For Use with Bolt Diameter: Inner Diameter (ID): Outer Diameter (OD): Washer Thickness:
TEC - 1/4" 1/4" 0.283" (7.2mm) 0.453" (11.5mm) 0.098" (2.5mm)
TEC - M8 5/16" (8mm) 0.343" (8.7mm) 0.531" (13.5mm) 0.098" (2.5mm)
TEC - 3/8 3/8" 0.406" (10.3mm) 0.654" (16.6mm) 0.098" (2.5mm)
TEC - M11 7/16" (11mm) 0.449" (11.4mm) 0.728" (18.5mm) 0.098" (2.5mm)
TEC - M12 M12 (12mm) 0.512" (13mm) 0.768" (19.5mm) 0.098" (2.5mm)
TEC - 1/2 1/2" 0.531" (13.5mm) 0.768" (19.5mm) 0.098" (2.5mm)
TEC - M14 9/16" (M14) 0.598" (15.2mm) 0.906" (23.0mm) 0.134" (3.4mm)
TEC - M16 5/8" (M16) 0.669" (17.0mm) 1.000" (25.4mm) 0.134" (3.4mm)
TEC - 3/4 3/4" 0.787" (20.0mm) 1.209" (30.7mm) 0.134" (3.4mm)
TEC - 1 1" 1.098" (27.9mm) 1.535" (39.0mm) 0.134" (3.4mm)
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1/4"
SKU #14890-002-002
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1/4"
SKU #14890-002-002
1
$0.94 (0.94/ea)
10
$8.90 (0.89/ea)
25
$21.50 (0.86/ea)
100
$70.00 (0.7/ea)
1000
$680.00 (0.68/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 5/16"
SKU #14890-002-012
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 5/16"
SKU #14890-002-012
1
$0.99 (0.99/ea)
10
$9.40 (0.94/ea)
25
$22.00 (0.88/ea)
100
$74.00 (0.74/ea)
1000
$720.00 (0.72/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 3/8"
SKU #14890-002-022
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 3/8"
SKU #14890-002-022
1
$1.09 (1.09/ea)
10
$10.60 (1.06/ea)
25
$25.00 (1/ea)
100
$86.00 (0.86/ea)
1000
$830.00 (0.83/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 7/16"
SKU #14890-002-032
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 7/16"
SKU #14890-002-032
1
$1.56 (1.56/ea)
10
$15.20 (1.52/ea)
25
$36.75 (1.47/ea)
100
$125.00 (1.25/ea)
1000
$1,240.00 (1.24/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1/2"
SKU #14890-002-042
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1/2"
SKU #14890-002-042
1
$1.67 (1.67/ea)
10
$16.40 (1.64/ea)
25
$40.00 (1.6/ea)
100
$137.00 (1.37/ea)
1000
$1,360.00 (1.36/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 9/16"
SKU #14890-002-052
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 9/16"
SKU #14890-002-052
1
$2.24 (2.24/ea)
10
$21.80 (2.18/ea)
25
$52.75 (2.11/ea)
100
$182.00 (1.82/ea)
1000
$1,800.00 (1.8/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 5/8"
SKU #14890-002-062
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 5/8"
SKU #14890-002-062
1
$2.43 (2.43/ea)
10
$23.90 (2.39/ea)
25
$57.50 (2.3/ea)
100
$200.00 (2/ea)
1000
$1,980.00 (1.98/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 3/4"
SKU #14890-002-072
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 3/4"
SKU #14890-002-072
1
$3.66 (3.66/ea)
10
$35.40 (3.54/ea)
25
$85.25 (3.41/ea)
100
$296.00 (2.96/ea)
1000
$2,940.00 (2.94/ea)
Subtotal: $0.00 /
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1"
SKU #14890-002-082
Sherex Tec Series Alloy Steel Wedge Pair Lock Washers 1"
SKU #14890-002-082
1
$6.32 (6.32/ea)
10
$60.60 (6.06/ea)
25
$146.00 (5.84/ea)
100
$511.00 (5.11/ea)
1000
$5,090.00 (5.09/ea)
Subtotal: $0.00 /

Product Specifications
Corrosion Resistant
Yes
Grade
SCM435 Alloy
Material
Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
