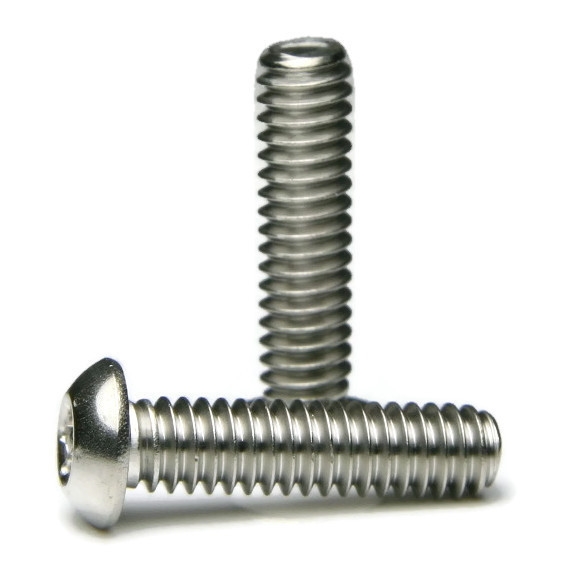

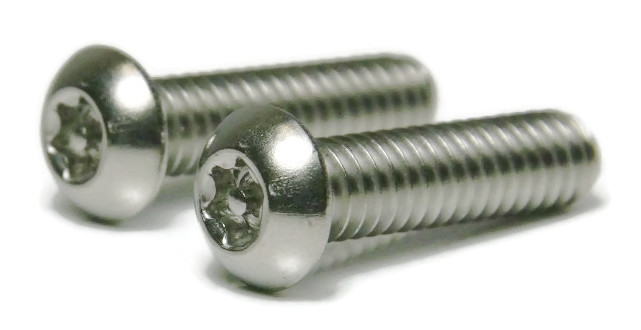

5/16-18 (T-40) Star Drive 6-Lobe Button Cap Machine Screw 18-8 Stainless Steel

5/16"-18 Star Drive with Pin Security Button Head Machine Screws

Diameter - Thread Pitch: 5/16"-18 | Security Star Drive Size - T-40


  • Tamper Proof Star Drive Size - T-40
  • Torx styled Star (with pin) drive add security to machine screws by using an uncommon drive
  • Less likely to strip than Phillips when installed correctly
  • Primarily for metal to metal applications
  • A machine screw is commonly identified by its small size
  • 18-8 Stainless steel is the fastener industry standard adding rust and corrosion resistance to an assembly

5/16-18 Star with pin button head security machine screws are available in grade 18-8 stainless steel.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1/2
SKU #910002
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1/2
SKU #910002
1
$1.99 (1.99/ea)
100
$177.00 (1.77/ea)
1000
$1,760.00 (1.76/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 3/4
SKU #910012
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 3/4
SKU #910012
1
$1.80 (1.8/ea)
100
$164.00 (1.64/ea)
1000
$1,610.00 (1.61/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1
SKU #910022
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1
SKU #910022
1
$1.90 (1.9/ea)
100
$173.00 (1.73/ea)
1000
$1,690.00 (1.69/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1-1/4
SKU #910032
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1-1/4
SKU #910032
1
$2.02 (2.02/ea)
100
$183.00 (1.83/ea)
1000
$1,810.00 (1.81/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1-1/2
SKU #910042
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 1-1/2
SKU #910042
1
$0.74 (0.74/ea)
100
$61.00 (0.61/ea)
1000
$560.00 (0.56/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 2
SKU #910052
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 2
SKU #910052
1
$2.46 (2.46/ea)
100
$223.00 (2.23/ea)
1000
$2,190.00 (2.19/ea)
Subtotal: $0.00 /
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 3
SKU #910062
Star Drive w/Pin TP, FT, T-40 Button Cap Screw 18/8 SS - 5/16-18 x 3
SKU #910062
1
$3.70 (3.7/ea)
100
$333.00 (3.33/ea)
1000
$3,300.00 (3.3/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$2.17 (2.17/ea)
100
$161.00 (1.61/ea)
1000
$1,480.00 (1.48/ea)
Subtotal: $0.00 /
1
$7.38 (7.38/ea)
10
$65.90 (6.59/ea)
50
$272.00 (5.44/ea)
Subtotal: $0.00 /
1
$16.35 (16.35/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
5/16"
Drive Style
Star (with Pin)
Grade
18-8
Head Diameter
Max 0.534 - Min 0.532
Head Height Max
0.171
Head Style
Button
Material
Stainless Steel
Overall Head Height
Max 0.171 - Min 0.169
Product Type
Tamper Proof Machine Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx TP Drive
T-40
