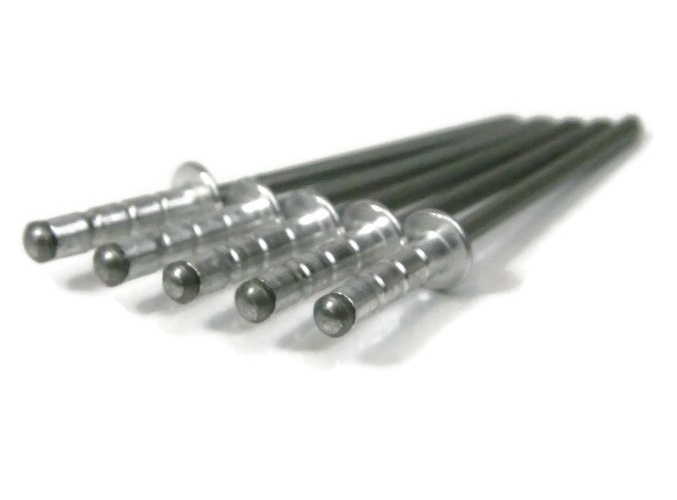

POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #6-3 thru #6-7 (.187-.437 MultiGrip)-

POP Rivet, or Blind Rivet, in Aluminum / Steel

3/16" or #6 (Rivet Sizing Chart)
Multi grip rivets can substitute conventional rivets
Have a grip range of different rivet sizes
One rivet has the equivalent for at least three rivet sizes
Used to join two materials together quickly
Hat: Aluminum | Mandrel: Steel
Aluminum rivets should never be used with stainless steel: Corrosion may occur

Product number: 1814-006-0012

Print this page

Specifications

Color: Silver
Condition: New
Diameter: #6
Drill (Hole) Size: #11
Head Type: Dome Head (Rivet)
Rivet Diameter Facet: #6 (3/16")
Flange Diameter Nominal: 0.375
Head Height Max: 0.06
Head Style: Dome
Mandrel Diameter Nominal: 0.114
Material: Aluminum / Steel
Nominal Size: #6
Other: Multi Grip
Part Number: 720572171822
Pilot Hole: 0.192 - 0.196
Product Type: Multi-Grip Blind Rivets
Rivet Diameter: (#6) 3/16" (.187)
Size Type: Regular
System of Measurement: Inch
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Resources Rivet Size Chart

Select Size/SKU & Quantity

4 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
6-2 Thru 6-4, 3/16" MultiGrip (0.062-0.250) 1814-006-0002	1 $0.11 ($0.11/ea) 100 $7.00 ($0.07/ea) 1000 $60.00 ($0.06/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #6-2 thru #6-4 (.062-.250 MultiGrip)- $0.00
6-3 Thru 6-7, 3/16" MultiGrip (0.187-0.437) 1814-006-0012	1 $0.11 ($0.11/ea) 100 $8.00 ($0.08/ea) 1000 $70.00 ($0.07/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #6-3 thru #6-7 (.187-.437 MultiGrip)- $0.00
6-6 Thru 6-9, 3/16" MultiGrip (0.275-0.598) 1814-006-0022	1 $0.11 ($0.11/ea) 100 $8.00 ($0.08/ea) 1000 $70.00 ($0.07/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #6-6 thru #6-9 (.275-.598 MultiGrip)- $0.00
6-10 Thru 6-12, 3/16" MultiGrip (0.438-0.750) 1814-006-0032	1 $0.13 ($0.13/ea) 100 $9.00 ($0.09/ea) 1000 $80.00 ($0.08/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #6-10 thru #6-12 (.438-.750 MultiGrip)- $0.00
