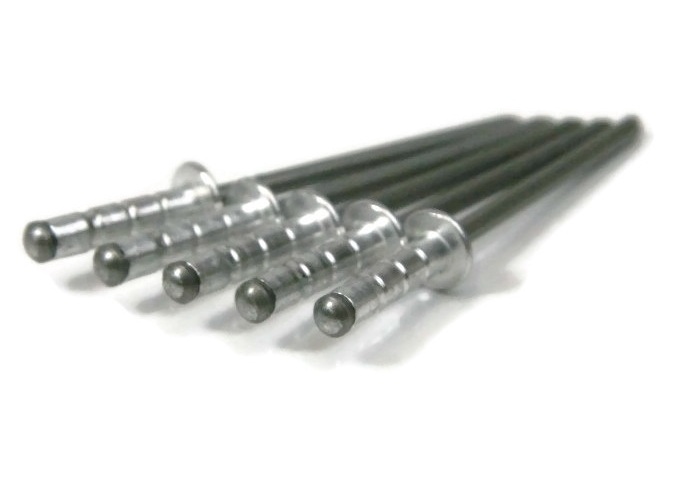

POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #5-2 thru #5-4 (.047-.276 MultiGrip)-

POP Rivet, or Blind Rivet, in Aluminum / Steel

5/32" or #5 (Rivet Sizing Chart)
Multi grip rivets can substitute conventional rivets
Have a grip range of different rivet sizes
One rivet has the equivalent for at least three rivet sizes
Used to join two materials together quickly
Hat: Aluminum | Mandrel: Steel
Aluminum rivets should never be used with stainless steel: Corrosion may occur

Product number: 1814-004-0002

Print this page

Specifications

Color: Silver
Condition: New
Diameter: #5
Drill (Hole) Size: #20
Head Type: Dome Head (Rivet)
Rivet Diameter Facet: #5 (5/32")
Flange Diameter Nominal: 0.312
Head Height Max: 0.05
Head Style: Dome
Mandrel Diameter Nominal: 0.095
Material: Aluminum / Steel
Nominal Size: #5
Other: Multi Grip
Part Number: 720572171808
Pilot Hole: 0.160 - 0.164
Product Type: Multi-Grip Blind Rivets
Rivet Diameter: (#5) 5/32" (.156)
Size Type: Regular
System of Measurement: Inch
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Resources Rivet Size Chart

Select Size/SKU & Quantity

1 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
5-2 Thru 5-4, #5-32 MultiGrip (0.047-0.276) 1814-004-0002	1 $0.07 ($0.07/ea) 100 $5.00 ($0.05/ea) 1000 $40.00 ($0.04/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium / Steel Mandrel, #5-2 thru #5-4 (.047-.276 MultiGrip)- $0.00
