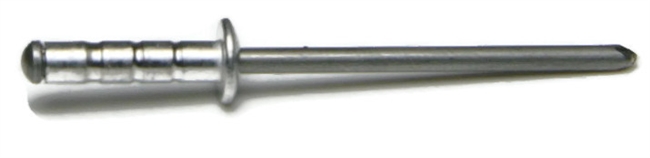

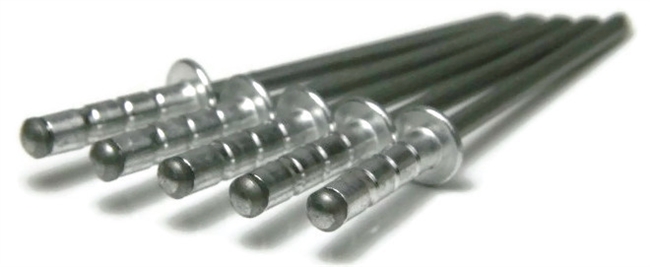

POP Rivets, Multi-Grip, Aluminium, 4-3/4-5, 1/8" x .586 (.196 - .330 MultiGrip)

POP Rivet, or Blind Rivet, in Aluminum

1/8" or #4 (Rivet Sizing Chart)
Multi grip rivets can substitute conventional rivets
Have a grip range of different rivet sizes
One rivet has the equivalent for at least three rivet sizes
Used to join two materials together quickly
Aluminum rivets should never be used with stainless steel: Corrosion may occur

Product number: 1810-002-0012

Print this page

Specifications

Color: Silver
Condition: New
Diameter: 1/8"
Drill (Hole) Size: #30
Head Type: Dome Head (Rivet)
Rivet Diameter Facet: #4 (1/8")
Flange Diameter Nominal: 0.25
Head Height Max: 0.041
Head Style: Dome
Mandrel Diameter Nominal: 0.076
Material: Aluminum
Nominal Size: #4
Other: Multi Grip
Part Number: 720572158021
Pilot Hole: 0.129 - 0.133
Product Type: Multi-Grip Blind Rivets
Rivet Diameter: (#4) 1/8" (.125)
Size Type: Regular
System of Measurement: Inch
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Resources Rivet Size Chart

Select Size/SKU & Quantity

1 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
4-3 thru 4-5, 1/8" MultiGrip (0.196 - 0.330) 1810-002-0012	1 $0.07 ($0.07/ea) 100 $5.00 ($0.05/ea) 1000 $40.00 ($0.04/ea)	Quantity for POP Rivets, Multi-Grip, Aluminium, 4-3/4-5, 1/8" x .586 (.196 - .330 MultiGrip) $0.00
