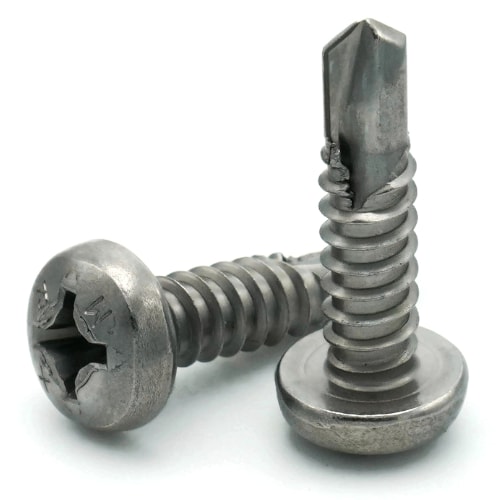

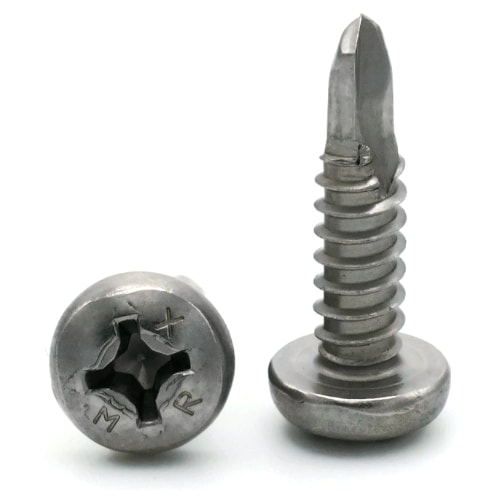

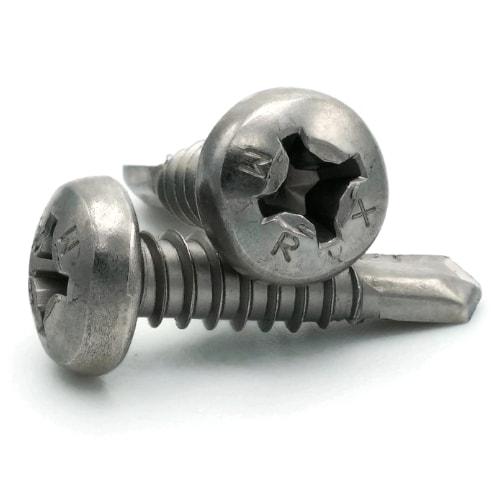

Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 1/2"

Premium Stainless Steel Self Drilling Screws

Highly corrosion resistant stainless steel alloy - comparable to 316 stainless steel
High hardness for fast and easy self drilling installation
Salt spray test - 500 hours

Ultra Stainless® self drilling screws are prized for their corrosion resistance and hardness. The proprietary alloy starts with 410 stainless steel, with added molybdenum for increased corrosion resistance comparable to 316 stainless steel.

Product number: 7150-006-002

Print this page

Specifications

ANSI: ANSI B18.6.4
Color: Gray
Corrosion Resistant: Yes
Diameter: #10
Drive Style: Phillips
Elongation: 30%
Head Type: Pan Head
Thread Direction: Right Hand
Thread Type: Coarse
Grade: Ultra Stainless®
Hardness: 40 Rockwell C
Head Diameter: Max 0.373 - Min 0.357
Head Style: Pan
Length: 1/2"
Marine Grade: Yes
Material: Stainless Steel
Other: Salt Spray Test - 500 hours
Phillips Drive: #2
Point Type: TEK
Product Type: Self Drilling Screws
Standards Met: ANSI B18.6.4
System of Measurement: Inch
TEK Self Drilling Point: TEK 3
Thread Direction: Right Hand
Thread Pitch: 16 Per Inch
Thread Size: #10-16
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Select Size/SKU & Quantity

5 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
#10-16 x 1/2" 7150-006-002	1 $1.14 ($1.14/ea) 100 $105.00 ($1.05/ea) 1000 $860.00 ($0.86/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 1/2" $0.00
#10-16 x 3/4" 7150-006-012	1 $1.41 ($1.41/ea) 100 $129.00 ($1.29/ea) 1000 $1,060.00 ($1.06/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 3/4" $0.00
#10-16 x 1" 7150-006-022	1 $1.68 ($1.68/ea) 100 $154.00 ($1.54/ea) 1000 $1,260.00 ($1.26/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 1" $0.00
#10-16 x 1-1/4" 7150-006-032	1 $1.80 ($1.80/ea) 100 $165.00 ($1.65/ea) 1000 $1,350.00 ($1.35/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 1-1/4" $0.00
#10-16 x 1-1/2" 7150-006-042	1 $1.95 ($1.95/ea) 100 $179.00 ($1.79/ea) 1000 $1,460.00 ($1.46/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Ultra Stainless Steel, #10 x 1-1/2" $0.00
