Metric Well Nuts, EPDM Rubber Brass Insert, M4-0.7 X 12.6MM

Flanged EPDM Insert With An Internal Metric Threaded Brass Nut

Creates a waterproof seal
Highly corrosion resistant - Marine Grade
Easy to install or remove
Can be installed into blind holes
Minimizes vibration and shocks

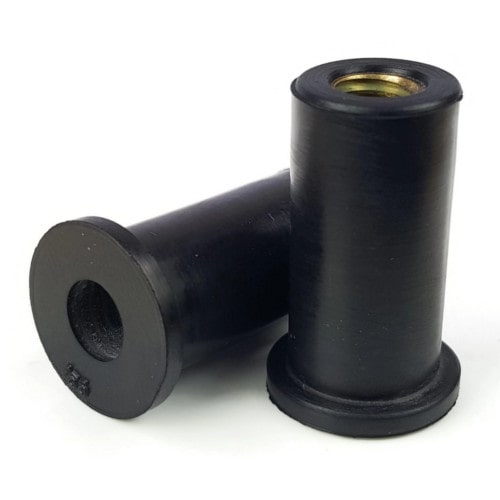

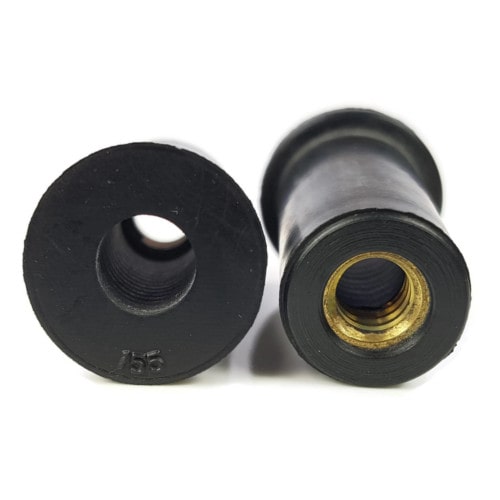

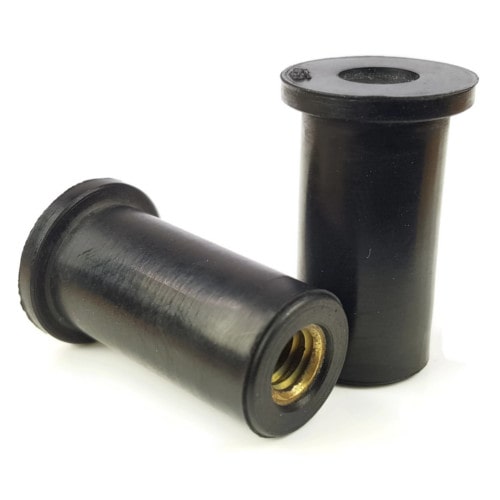

Metric Well nuts are a mostly rubber (EPDM) fastener with a hidden brass nut near the end. They have a flange on one end with a long barrel that is inserted into a hole. Metric Well nuts are a common choice for waterproofing holes where an attachment is needed. A metric well nut is also commonly referred to as a rawl nut, rawlnut, or a rubber rivet nut.

Well Nuts are a great choice to help prevent Galvanic Corrosion.

SKU	Thread Size	Grip Range	Hole Size (+.002/-.000)
1111-148-0012	M4-0.7	0.40mm - 4.00mm	7.90
1111-148-0022	M5-0.8	0.40mm - 4.90mm	9.60
1111-148-0032	M5-0.8	0.85mm - 5.90mm	9.60
1111-148-0042	M6-1.0	0.80m - 4.70mm	12.70

See More See Less

Play video

Well Nuts | Review & Installation | Fasteners 101 Demo

Product number: 1111-148-0012

Print this page

Specifications

Additional Sizing Info: Metric Well Nuts Cutsheet
Color: Black
Color May Vary: Color and sheen may vary
Corrosion Resistant: Yes
Diameter: M4
Thread Direction: Right Hand
Fit: 6H
Internal Thread: M4-0.7
Material: Neoprene EPDM Rubber / Brass
Product Type: Metric Well Nut
System of Measurement: Metric
Thread Direction: Right Hand
Thread Pitch: 0.70 mm
Thread Size: M4
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Select Size/SKU & Quantity

4 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
M4-0.70 X 12.6MM0.40mm - 4.0mm Grip 1111-148-0012	1 $0.55 ($0.55/ea) 100 $45.00 ($0.45/ea) 1000 $350.00 ($0.35/ea)	Quantity for Metric Well Nuts, EPDM Rubber Brass Insert, M4-0.7 X 12.6MM $0.00
M6-1.00 X 21.1MM0.08mm - 4.7mm Grip 1111-148-0042	1 $1.25 ($1.25/ea) 100 $110.00 ($1.10/ea) 1000 $800.00 ($0.80/ea)	Quantity for Metric Well Nuts, EPDM Rubber Brass Insert, M6-1.0 X 21.1MM $0.00
M5-0.80 X 14MM0.085mm - 5.9mm Grip 1111-148-0032	1 $0.60 ($0.60/ea) 100 $50.00 ($0.50/ea) 1000 $400.00 ($0.40/ea)	Quantity for Metric Well Nuts, EPDM Rubber Brass Insert, M5-0.8 X 14MM $0.00
M5-0.80 X 14.1MM0.40mm - 4.9mm Grip 1111-148-0022	1 $0.55 ($0.55/ea) 100 $45.00 ($0.45/ea) 1000 $350.00 ($0.35/ea)	Quantity for Metric Well Nuts, EPDM Rubber Brass Insert, M5-0.8 X 14.1MM $0.00
