Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M16 (16.2M ID x 27.4M OD x 3.5 Thick)

Medium Profile Split Ring Lock Washers - Metric Sizes

Split Ring Lock Washers, also referred to as Spring Lock Washers, are circular washers split at a certain point to create a helical shape.

Applies force between the head of a bolt or screw and the installation surface
Creates a resistance to rotation and prevents nuts, bolts and screws from vibrating loose
Durable and long lasting
Industry standard A2 Stainless steel

Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

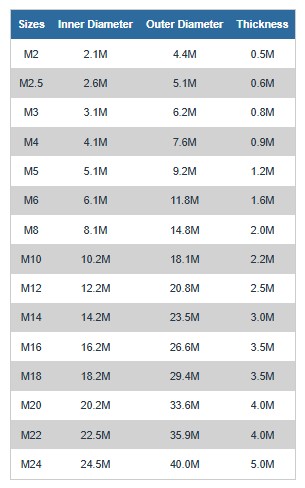

Sizes	Inner Diameter	Outer Diameter	Thickness
M2	2.1M	4.4M	0.5M
M2.5	2.6M	5.1M	0.6M
M3	3.1M	6.2M	0.8M
M4	4.1M	7.6M	0.9M
M5	5.1M	9.2M	1.2M
M6	6.1M	11.8M	1.6M
M8	8.1M	14.8M	2.0M
M10	10.2M	18.1M	2.2M
M12	12.2M	20.8M	2.5M
M14	14.2M	23.5M	3.0M
M16	16.2M	26.6M	3.5M
M18	18.2M	29.4M	3.5M
M20	20.2M	33.6M	4.0M
M22	22.5M	35.9M	4.0M
M24	24.5M	40.0M	5.0M

Product number: 5630102

Print this page

Specifications

Color: Silver
Corrosion Resistant: Yes
Diameter: M16
Grade: A2
Material: Stainless Steel
Outside Diameter (OD): 27.4mm
Part Number: 046737890354
Product Type: Lock Washer
System of Measurement: Metric
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Bolts, Screws & Nuts Gauge

Volume Pricing*

$9.00 ea.

$0.00

MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz.

Volume Pricing*

$20.03 ea.

$0.00

Select Size/SKU & Quantity

15 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
M2 5630002	1 $0.07 ($0.07/ea) 100 $2.00 ($0.02/ea) 1000 $10.00 ($0.01/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M2 (2.1M ID x 4.4M OD x 0.5 Thick) $0.00
M2.5 5630012	1 $0.07 ($0.07/ea) 100 $2.00 ($0.02/ea) 1000 $10.00 ($0.01/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M2.5 (2.6M ID x 5.1M OD x 0.6 Thick) $0.00
M3 5630022	1 $0.07 ($0.07/ea) 100 $2.00 ($0.02/ea) 1000 $10.00 ($0.01/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M3 (3.1M ID x 6.2M OD x 0.8 Thick) $0.00
M4 5630032	1 $0.07 ($0.07/ea) 100 $2.00 ($0.02/ea) 1000 $10.00 ($0.01/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M4 (4.1M ID x 7.6M OD x 0.9 Thick) $0.00
M5 5630042	1 $0.07 ($0.07/ea) 100 $2.00 ($0.02/ea) 1000 $10.00 ($0.01/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M5 (5.1M ID x 9.2M OD x 1.2 Thick) $0.00
M6 5630052	1 $0.07 ($0.07/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M6 (6.1M ID x 11.8M OD x 1.6 Thick) $0.00
M8 5630062	1 $0.12 ($0.12/ea) 100 $6.00 ($0.06/ea) 1000 $50.00 ($0.05/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M8 (8.1M ID x 14.8M OD x 2.0 Thick) $0.00
M10 5630072	1 $0.13 ($0.13/ea) 100 $7.00 ($0.07/ea) 1000 $60.00 ($0.06/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M10 (10.2M ID x 18.1M OD x 2.2 Thick) $0.00
M12 5630082	1 $0.21 ($0.21/ea) 100 $14.00 ($0.14/ea) 1000 $130.00 ($0.13/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M12 (12.2M ID x 24.1M OD x 2.5 Thick) $0.00
M14 5630092	1 $0.36 ($0.36/ea) 100 $29.00 ($0.29/ea) 1000 $240.00 ($0.24/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M14 (14.2M ID x 25.1M OD x 3.0 Thick) $0.00
M16 5630102	1 $0.48 ($0.48/ea) 100 $37.00 ($0.37/ea) 1000 $320.00 ($0.32/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M16 (16.2M ID x 27.4M OD x 3.5 Thick) $0.00
M18 5630112	1 $0.51 ($0.51/ea) 100 $39.00 ($0.39/ea) 1000 $340.00 ($0.34/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M18 (18.2M ID x 29.4M OD x 3.5 Thick) $0.00
M20 5630122	1 $1.29 ($1.29/ea) 100 $98.00 ($0.98/ea) 1000 $960.00 ($0.96/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M20 (20.2M ID x 33.6M OD x 4.0 Thick) $0.00
M22 5630132	1 $1.30 ($1.30/ea) 100 $99.00 ($0.99/ea) 1000 $970.00 ($0.97/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M22 (22.5M ID x 35.9M OD x 4.0 Thick) $0.00
M24 5630142	1 $1.31 ($1.31/ea) 100 $107.00 ($1.07/ea) 1000 $980.00 ($0.98/ea)	Quantity for Metric Lock Washers, Split Ring, Stainless Steel A2 (18-8), M24 (24.5M ID x 40.0M OD x 5.0 Thick) $0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.

Page Total: $0.00
