1/8" (#4) Multi-Grip POP Rivet Aluminium

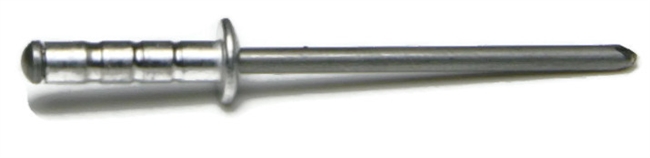

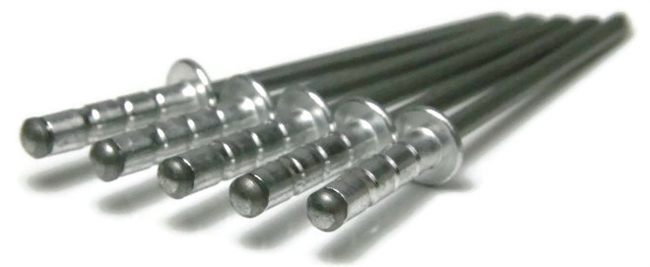

1/8" Aluminum Multi Grip Open End Dome Head Blind POP Rivets

POP Rivet, or Blind Rivet, in Aluminum


  • 1/8" or #4 (Rivet Sizing Chart)
  • Multi grip rivets can substitute conventional rivets
  • Have a grip range of different rivet sizes
  • One rivet has the equivalent for at least three rivet sizes
  • Used to join two materials together quickly
  • Aluminum rivets should never be used with stainless steel: Corrosion may occur
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
POP Rivet Aluminium - 4-3/4-5, 1/8" x .586 (.196 - .330 MultiGrip)
SKU #1810-002-0012
POP Rivet Aluminium - 4-3/4-5, 1/8" x .586 (.196 - .330 MultiGrip)
SKU #1810-002-0012
1
$0.07 (0.07/ea)
100
$5.00 (0.05/ea)
1000
$40.00 (0.04/ea)
Subtotal: $0.00 /




Product Specifications
Color
Silver
Drill (Hole) Size
#30
Flange Diameter Nominal
0.25
Head Height Max
0.041
Head Style
Dome
Mandrel Diameter Nominal
0.076
Material
Aluminum
Other
Multi Grip
Pilot Hole
0.129 - 0.133
Product Type
Blind Rivets
Rivet Diameter
(#4) 1/8" (.125)
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
