Flat Washers, Extra Thick, Grade 8 Yellow Zinc

Flat Washers, Extra Thick, Grade 8 Yellow Zinc

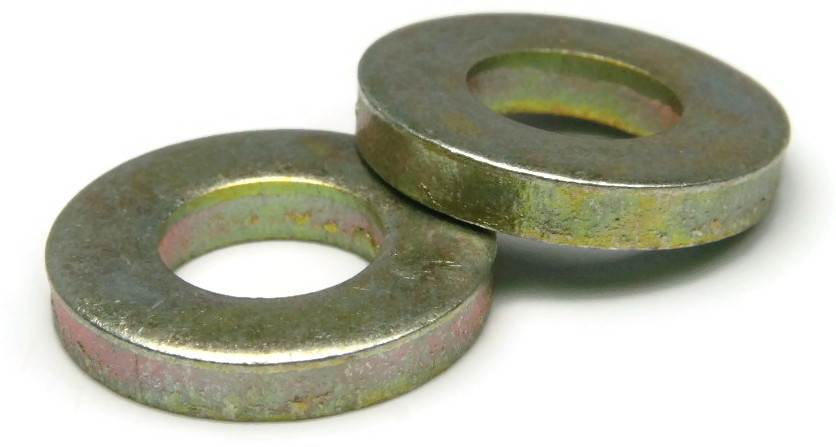

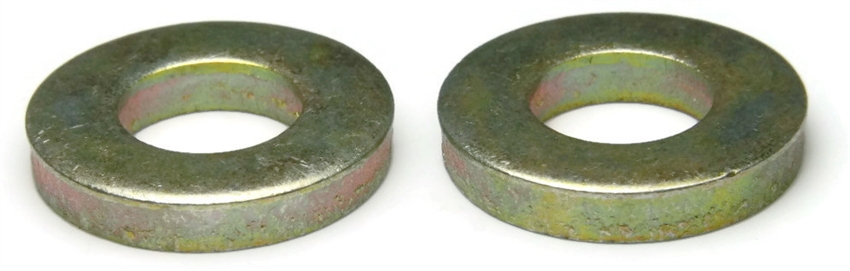

Hardened Flat Washers in Grade 8 Yellow Zinc Plated Steel

  • Grade 8 extra thick flat washers are made to distribute extra pressure from fasteners
  • Less likely to damage the material
  • Used to distribute loads of threaded fasteners
  • Grade 8 yellow zinc is corrosion resistant
  • Can act as spacers on a fastener
  • Commonly used on:
    • Decks
    • Docks
    • Large Timber Projects
  • REACH and RoHS Compliant
  • Made in the USA

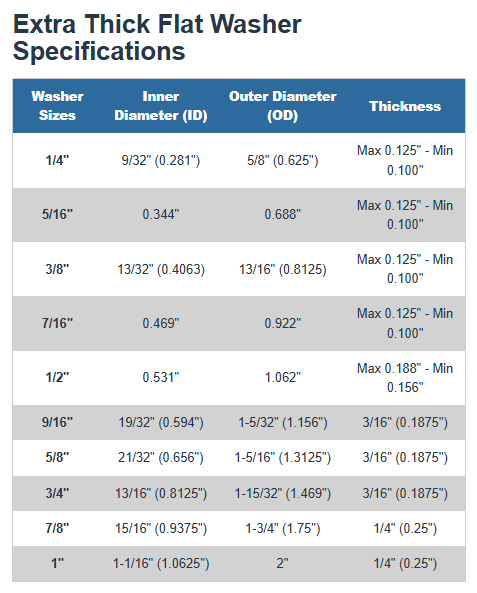

Extra Thick Flat Washer Specifications

Washer Sizes Inner Diameter (ID) Outer Diameter (OD) Thickness
1/4" 9/32" (0.281") 5/8" (0.625") Max 0.125" - Min 0.100"
5/16" 0.344" 0.688" Max 0.125" - Min 0.100"
3/8" 13/32" (0.4063) 13/16" (0.8125) Max 0.125" - Min 0.100"
7/16" 0.469" 0.922" Max 0.125" - Min 0.100"
1/2" 0.531" 1.062" Max 0.188" - Min 0.156"
9/16" 19/32" (0.594") 1-5/32" (1.156") 3/16" (0.1875")
5/8" 21/32" (0.656") 1-5/16" (1.3125") 3/16" (0.1875")
3/4" 13/16" (0.8125") 1-15/32" (1.469") 3/16" (0.1875")
7/8" 15/16" (0.9375") 1-3/4" (1.75") 1/4" (0.25")
1" 1-1/16" (1.0625") 2" 1/4" (0.25")
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
1/4"
SKU #1090-070-0002
1 $0.17 (0.17/ea)
100 $11.00 (0.11/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00 /
5/16"
SKU #1090-072-0002
1 $0.20 (0.2/ea)
100 $13.00 (0.13/ea)
1000 $110.00 (0.11/ea)
Subtotal: $0.00 /
3/8"
SKU #1090-074-0002
1 $0.29 (0.29/ea)
100 $20.00 (0.2/ea)
1000 $170.00 (0.17/ea)
Subtotal: $0.00 /
7/16"
SKU #1090-076-0002
1 $0.34 (0.34/ea)
100 $22.00 (0.22/ea)
1000 $200.00 (0.2/ea)
Subtotal: $0.00 /
1/2"
SKU #1090-078-0002
1 $0.61 (0.61/ea)
100 $40.00 (0.4/ea)
1000 $360.00 (0.36/ea)
Subtotal: $0.00 /
9/16"
SKU #1090-080-0002
1 $0.72 (0.72/ea)
100 $47.00 (0.47/ea)
1000 $430.00 (0.43/ea)
Subtotal: $0.00 /
5/8"
SKU #1090-082-0002
1 $0.96 (0.96/ea)
100 $64.00 (0.64/ea)
1000 $570.00 (0.57/ea)
Subtotal: $0.00 /
3/4"
SKU #1090-084-0002
1 $1.61 (1.61/ea)
100 $100.00 (1/ea)
1000 $960.00 (0.96/ea)
Subtotal: $0.00 /
7/8"
SKU #1090-086-0002
1 $2.58 (2.58/ea)
100 $172.00 (1.72/ea)
1000 $1,500.00 (1.5/ea)
Subtotal: $0.00 /
1"
SKU #1090-088-0002
1 $3.69 (3.69/ea)
100 $245.00 (2.45/ea)
1000 $2,200.00 (2.2/ea)
Subtotal: $0.00 /

Frequently Used With

Bolts, Screws & Nuts Gauge
Bolts, Screws & Nuts Gauge 1050-200
Bolts, Screws & Nuts Gauge
Fastener Measuring Gauge Nuts, Bolts Washers & Screws Measuring & Identification Tool
Our Price: $9.00
Subtotal: $0.00
MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz.
MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz. 1050-106
MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz.
MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz. Prevent Fastener Galling & Locking Up with Anti-Seize Lubricants
Our Price: $18.11
Subtotal: $0.00
Product Specifications
Product Specifications
Finish
Yellow Zinc Plated
Grade
8
Material
Steel
Rivet Diameter
#REF!
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
