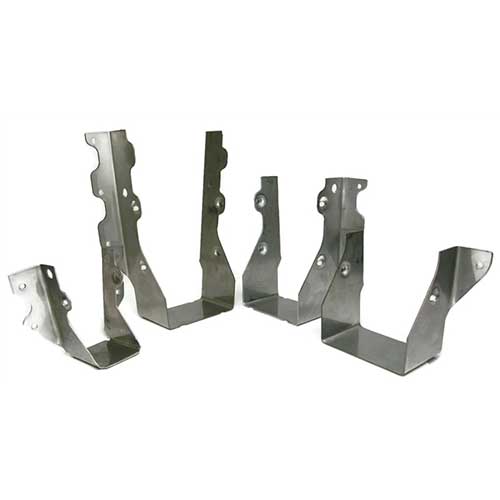

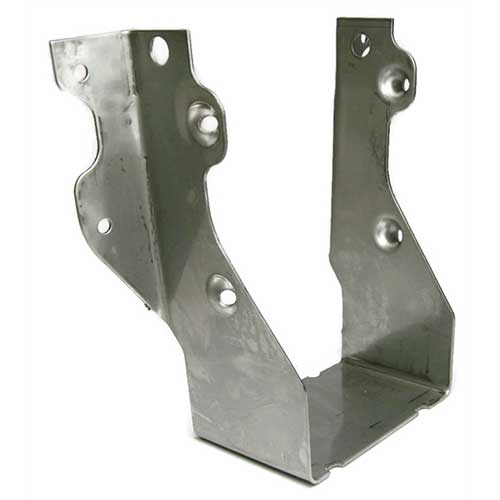

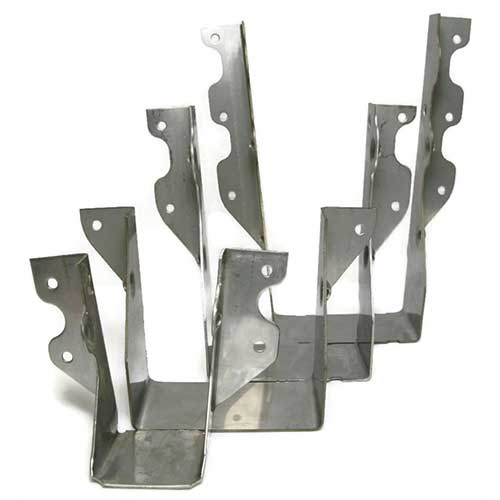

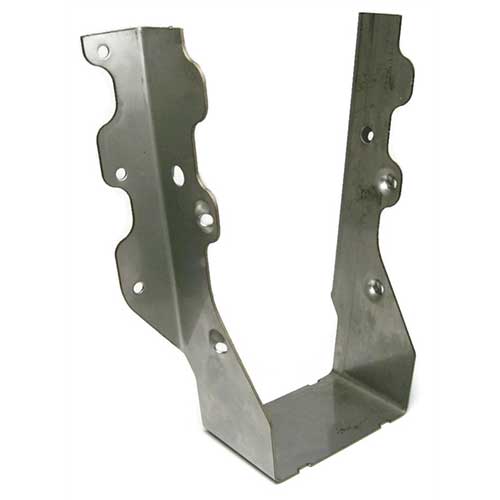

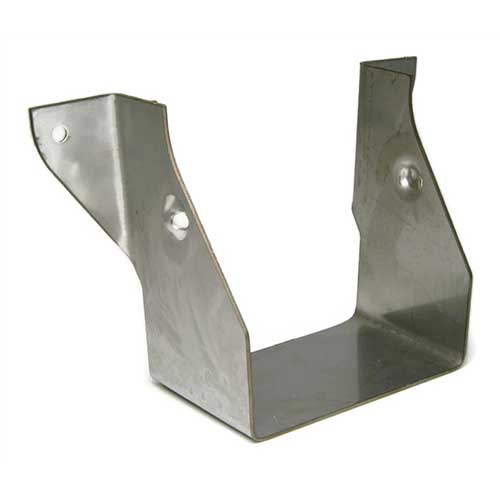

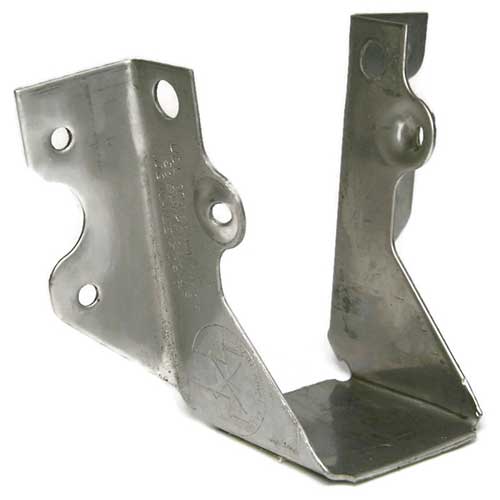

Deck Framing Standard Joist Hangers, Stainless Steel 316, 2" x 10" (Double)
316 Stainless Steel
- Used to help form the floor of decks
- Wrap around 3 sides of a joist
- Height of joist hanger must match the depth of the joist
- The number of holes dictate the number of nails expected on install
- 316 Stainless Steel
- Perfect for harsh or marine environments
- Single Sizes: for standard sized joists
- Double Sizes: for thicker beams or 2 joists set up side by side
- Only use nails when installing joist hangers
- Ensure joist nails are the same grade as the joist hangers
Joist Hangers are framing connectors attached to the ends of wood or timber joists to the ledger board.
| Joist Hanger Size / Type: | 2 x 4 / Single | 2 x 4 / Double | 2 x 6 / Single | 2 x 6 / Double | 2 x 8 / Single | 2 x 8 / Double | 2 x 10 / Single | 2 x 10 / Double |
| Manufacturer Part Number: | JUS24 | JUS24-2 | JUS26 | JUS26-2 | JUS28 | JUS28-2 | JUS210 | JUS210-2 |
| Simpson Part Number: | LUS24 | LUS24-2 | LUS26 | LUS26-2 | LUS28 | LUS28-2 | LUS210 | LUS210-2 |
| Dimensions (Width): | 1-9/16" | 3-1/8" | 1-9/16" | 3-1/8" | 1-9/16" | 3-1/8" | 1-9/16" | 3-1/8" |
| Dimensions (Height): | 3-1/8" | 3-7/16" | 4-13/16" | 5-1/4" | 6-5/8" | 7-1/8" | 7-3/4" | 9-1/8" |
| Dimensions (Depth): | 1-3/4" | 2" | 1-3/4" | 2" | 1-3/4" | 2" | 1-3/4" | 2" |
| Floor Load (Lbs.): | 675 | 805 | 870 | 1040 | 1110 | 1325 | 1350 | 1845 |
| Uplift Load (Lbs.): | 510 | 325 | 1115 | 1355 | 1115 | 1355 | 1115 | 1980 |
| Steel Gauge: | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Material: | 316 Stainless Steel | |||||||
.JPG)
Product number:
6120-002-0058
