POP Rivets, Closed End, Stainless Steel 304, 6-8, 3/16" x .781 (.376 - .500 Grip)

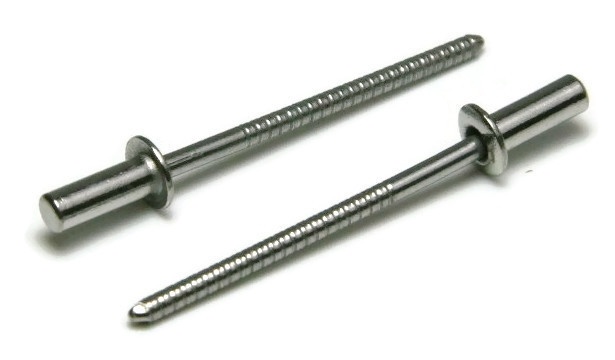

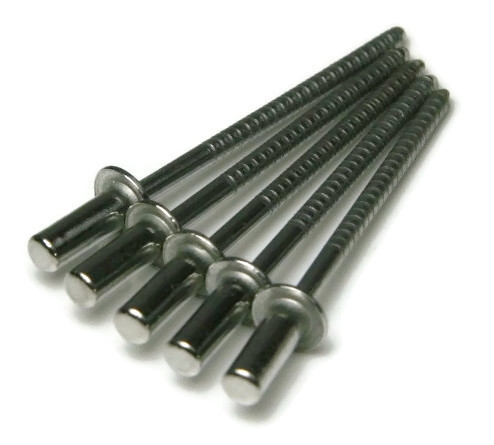

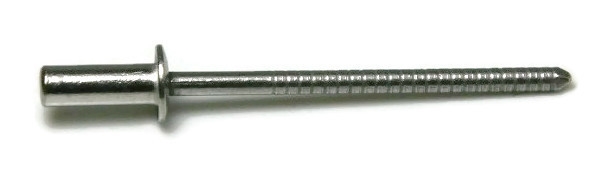

POP Rivets, or Blind Rivets, in 304 Stainless Steel

3/16" or #6CE (Rivet Sizing Chart)
Connect materials quickly and efficiently
Create a watertight seal
Tubular - comprised of hat and mandrel
Mandrel is removed during installation

Stainless Steel Closed End Blind Rivet Spec Sheet

Product number: 1806-004-0032

Print this page

Specifications

Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: 3/16"
Drill (Hole) Size: #11
Head Type: Dome Head (Rivet)
Rivet Diameter Facet: #6 (3/16")
Grade: 304
Head Height Max: 0.06
Head Diameter: 0.375
Head Style: Dome
Material: Stainless Steel
Nominal Size: #6
Other: Closed End
Part Number: 720572156263
Product Type: Closed End Blind Rivets
Rivet Diameter: (#6) 3/16" (.187)
Size Type: Regular
Standards Met: IFI 114
System of Measurement: Inch
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Resources Rivet Sizing Chart Stainless Closed End Rivet Specs

Select Size/SKU & Quantity

7 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
6-2, 3/16" x 1/8" Grip (0.020 - 0.125) 1806-004-0002	1 $0.45 ($0.45/ea) 100 $31.00 ($0.31/ea) 1000 $280.00 ($0.28/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-2, 3/16" x .406 (.020 - .125 Grip) $0.00
6-3, 3/16" x 0.468" Grip (0.126-0.187) 1806-004-0005	1 $0.37 ($0.37/ea) 100 $29.00 ($0.29/ea) 1000 $200.00 ($0.20/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-3, 3/16" x .468 (0.126 - 0.187 Grip) $0.00
6-4, 3/16" x 1/4" Grip (0.188 - 0.250) 1806-004-0012	1 $0.45 ($0.45/ea) 100 $31.00 ($0.31/ea) 1000 $280.00 ($0.28/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-4, 3/16" x .531 (.188 - .250 Grip) $0.00
6-6, 3/16" x 3/8" Grip (0.251 - 0.375) 1806-004-0022	1 $0.56 ($0.56/ea) 100 $37.00 ($0.37/ea) 1000 $330.00 ($0.33/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-6, 3/16" x .656 (.251 - .375 Grip) $0.00
6-8, 3/16" x 1/2" Grip (0.376 - 0.500) 1806-004-0032	1 $0.61 ($0.61/ea) 100 $42.00 ($0.42/ea) 1000 $380.00 ($0.38/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-8, 3/16" x .781 (.376 - .500 Grip) $0.00
6-10, 3/16" x 5/8" Grip (0.501 - 0.625) 1806-004-0052	1 $0.42 ($0.42/ea) 100 $39.00 ($0.39/ea) 1000 $350.00 ($0.35/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-10, 3/16" x .625 (.500 - .625 Grip) $0.00
6-12, 3/16" x 3/4" Grip (0.626-0.750) 1806-004-0062	1 $0.45 ($0.45/ea) 100 $41.00 ($0.41/ea) 1000 $380.00 ($0.38/ea)	Quantity for POP Rivets, Closed End, Stainless Steel 304, 6-12, 3/16" x .750 (.626 - .750 Grip) $0.00
