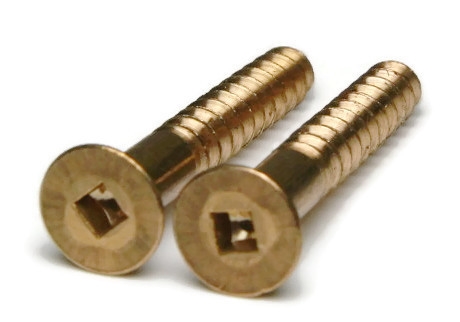

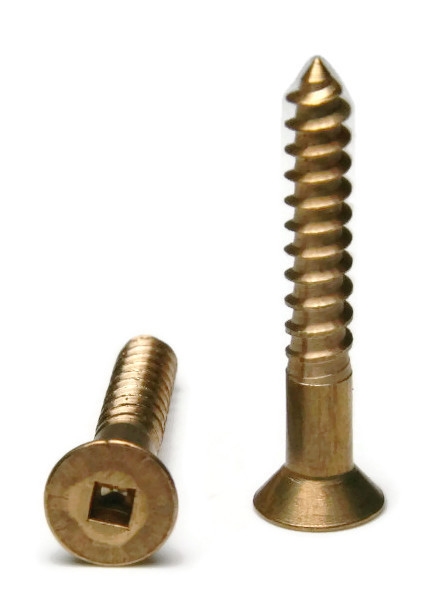

#14-10 Silicon Bronze Square Drive Flat Head Wood Screws
Diameter - Thread Pitch: #14-10
#14 Silicon Bronze square drive flat head wood screws are designed to hold two pieces of wood together tightly and efficiently.
- Partially threaded with a shoulder
- Designed to slide through top piece of wood and provide a strong hold
- Features a countersunk and undercut head
- Silicon Bronze is used in marine, corrosive and high heat environments
Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.
Sizes Listed As:
Diameter x Length from Top of Head
Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Bronze
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Diameter
#14
Drive Style
Internal Square
Head Diameter
Max 0.507 - Min 0.452
Head Height
Ref. 0.153
Head Style
Flat
Marine Grade
Yes
Material
Silicon Bronze
Product Type
Wood Screws
Square Drive
#2
System of Measurement (Unit)
Inch
Thread Diameter
(#14) Max 0.246 - Min 0.235
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
