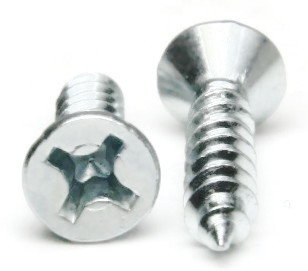

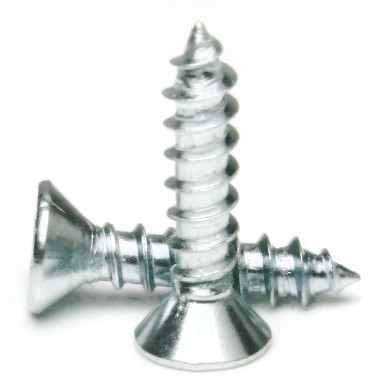

#12-11 Phillips Flat Head Wood Screws Zinc Plated Steel

#12-11 Zinc Plated Phillips Flat Head Wood Screws

Diameter - Thread Pitch: #12-11

#12 Zinc Plated Phillips flat head wood screws are designed to hold two pieces of wood together tightly and efficiently.

  • Partially threaded with a shoulder
  • Designed to slide through top piece of wood and provide a strong hold
  • Features a countersunk and undercut head
  • Phillips Drive
  • Zinc plating adds a layer of corrosion resistance
  • Not recommended for external use
REACH and RoHS Compliant

Sizes Listed As:
Diameter x Length from Top of Head

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Flat Head Wood Screws Zinc - #12 x 1"
SKU #3192000-0002
Phillips Flat Head Wood Screws Zinc - #12 x 1"
SKU #3192000-0002
1
 NA
25
 $4.25 (0.17/ea)
100
 $10.00 (0.1/ea)
1000
 $80.00 (0.08/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Phillips Power Bits - #3 - Length 2"
Phillips Power Bits - #3 - Length 2" 1050-500-0021
Phillips Power Bits - #3 - Length 2
1
 $1.04 (1.04/ea)
10
 $8.10 (0.81/ea)
25
 $19.50 (0.78/ea)
50
 $38.00 (0.76/ea)
Subtotal: $0.00 /
ACR Phillips Power Bits - #3 x 2"
ACR Phillips Power Bits - #3 x 2" 1050-802-0032
ACR Phillips Power Bits - #3 x 2
1
 $2.98 (2.98/ea)
10
 $27.10 (2.71/ea)
25
 $65.25 (2.61/ea)
50
 $117.50 (2.35/ea)
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.
Color
Silver
Countersink
82 Degree
Diameter
#12
Drive Style
Phillips
Finish
Zinc Plated
Head Diameter
Max 0.438 - Min 0.389
Head Height Max
0.132
Head Style
Flat
Material
Steel
Overall Head Height
Max 0.132 - Min 0.112
Phillips Drive
#3
Product Type
Wood Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#12) Max 0.220 - Min 0.209
Thread Diameter Minor
(#12) Max 0.189 - Min 0.178
Thread Direction
Right Hand
Thread Pitch (Count)
11 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
