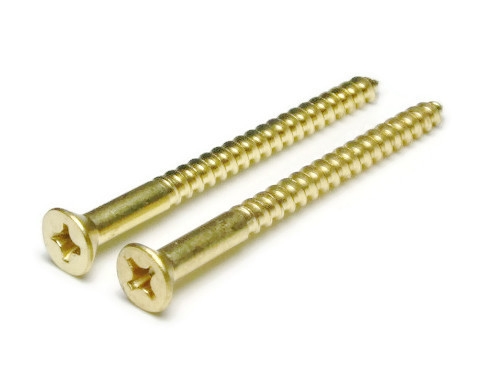

#4-22 Brass Phillips Flat Head Wood Screws
Diameter - Thread Pitch: #4-22
#4-22 Brass Phillips flat head wood screws are designed to hold two pieces of wood together tightly and efficiently.
- Partially threaded with a shoulder
- Designed to slide through top piece of wood and provide a strong hold
- Features a countersunk and undercut head
- Runs flush with installation surface
- Prized for its corrosion resistance, however it is quite soft so it is not suitable for all applications
- Conducts heat and electricity
Sizes Listed As:
Diameter x Length from Top of Head
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Application
Wood
Color
Yellow
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Countersink
82 Degree
Drive Style
Phillips
Head Diameter
Max 0.225 - Min 0.195
Head Height
Ref. 0.067
Head Style
Flat
Intended Work Material
Wood
Material
Brass
Overall Head Height
Max 0.067 - Min 0.055
Phillips Drive
#1
Product Type
Phillips Flat Head Wood Screw
System of Measurement (Unit)
Inch
Thread Diameter Major
(#4) Max 0.116 - Min 0.105
Thread Diameter Minor
(#4) Max 0.100 - Min 0.089
Thread Direction
Right Hand
Thread Pitch (Count)
22 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
