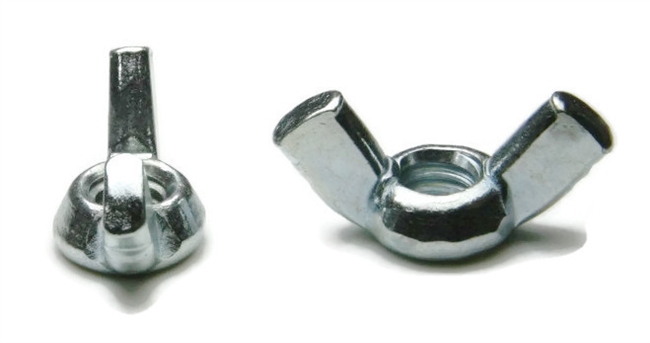

Wing Nuts Zinc Plated Steel

Zinc Plated Wing Nuts

Manually Installed Nuts in CR+3 Zinc Plated Grade 2 Steel

  • Made for projects that don't require tools
  • Install with just your fingers
  • Two protuding "wings"
  • Can be referred to as either a Wingnut or Wing Nut
  • Commonly used where frequent adjustments is required
  • CR+3 Zinc Plated Steel
  • Sized listed below as: Internal Diameter - Thread Pitch
Nut Sizes Wing Span Thickness
#6 Max 0.72" - Min 0.59" Max 0.11" - Min 0.07"
#8 Max 0.91" - Min 0.78" Max 0.14" - Min 0.10"
#10 Max 0.91" - Min 0.78" Max 0.14" - Min 0.10"
1/4" Max 1.10" - Min 0.97" Max 0.18" - Min 0.14"
5/16" Max 1.25" - Min 1.12" Max 0.21" - Min 0.17"
3/8" Max 1.44" - Min 1.31" Max 0.24" - Min 0.20"
7/16" Max 1.94" - Min 1.81" Max 0.33" - Min 0.26"
1/2" Max 1.94" - Min 1.81" Max 0.33" - Min 0.26"
5/8" 2.770" REF 0.352" REF
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Wing Nuts Zinc Plated Steel - #6-32
SKU #1102-088-0002
Wing Nuts Zinc Plated Steel - #6-32
SKU #1102-088-0002
1
 NA
25
 $2.25 (0.09/ea)
100
 $6.00 (0.06/ea)
1000
 $50.00 (0.05/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - #8-32
SKU #1102-088-0012
Wing Nuts Zinc Plated Steel - #8-32
SKU #1102-088-0012
1
 NA
25
 $2.25 (0.09/ea)
100
 $6.00 (0.06/ea)
1000
 $50.00 (0.05/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - #10-24
SKU #1102-088-0022
Wing Nuts Zinc Plated Steel - #10-24
SKU #1102-088-0022
1
 NA
25
 $2.75 (0.11/ea)
100
 $10.00 (0.1/ea)
1000
 $90.00 (0.09/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - #10-32
SKU #1102-088-0032
Wing Nuts Zinc Plated Steel - #10-32
SKU #1102-088-0032
1
 NA
25
 $2.75 (0.11/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 1/4"-20
SKU #1102-088-0042
Wing Nuts Zinc Plated Steel - 1/4"-20
SKU #1102-088-0042
1
 NA
25
 $3.25 (0.13/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 5/16"-18
SKU #1102-088-0052
Wing Nuts Zinc Plated Steel - 5/16"-18
SKU #1102-088-0052
1
 NA
25
 $4.50 (0.18/ea)
100
 $12.00 (0.12/ea)
1000
 $100.00 (0.1/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 3/8"-16
SKU #1102-088-0062
Wing Nuts Zinc Plated Steel - 3/8"-16
SKU #1102-088-0062
1
 NA
25
 $6.25 (0.25/ea)
100
 $16.00 (0.16/ea)
1000
 $140.00 (0.14/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 7/16"-14
SKU #1102-088-0072
Wing Nuts Zinc Plated Steel - 7/16"-14
SKU #1102-088-0072
1
 NA
25
 $20.00 (0.8/ea)
100
 $65.00 (0.65/ea)
1000
 $550.00 (0.55/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 1/2"-13
SKU #1102-088-0082
Wing Nuts Zinc Plated Steel - 1/2"-13
SKU #1102-088-0082
1
 NA
25
 $12.50 (0.5/ea)
100
 $46.00 (0.46/ea)
1000
 $420.00 (0.42/ea)
Subtotal: $0.00 /
Wing Nuts Zinc Plated Steel - 5/8"-11
SKU #1102-088-0092
Wing Nuts Zinc Plated Steel - 5/8"-11
SKU #1102-088-0092
1
 $2.86 (2.86/ea)
25
 $65.00 (2.6/ea)
100
 $203.00 (2.03/ea)
1000
 $1,730.00 (1.73/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Drive Style
Hand
Finish
Zinc Plated
Grade
2
Material
Steel
Product Type
Wing Nut
Standards Met
REACH, RoHS
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
