5/16"-18 Thread Insert for Metal 303 Stainless Steel #303-5 US Coarse

5/16"-18 Stainless Steel Threaded Inserts for Metal

E-Z Lok Number | Internal Thread Size: #303-5 | 5/16"-18

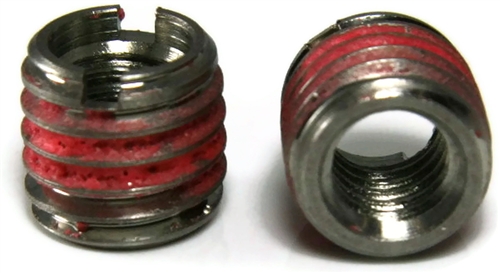

5/16"-18 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.

  • Use of standard taps for installation
  • No special tools are required
  • For Metal
  • Drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Stainless Steel Solid wall inserts are commonly used in maintenance departments and in tool cribs, as well as in the molding and metalworking industries and are a quick and simple solution for reinforcing or repairing holes in soft metals.


Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Thread Insert 303 SS #303-5 US Coarse - 5/16"-18 x 0.484
SKU #11740002
Thread Insert 303 SS #303-5 US Coarse - 5/16"-18 x 0.484
SKU #11740002
1
$7.95 (7.95/ea)
10
$78.90 (7.89/ea)
100
$782.00 (7.82/ea)
1000
$7,810.00 (7.81/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Subtotal: $0.00 /
1
$17.43 (17.43/ea)
5
$71.15 (14.23/ea)
10
$137.20 (13.72/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
5/16"
Drill (Hole) Size
27/64"
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
1/2"-13
EZ Lok Drive Took
500-4
Grade
303
Head Style
No Head
Insert Length
0.484
Internal Thread
5/16"-18
Manufacturer Part Number
303-5
Material
Stainless Steel
Other
Minimum Full Thread Depth: 0.563
Pilot Hole
27/64"
Product Type
Thread Insert
System of Measurement (Unit)
Inch
Tap Size
1/2"-13
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
