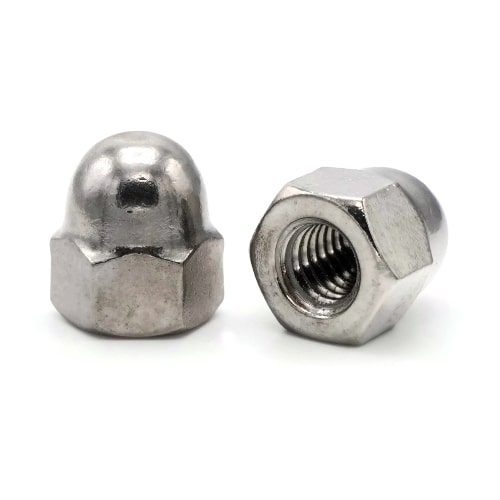

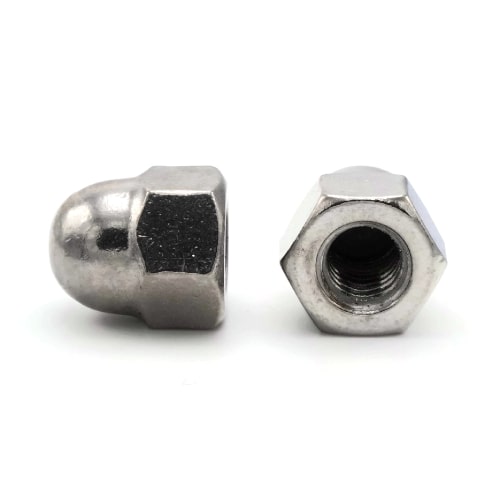

Stainless Steel High Crown Cap Acorn Nuts
Extra Deep Acorn / Cap Nuts in 18-8 Stainless Steel

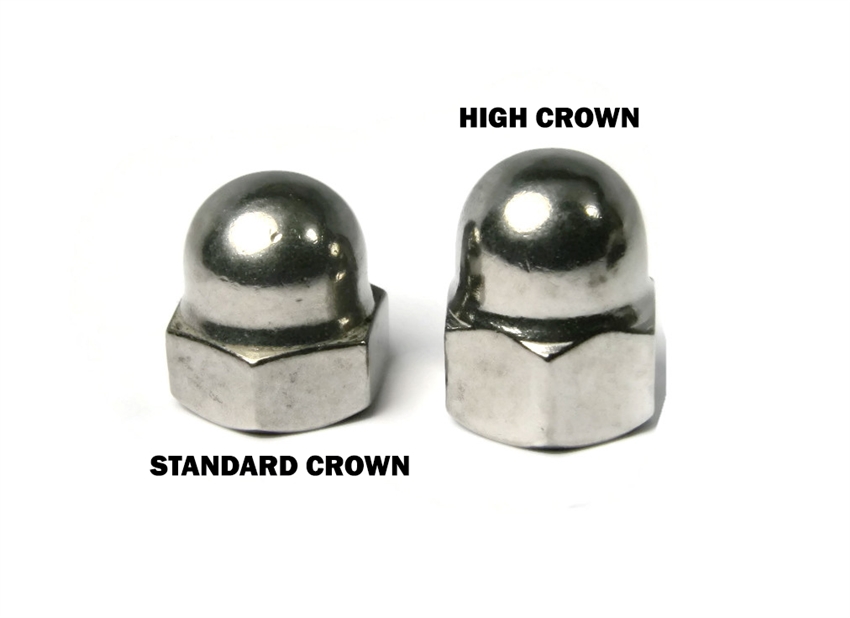

- High Crown
- Hex nut with a closed end
- Domed thread to protect external thread
- Most Popular style
- Easily Removable
- Aesthetic finished look
- Also known as an Acorn Nut, Cap Nut, or Dome Nut
- Safe for applications where exposed to moisture
| Nut Sizes | Width Across Flats | Height |
| #10-24 | 0.365" REF | 0.518" REF |
| #10-32 | 0.365" REF | 0.518" REF |
| 1/4"-20 | 0.430" REF | 0.584" REF |
| 5/16"-18 | 0.555" REF | 0.624" REF |
| 3/8"-16 | 0.619" REF | 0.751" REF |
| 1/2"-13 | 0.742" REF | 0.951" REF |
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Drive Style
External Hex
Grade
18-8
Material
Stainless Steel
Product Type
High Crown Cap / Acorn Nut
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
