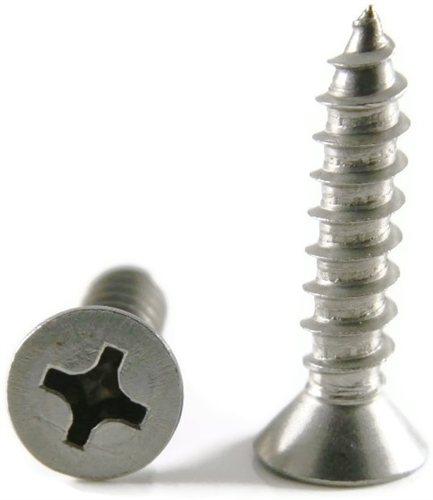

Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 1-3/4"

Diameter - Thread Pitch: #12-11

#12-11
Fully threaded
Cut into wood, plastic or sheet metal with ease
Cutting threads for a better hold
Great for attaching metal hardware to wood
316 Stainless steel Phillips flat head sheet metal screws are corrosion resistant and considered the industry standard
316 Stainless steel is recommended over 18-8 for saltwater and other harsh environments
NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove

Type A Sheet Metal Screw Thread Specifications

Product number: 6012-012-010

Print this page

Specifications

ANSI: ANSI B18.6.4
Color: Silver
Corrosion Resistant: Yes
Countersink: 82 Degree
Diameter: #12
Drive Style: Phillips
Head Type: Flat Head
Thread Direction: Right Hand
Thread Type: Coarse
Grade: 316
Hardness: 100 Rockwell B
Head Height Max: 0.132
Head Diameter: Max 0.438 - Min 0.389
Head Style: Flat
Length: 1-3/4"
Marine Grade: Yes
Material: Stainless Steel
Overall Head Height: Max 0.132 - Min 0.112
Part Number: 3351006 720572114553
Phillips Drive: #3
Point Type: A
Product Type: Sheet Metal Screws
Reduction: 0.4
Standards Met: ANSI B18.6.4
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 11 Per Inch
Thread Size: #12-11
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI: 55,000 - 75,000 PSI

Select Size/SKU & Quantity

8 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
#12-14 x 3/4" 6012-012-002	1 $0.35 ($0.35/ea) 100 $25.00 ($0.25/ea) 1000 $230.00 ($0.23/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 3/4" $0.00
#12-14 x 1" 6012-012-004	1 $0.38 ($0.38/ea) 100 $29.00 ($0.29/ea) 1000 $260.00 ($0.26/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 1" $0.00
#12-14 x 1-1/4" 6012-012-006	1 $0.42 ($0.42/ea) 100 $31.00 ($0.31/ea) 1000 $280.00 ($0.28/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 1-1/4" $0.00
#12-14 x 1-1/2" 6012-012-008	1 $0.49 ($0.49/ea) 100 $37.00 ($0.37/ea) 1000 $330.00 ($0.33/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 1-1/2" $0.00
#12-11 x 1-3/4" 6012-012-010	1 $0.50 ($0.50/ea) 100 $39.00 ($0.39/ea) 1000 $360.00 ($0.36/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 1-3/4" $0.00
#12-14 x 2" 6012-012-012	1 $0.57 ($0.57/ea) 100 $44.00 ($0.44/ea) 1000 $390.00 ($0.39/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 2" $0.00
#12-14 x 2-1/2" 6012-012-014	1 $0.79 ($0.79/ea) 100 $62.00 ($0.62/ea) 1000 $560.00 ($0.56/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 2-1/2" $0.00
#12-14 x 3" 6012-012-016	1 $0.87 ($0.87/ea) 100 $69.00 ($0.69/ea) 1000 $610.00 ($0.61/ea)	Quantity for Sheet Metal Screws, Phillips Flat Head, Stainless Steel 316, #12 x 3" $0.00
