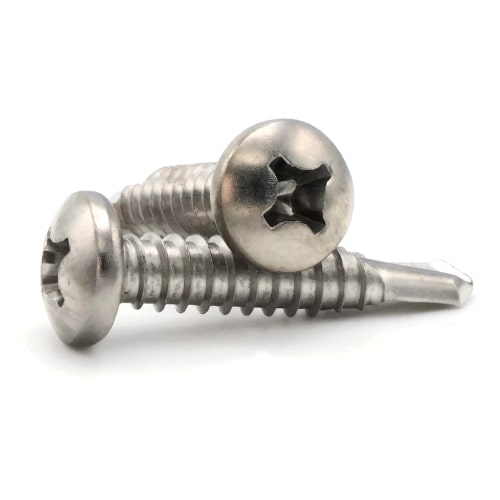

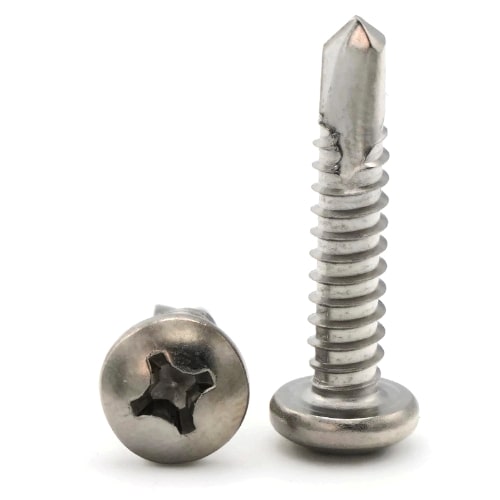

#10-16 Phillips Pan Head Self Driller TEK 3 410 Stainless Steel

#10-16 Stainless Steel Phillips Pan Head Self Drilling Screws

Diameter - Thread Pitch: #10-16

  • #10-16
  • Self drilling point (TEK)
  • Pierce 20 to 14 gauge metals
  • Fully threaded
  • Threads cut into material
  • Great for attaching metal equipment to wood
  • Strong retention in wood
  • Sizes listed below as: Diameter - Length
  • 410 Stainless steel is harder than most materials easing the installation process
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#10-16 x 1/2"
SKU #3480002
#10-16 x 1/2"
SKU #3480002
1 $0.19 (0.19/ea)
100 $11.00 (0.11/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00 /
#10-16 x 5/8"
SKU #3480012
#10-16 x 5/8"
SKU #3480012
1 $0.27 (0.27/ea)
100 $17.00 (0.17/ea)
1000 $140.00 (0.14/ea)
Subtotal: $0.00 /
#10-16 x 3/4"
SKU #3480022
#10-16 x 3/4"
SKU #3480022
1 $0.23 (0.23/ea)
100 $13.00 (0.13/ea)
1000 $110.00 (0.11/ea)
Subtotal: $0.00 /
#10-16 x 1"
SKU #3480032
#10-16 x 1"
SKU #3480032
1 $0.26 (0.26/ea)
100 $14.00 (0.14/ea)
1000 $120.00 (0.12/ea)
Subtotal: $0.00 /
#10-16 x 1-1/4"
SKU #3480042
#10-16 x 1-1/4"
SKU #3480042
1 $0.28 (0.28/ea)
100 $16.00 (0.16/ea)
1000 $140.00 (0.14/ea)
Subtotal: $0.00 /
#10-16 x 1-1/2"
SKU #3480052
#10-16 x 1-1/2"
SKU #3480052
1 $0.32 (0.32/ea)
100 $18.00 (0.18/ea)
1000 $150.00 (0.15/ea)
Subtotal: $0.00 /
#10-16 x 2"
SKU #3480062
#10-16 x 2"
SKU #3480062
1 $0.38 (0.38/ea)
100 $21.00 (0.21/ea)
1000 $180.00 (0.18/ea)
Subtotal: $0.00 /
#10-16 x 2-1/2"
SKU #3480072
#10-16 x 2-1/2"
SKU #3480072
1 $0.61 (0.61/ea)
100 $35.00 (0.35/ea)
1000 $300.00 (0.3/ea)
Subtotal: $0.00 /
#10-16 x 3"
SKU #3480082
#10-16 x 3"
SKU #3480082
1 $0.68 (0.68/ea)
100 $41.00 (0.41/ea)
1000 $350.00 (0.35/ea)
Subtotal: $0.00 /

Frequently Used With

Phillips Power Bits - #2 - Length 2"
Phillips Power Bits - #2 - Length 2" 1050-500-0016
Phillips Power Bits - #2 - Length 2
1 $1.04 (1.04/ea)
10 $8.10 (0.81/ea)
50 $38.00 (0.76/ea)
Subtotal: $0.00
ACR Phillips Power Bits - #2 x 2"
ACR Phillips Power Bits - #2 x 2" 1050-802-0022
ACR Phillips Power Bits - #2 x 2
1 $1.06 (1.06/ea)
10 $10.00 (1/ea)
50 $48.00 (0.96/ea)
Subtotal: $0.00
Neoprene EPDM Washers 18/8 SS - #10 (OD .50)
Neoprene EPDM Washers 18/8 SS - #10 (OD .50) 1030012
Neoprene EPDM Washers 18/8 SS - #10 (OD .50)
1 $0.12 (0.12/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00
Product Specifications
Product Specifications
ANSI
ANSI B18.6.4
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Phillips
Driver Max RPM
2,300
Grade
410
Hardness
40 Rockwell C
Head Diameter
Max 0.373 - Min 0.357
Head Height Max
0.11
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.110 - Min 0.099
Phillips Drive
#2
Point Type
TEK
Product Type
Self Drilling Screws
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK 3 (0.353)
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
(#10) 0.189"
Thread Diameter Minor
(#10) 0.141"
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
