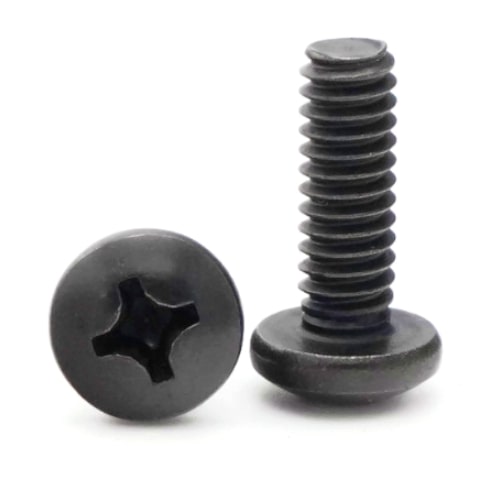

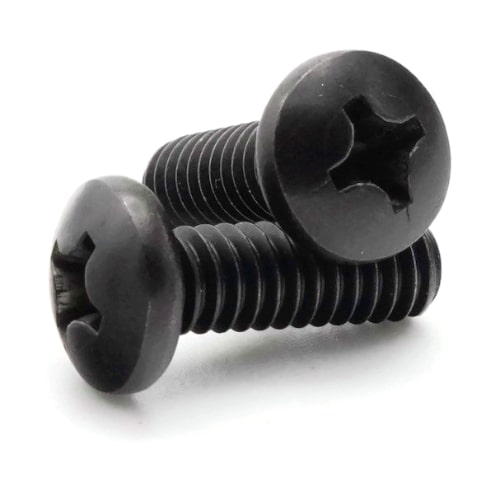

#2-56 Phillips Pan Head Machine Screw Black Oxide 18-8 Stainless Steel

#2-56 Black Stainless Steel Phillips Pan Head Machine Screws

Diameter - Thread Pitch: #2-56


#2-56 Black Oxide Phillips Pan Head Machine Screws are 18-8 Stainless steel screws coated in a black oxide finish.

  • Used mostly for metal applications
  • Complies with military standards as a Class 4 finish
  • ASME Standards Specific
  • Black oxide coating provides a sleek black look
  • Commonly used for:
    • Drawer Slides
    • Machinery
    • Automotive
    • Gun Builds

Select Products Below
Product Specifications
ANSI
B18.6.3
Body Diameter
#2 (Max 0.0854 - Min 0.0813)
Color
Black
Corrosion Resistant
Yes
Drive Style
Phillips
Finish
Black Oxide
Fit
Class 2A
Head Diameter
Max 0.167 - Min 0.155
Head Style
Pan
Material
Black Oxide 18-8 Stainless Steel
Overall Head Height
Max 0.053 - Min 0.045
Phillips Drive
#1
Product Type
Phillips Pan Head Machine Screw
Standards Met
ANSI B1.1, ANSI B18.6.3
Thread Direction
Right Hand
Thread Pitch (Count)
56 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
