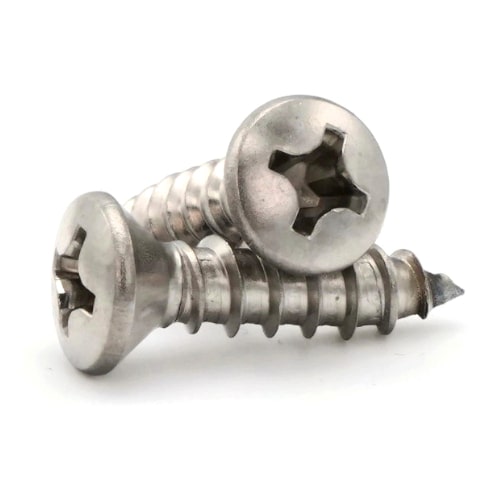

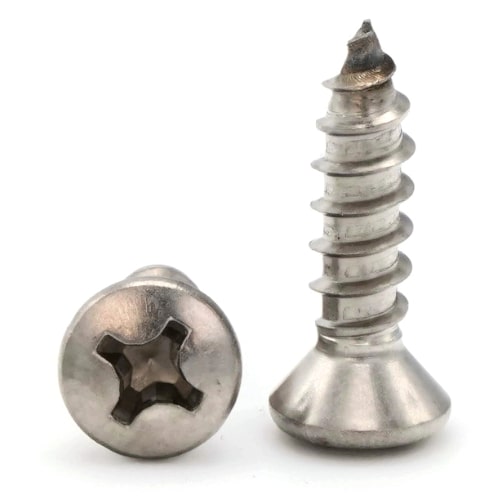

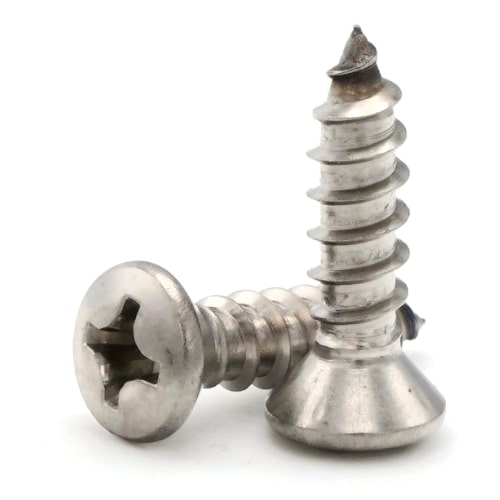

#4-24 Phillips Oval Head Sheet Metal Screws 18-8 Stainless Steel

#4-24 Stainless Steel Phillips Oval Head Sheet Metal Screws

Diameter - Thread Pitch: #4-24

  • #4-24
  • Raised decorative head
  • Notched at the tip to aid in chip removal
  • Threads cut into material for a stronger hold
  • 18-8 Stainless steel Phillips oval head sheet metal screws are rust resistant
  • 18-8 stainless steel is the industry standard
  • Sizes listed below as: Diameter - Thread Pitch
Type A Sheet Metal Screw Thread Specifications
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1/4"
SKU #3400001-02
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1/4"
SKU #3400001-02
1
 NA
25
 $4.25 (0.17/ea)
100
 $11.00 (0.11/ea)
1000
 $100.00 (0.1/ea)
Subtotal: $0.00 /
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 3/8"
SKU #3400002
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 3/8"
SKU #3400002
1
 NA
25
 $2.75 (0.11/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1/2"
SKU #3400012
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1/2"
SKU #3400012
1
 NA
25
 $2.75 (0.11/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 5/8"
SKU #3400022
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 5/8"
SKU #3400022
1
 NA
25
 $3.25 (0.13/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 3/4"
SKU #3400032
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 3/4"
SKU #3400032
1
 NA
25
 $3.25 (0.13/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1"
SKU #3400042
Phillips Oval Head Sheet Metal Screws 18-8 SS - #4 x 1"
SKU #3400042
1
 NA
25
 $4.00 (0.16/ea)
100
 $6.00 (0.06/ea)
1000
 $50.00 (0.05/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Phillips Power Bits - #1 - Length 2"
Phillips Power Bits - #1 - Length 2" 1050-500-0011
Phillips Power Bits - #1 - Length 2
1
 $1.04 (1.04/ea)
10
 $8.10 (0.81/ea)
25
 $19.50 (0.78/ea)
50
 $38.00 (0.76/ea)
Subtotal: $0.00 /
ACR Phillips Power Bits - #1 x 2"
ACR Phillips Power Bits - #1 x 2" 1050-802-0012
ACR Phillips Power Bits - #1 x 2
1
 $2.54 (2.54/ea)
10
 $22.80 (2.28/ea)
25
 $55.00 (2.2/ea)
50
 $99.50 (1.99/ea)
Subtotal: $0.00 /
Finishing Cup Washer 18-8 SS - #4
Finishing Cup Washer 18-8 SS - #4 11000202
Finishing Cup Washer 18-8 SS - #4
1
 NA
25
 $2.50 (0.1/ea)
100
 $7.00 (0.07/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /
Product Specifications
ANSI
ANSI B18.6.3
Color
Silver
Corrosion Resistant
Yes
Diameter
#4
Drive Style
Phillips
Elongation
30%
Grade
18-8
Hardness
100 Rockwell B
Head Diameter
Max 0.225 - Min 0.195
Head Height Max
0.104
Head Style
Oval
Material
Stainless Steel
Overall Head Height
Max 0.104 - Min 0.084
Phillips Drive
#1
Point Type
A
Product Type
Sheet Metal Screws
Reduction
40%
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Diameter Major
(#4) 0.114 - 0.110
Thread Diameter Minor
(#4) 0.083 - 0.078
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
