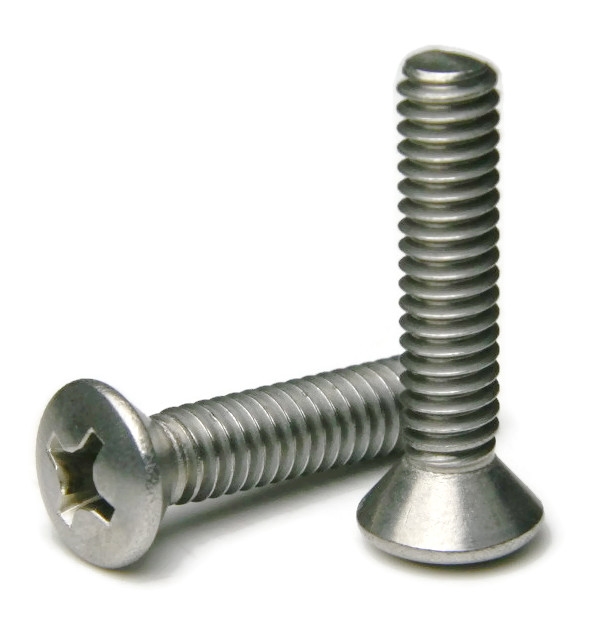

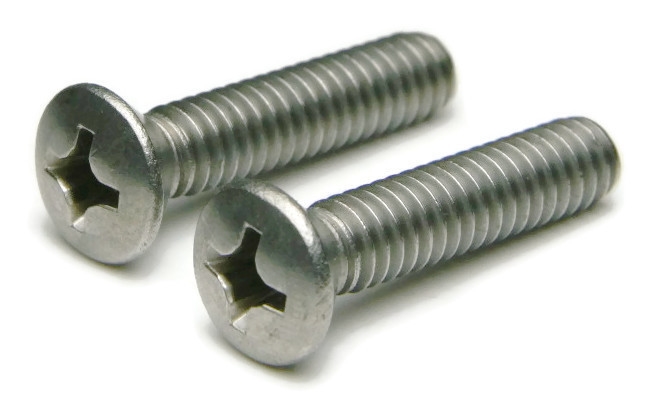

#8-32 Stainless Steel Phillips Oval Head Machine Screws
Diameter - Thread Pitch: #8-32
- Countersunk head with a raised domed top
- A machine screw is commonly identified by its small size
- Used either with a nut or in a pre-tapped hole
- Raised decorative head
- Used to secure materials that may be tampered with
- Ideal for freshwater moisture environments
- Rust and corrosion resistant
#8-32 Phillips drive oval head machine screws are available in grade 18-8 stainless steel.
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
ANSI
ANSI B1.1
Class
2A
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#8
Drive Style
Phillips
Fit
Class 2A
Grade
18-8
Head Diameter
Max 0.332 - Min 0.292
Head Height Max
0.152
Head Style
Oval
Material
Stainless Steel
Overall Head Height
Max 0.152 - Min 0.126
Phillips Drive
#2
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
