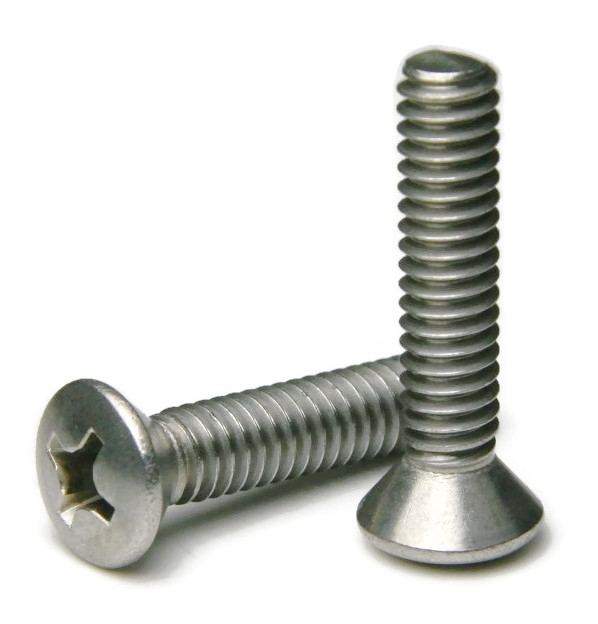

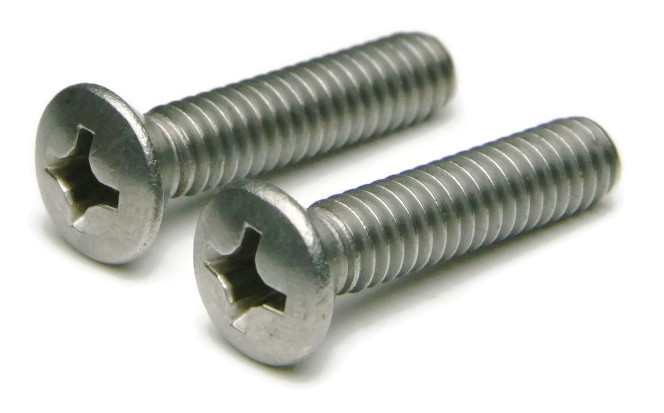

#10-24 Phillips Oval Head Machine Screw 18-8 Stainless Steel

#10-24 Stainless Steel Phillips Oval Head Machine Screws

Diameter - Thread Pitch: #10-24


  • Countersunk head with a raised domed top
  • Used either with a nut or in a pre-tapped hole
  • A machine screw is commonly identified by its small size
  • Raised decorative head
  • Used to secure materials that may be tampered with
  • Ideal for freshwater moisture environments
  • Rust and corrosion resistant

#10-24 Phillips drive oval head machine screws are available in grade 18-8 stainless steel.

Select Products Below
See Product Specifications
Size:
Qty
Size
Select Package Quantity
SubTotal
Loading ...
Product Specifications
ANSI
ANSI B1.1
Class
2A
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#10
Drive Style
Phillips
Fit
Class 2A
Grade
18-8
Head Diameter
Max 0.385 - Min 0.340
Head Height Max
0.176
Head Style
Oval
Material
Stainless Steel
Overall Head Height
Max 0.176 - Min 0.148
Phillips Drive
#2
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
